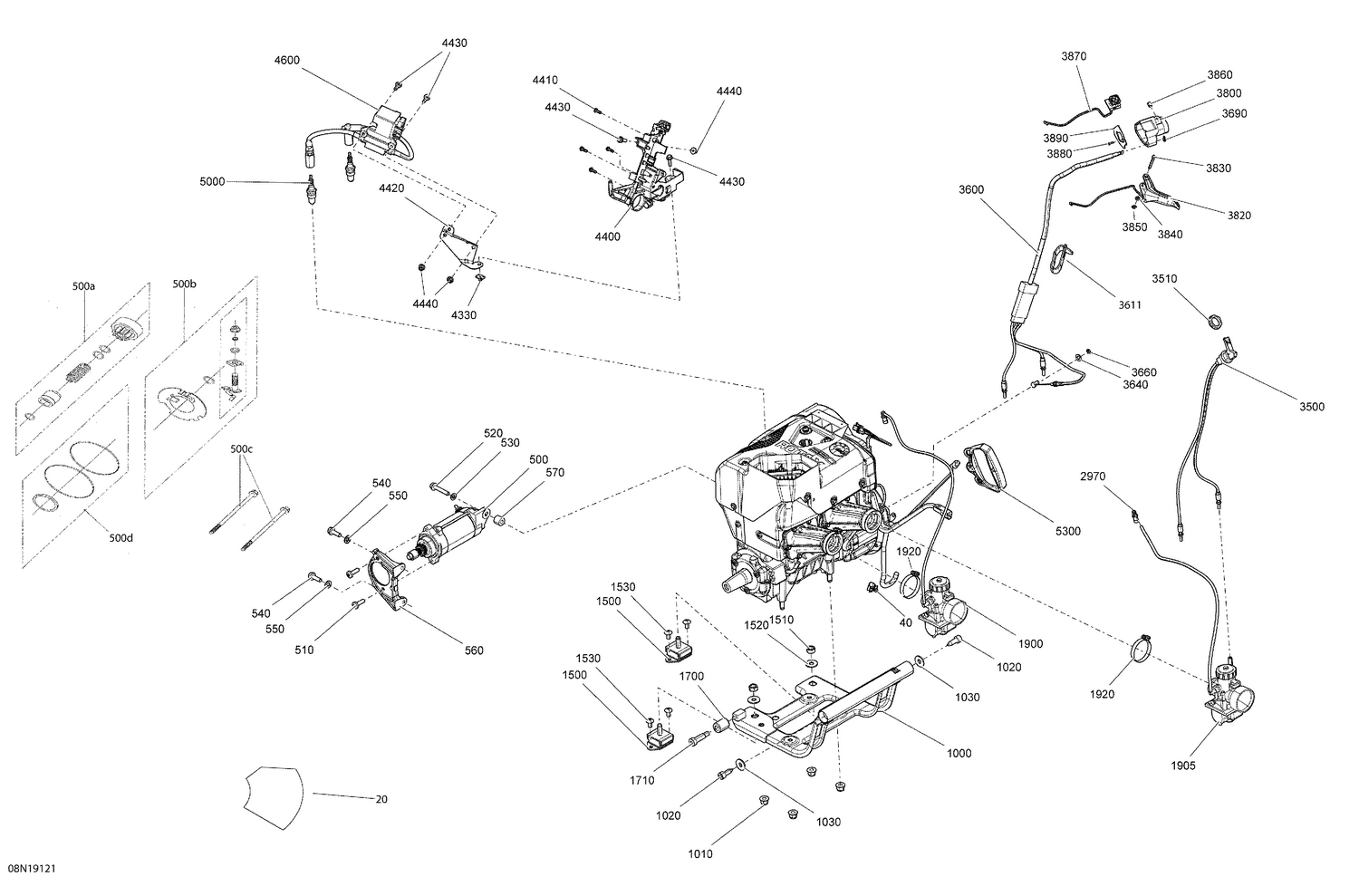

01- Engine - 550F
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 508000884 | Heat Shield |
| 40 | 515176795 | Tie Rap Mount (screwable) |
| 500a | 415129441 | Clutch Kit |
| 500b | 415129333 | Brush Kit |
| 500c | 415129341 | Starter Bolt |
| 500d | 415129342 | O-Ring Kit |
| 510 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 520 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 530 | 250200008 | Flat Washer With Teflon 8 mm |
| 540 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 550 | 234281474 | Conical Spring Washer M8 |
| 560 | 512060656 | Support |
| 570 | 515176597 | Spacer |
| 1000 | 512060637 | ENGINE SUPPORT ASS'Y - Call your local BRP dealership |
| 1010 | 233201414 | Hex. Flange Elastic Nut M10 |
| 1020 | 250000094 | Screw M10 X 30 |
| 1030 | 250200014 | Flat Washer M10 |
| 1500 | 512060564 | Rubber Mount |
| 1510 | 232500416 | Elastic Stop Nut M10 |
| 1520 | 250200014 | Flat Washer M10 |
| 1530 | 250000746 | Torx Truss Screw M8 X 16 |
| 1700 | 512060395 | Stopper |
| 1710 | 250000463 | Socket Head Screw, Scotch Grip |
| 1905 | 403138813 | Carburetor VM30-218, MAG |
| 1920 | 512059834 | Gemi Clamp |
| 2970 | 414814100 | Male Connector |
| 3500 | 512060676 | Choke Cable |
| 3510 | 512060671 | Plastic Nut |
| 3600 | 512060885 | Throttle Cable |
| 3611 | 293850117 | Rubber Strap |
| 3640 | 234081100 | Flat Washer 8 mm, Nylon |
| 3660 | 414753500 | Circlip |
| 3690 | 414274500 | Circlip |
| 3800 | 512060603 | Throttle Housing |
| 3820 | 512061251 | Handle Ass'y |
| 3830 | 414438700 | Lever Pin |
| 3840 | 234051600 | Flat Washer M5, Stainless |
| 3850 | 293370050 | Circlip |
| 3860 | 414440800 | Socket Set Screw M8 X 10 |
| 3870 | 515177362 | Emergency Stop Switch |
| 3880 | 250000756 | Torx Truss Screw M2 X 12 |
| 3890 | 512060390 | Plate |
| 4330 | 293100003 | Nut Welded, M6 |
| 4400 | 512060924 | Coils Support |
| 4410 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 4420 | 512060460 | Coils Support |
| 4430 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4440 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4600 | 512060324 | Calibrated Module |
| 5000 | 512059552 | Spark Plug NGK BR9ECS-5 |
