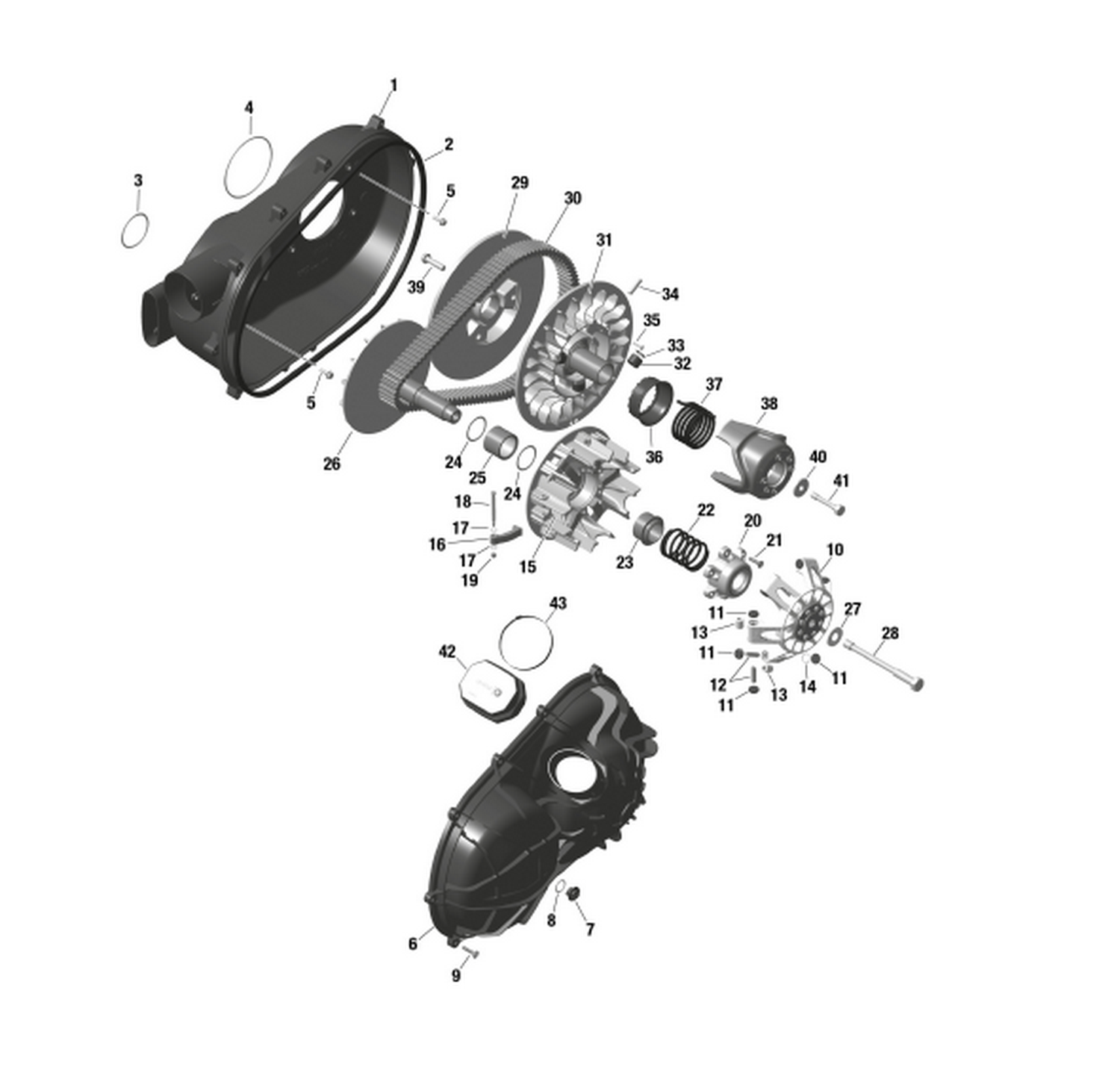

01- ROTAX - CVT
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420212604 | CVT Air Guide This part replaces 420212600. |
| 2 | 420450400 | Gasket |
| 3 | 420430409 | O-Ring This part replaces 420430408. |
| 4 | 420450431 | O-Ring |
| 5 | 420441311 | Hex.Screw M6 X 20 |
| 6 | 420212503 | Variator Cover |
| 7 | 420441820 | Cap |
| 8 | 420250052 | O-Ring |
| 9 | 420441575 | Torx Screw 6X30 |
| 10 | 420280746 | Governor Cup Ass'y |
| 11 | 420281296 | Slider Shoe Set |
| 12 | 417223257 | Roller Axle |
| 13 | 417223767 | Roller This part replaces 417223387. |
| 14 | 420230456 | O-Ring |
| 15 | 420280609 | Outer Half Ass'y |
| 17 | XXX | Not Available As Spare Parts |
| 18 | XXX | Not Available As Spare Parts |
| 19 | XXX | Not Available As Spare Parts |
| 20 | 420280615 | Bearing Cover Ass'y |
| 21 | 420841549 | Torx Flange Screw M6 X 25 |
| 22 | 420638119 | Compression Spring |
| 23 | 420427210 | Spring Seat |
| 24 | 420427220 | Washer |
| 25 | 420832351 | Needle Roller Bearing With Sleeves |
| 26 | 420280596 | Inner Half Ass'y |
| 27 | 420245690 | Washer |
| 28 | 420841161 | Hexagonal Screw M14X 165 |
| 29 | 420280636 | Sliding Pulley Ass'y |
| 30 | 422280656 | Drive Belt |
| 31 | 420280628 | Outer Half Ass'y |
| 32 | 417127016 | Pulley Roller |
| 33 | 420227946 | Thrust Washer |
| 34 | 420629192 | Bearing Pin |
| 35 | 420841531 | Torx Screw M4 X 20 |
| 36 | 420427805 | Spring Support |
| 37 | 420638124 | Compression Spring |
| 38 | 420280758 | Cam |
| 39 | 420841711 | Torx Flange Screw M10 X 40 |
| 40 | 420427243 | Collar Washer |
| 41 | 420441990 | Hexagonal Screw M10X 61 |
| 42 | 420201940 | Closure Cap |
