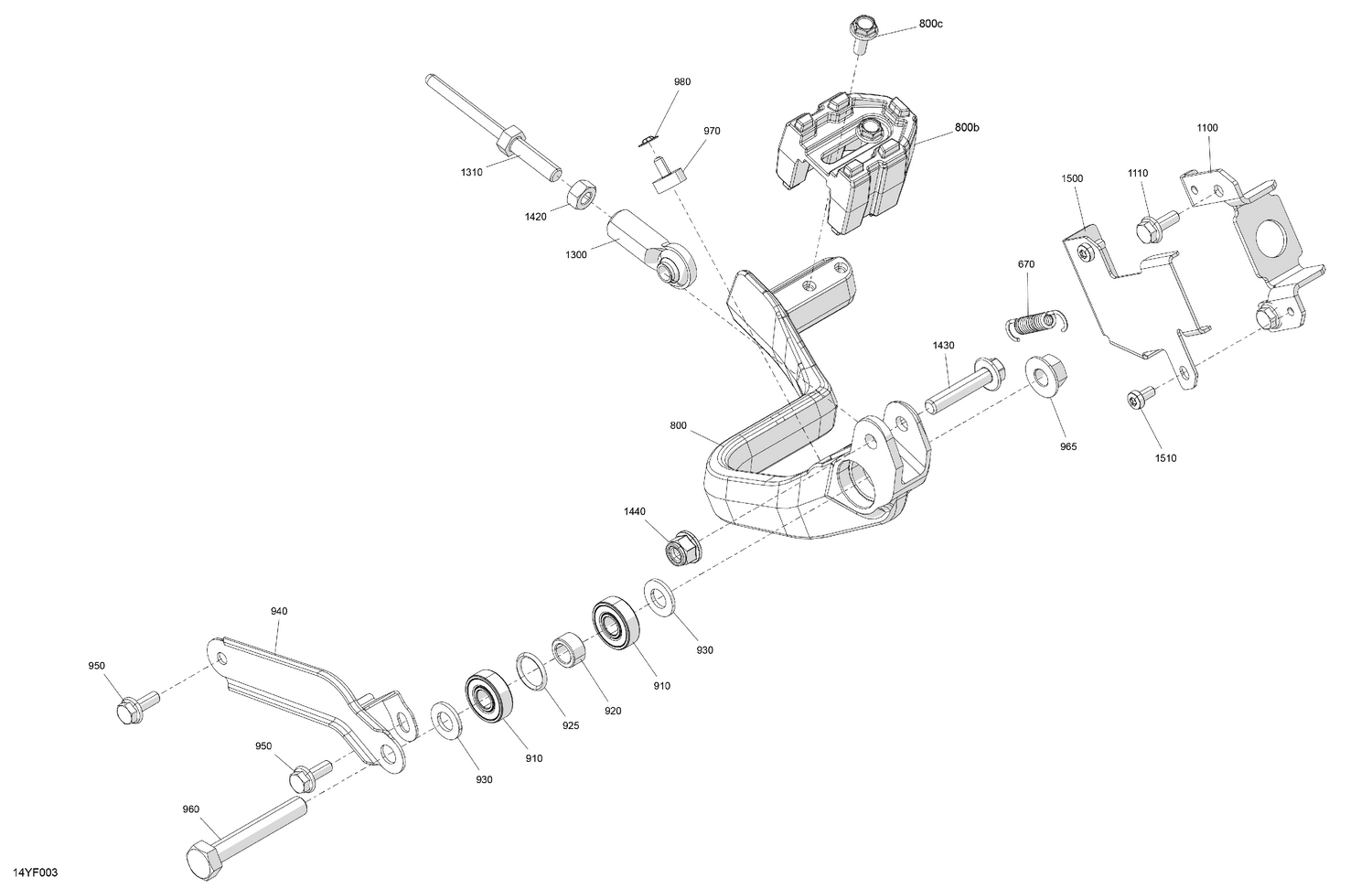

03- Mechanic - Brake Pedal
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 670 | 705602243 | Compression Spring |
| 800b | 705602245 | Pedal Tip |
| 800c | 250001362 | Hex.Flange Screw M6 X 16 |
| 910 | 705601974 | Ball Bearing |
| 920 | 705602003 | Spacer |
| 925 | 293300191 | O-Ring |
| 930 | 503183800 | Washer |
| 940 | 705602256 | Stopper Support |
| 950 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 960 | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 965 | 233101414 | Hex. Flange Nut M10 |
| 970 | 708003414 | Rubber Stopper |
| 980 | 250100034 | Push Nut |
| 1100 | 705602358 | Switch Support |
| 1110 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1300 | 705601506 | Rod End - Call your local BRP dealership |
| 1310 | 705600468 | Piston Rod |
| 1420 | 232081414 | Hex. Nut M8 |
| 1430 | 207684056 | Hex Flange Screw M8 X 40 |
| 1440 | 233281466 | Elastic Flange Nut M8 |
| 1500 | 705602357 | Heat Shield |
