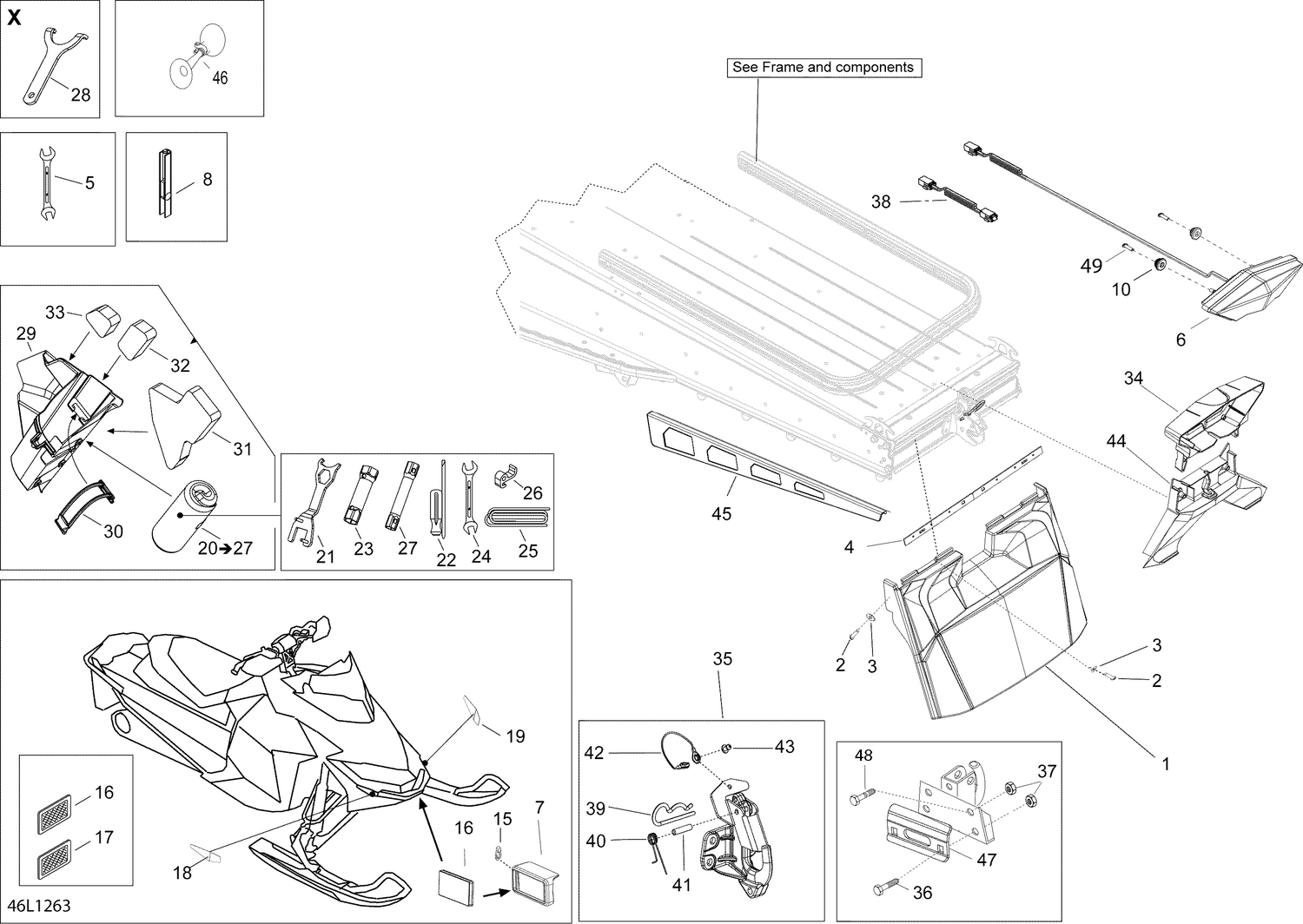

09- Utilities — Parts Catalog

Parts (44)

Ref	Part Number	Description
1	520000998	Snow Guard
2	250000676	Forming Screw M5 x 16 This part replaces 732600030.
3	517124300	Washer
4	520001020	Fastening plate
5	34017	Fork Wrench 17/19
6	520000848	Rear Light
7	520000871	Reflector Support
8	Not	Available As Spare Part - Tool Spacing
9	520000758	Bulb
10	705014429	Stopper_Rubber This part replaces 705003666.
15	27120	TIE RAP - Call your local BRP dealership
16	21118	Reflector (Bright)
17	705002423	Front Lateral Reflector, Amber
18	520000718	RH Front Reflector
19	520000719	LH Front Reflector
21	520000721	WRENCH - Call your local BRP dealership
22	529000004	SCREWDRIVER - Call your local BRP dealership
23	Not	Available As Spare Part - Socket Wrench 21/26 mm
24	529000002	FORK WRENCH, 10/13 MM - Call your local BRP dealership
25	412500200	Starter Rope, Meter
26	529000060	Starter Grip This part replaces 529019400.
27	Not	Available As Spare Part - Socket Wrench 16/18 mm
28	Not	Available As Spare Part - Adjustment Wrench
29	520000842	Tool Kit Rack
30	520000528	Latch
31	520001059	Foam This part replaces 520000743.
32	520001061	Foam This part replaces 520000753.
33	520001062	Foam This part replaces 520000754.
34	511000764	Rear Light Cover
35	520001774	Hitch Ass'y This part replaces 520001039.
36	207784044	Bolt Carriage M8 X 40
37	233281414	Hex. Flange Elastic Nut M8
38	515177032	Wiring harness extension
39	41029	Hair pin
40	545693	SPRING - Call your local BRP dealership
41	41012	Pin
42	293750069	Retainer Cable This part replaces 5446839.
43	390909100	Avex Rivet
44	511000559	Rear Light Support
45	520000693	RH Protector
45	520000694	LH Protector
46	549011291	Horn
47	520000727	Plate
48	207782544	Carriage Bolt, M8 X 25
