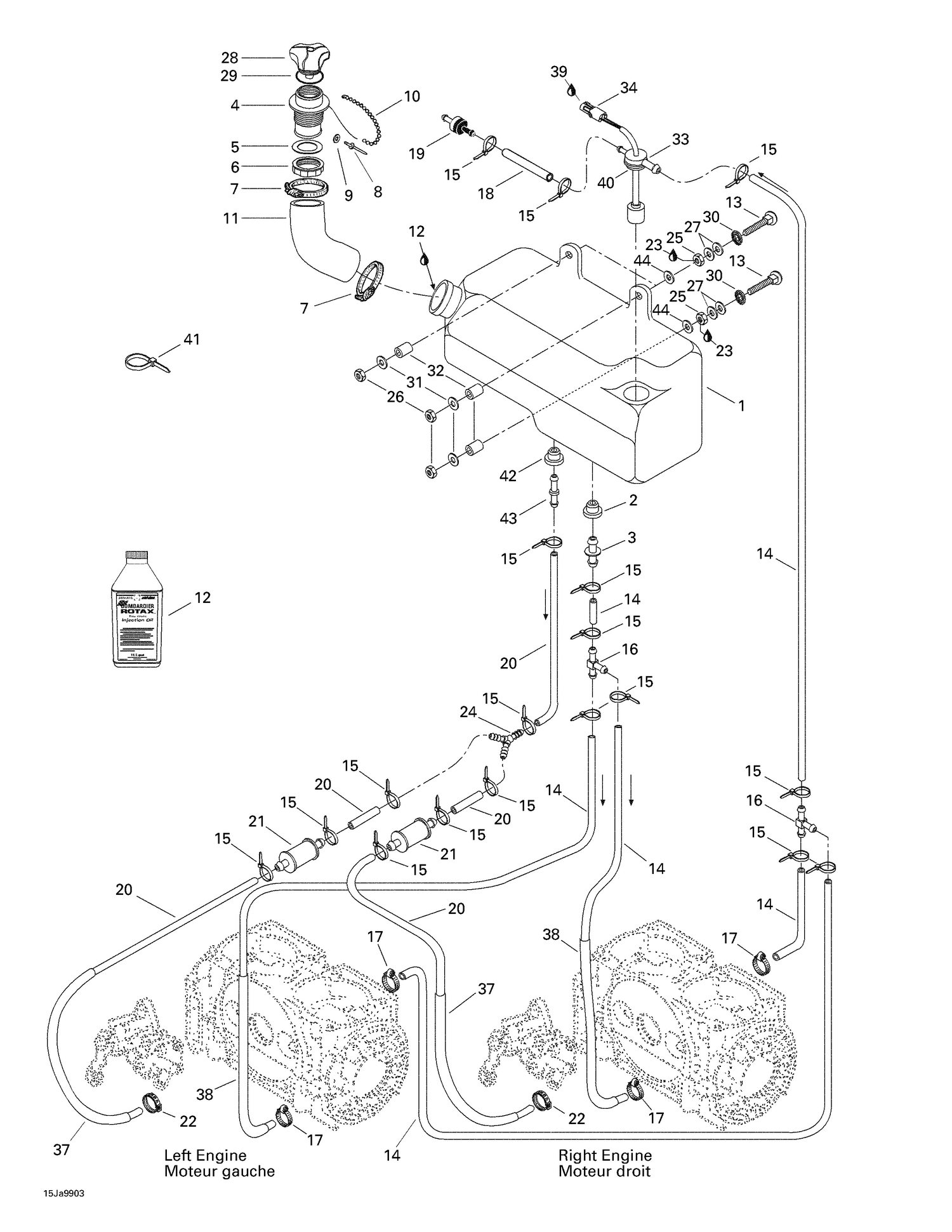

| Ref | Part Number | Description |
|---|
| 1 |
204550029 |
OIL TANK - Call your local BRP dealership |
| 2 |
707800347 |
Grommet This part replaces 570273900. |
| 3 |
293710045 |
STRAIGHT FITTING - Call your local BRP dealership |
| 4 |
275000212 |
Filler Neck |
| 5 |
293250016 |
Gasket |
| 6 |
211100013 |
Nut-Neck Oil Filler |
| 7 |
293650035 |
Tridon Clamp |
| 8 |
293150056 |
Pop Rivet 1/8" |
| 9 |
234032600 |
Flat Washer M3, Stainless |
| 10 |
275500015 |
Oil Cap Chain |
| 11 |
275000070 |
Filler Neck Hose |
| 12 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 13 |
211000193 |
Screw 1/4”-20 X 1-3/4” |
| 14 |
219704356 |
Was 275500008 Hose 12 mm |
| 15 |
293750001 |
Tie Wrap 94 mm |
| 16 |
293710053 |
T-FITTING - Call your local BRP dealership |
| 17 |
293650170 |
Tridon Gear Clamp This part replaces 293650038. |
| 18 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 19 |
275500398 |
Check Valve |
| 20 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 21 |
275000051 |
OIL FILTER - Call your local BRP dealership |
| 22 |
293650042 |
Oetiker Clamp |
| 23 |
293800005 |
Loctite 271, 10 ml |
| 24 |
204550001 |
Y-Fitting |
| 25 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 26 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 27 |
234081600 |
Stainless, Flat Washer 8 mm |
| 29 |
293250025 |
O-RING - Call your local BRP dealership |
| 30 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 31 |
234062600 |
Flat Washer M6, Stainless |
| 32 |
204550033 |
SPACER SLEEVE - Call your local BRP dealership |
| 34 |
278000217 |
Female Housing, 2 Circuits |
| 35 |
278000222 |
Male Terminal |
| 36 |
278000218 |
Wire Seal |
| 37 |
204550015 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 38 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 39 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 40 |
204470104 |
Grommet |
| 41 |
293750002 |
Tie Wrap 142 mm |
| 42 |
709200285 |
Grommet This part replaces 570135100. |
| 43 |
293710046 |
STRAIGHT FITTING - Call your local BRP dealership |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
| 413710500 |
SYNTHETIC |
INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership 413710500 |
