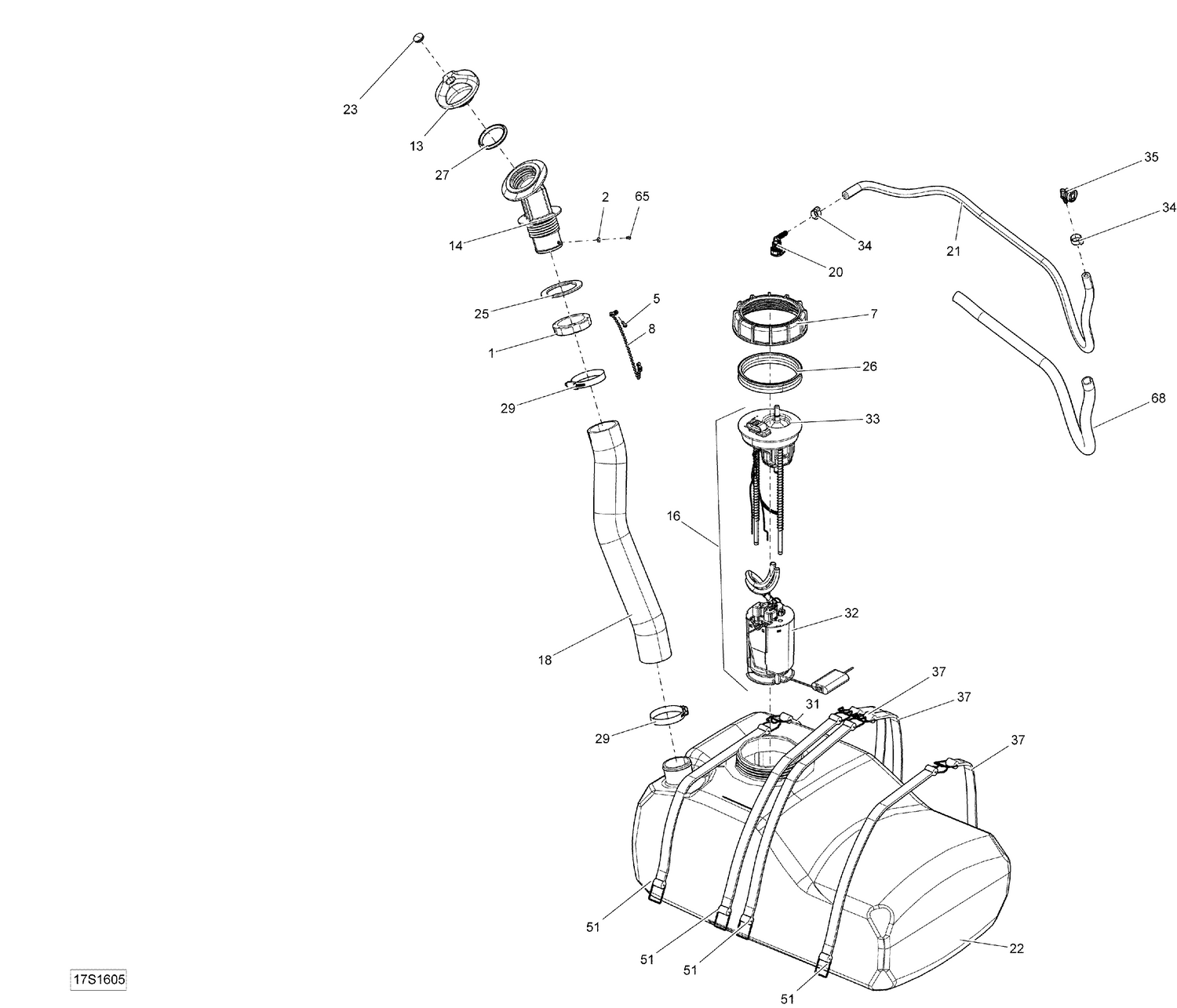

02- Fuel System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 211100012 | Filler Neck Nut, Fuel |
| 2 | 234032600 | Flat Washer M3, Stainless |
| 5 | 241140060 | Screw K40 X 10 |
| 7 | 250100062 | Special Nut M130 |
| 8 | 275500507 | Fuel Cap Chain |
| 13 | 275501094 | Fuel Cap Ass'y This part replaces 275500833. |
| 14 | 275500845 | Filler Neck |
| 16 | 275500996 | Pump Fuel Ass'y This part replaces 275500850. |
| 18 | 275500918 | Hose |
| 20 | 275500921 | Quick Disconnect |
| 21 | 219704395 | HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership |
| 22 | 275500962 | Fuel Tank This part replaces 275500944. |
| 23 | 293000034 | Black, Snap Cap |
| 25 | 293250029 | Gasket |
| 26 | 293250173 | Gasket |
| 27 | 293250417 | Gasket This part replaces 293250285. |
| 28 | 293300139 | X-Ring |
| 29 | 293650081 | Norma Clamp |
| 31 | 293850087 | Fuel Tank Strap |
| 32 | 275500780 | Sensor Lever |
| 33 | 270600113 | Fuel Filter This part replaces 270600108. |
| 34 | 293650053 | Crimp Clamp |
| 35 | 293710105 | Elbow Fitting 90° |
| 37 | 293850093 | Fuel Tank Strap |
| 51 | 293850101 | Fuel Tank Strap |
| 65 | 390407900 | Pop Rivet 1/8" |
