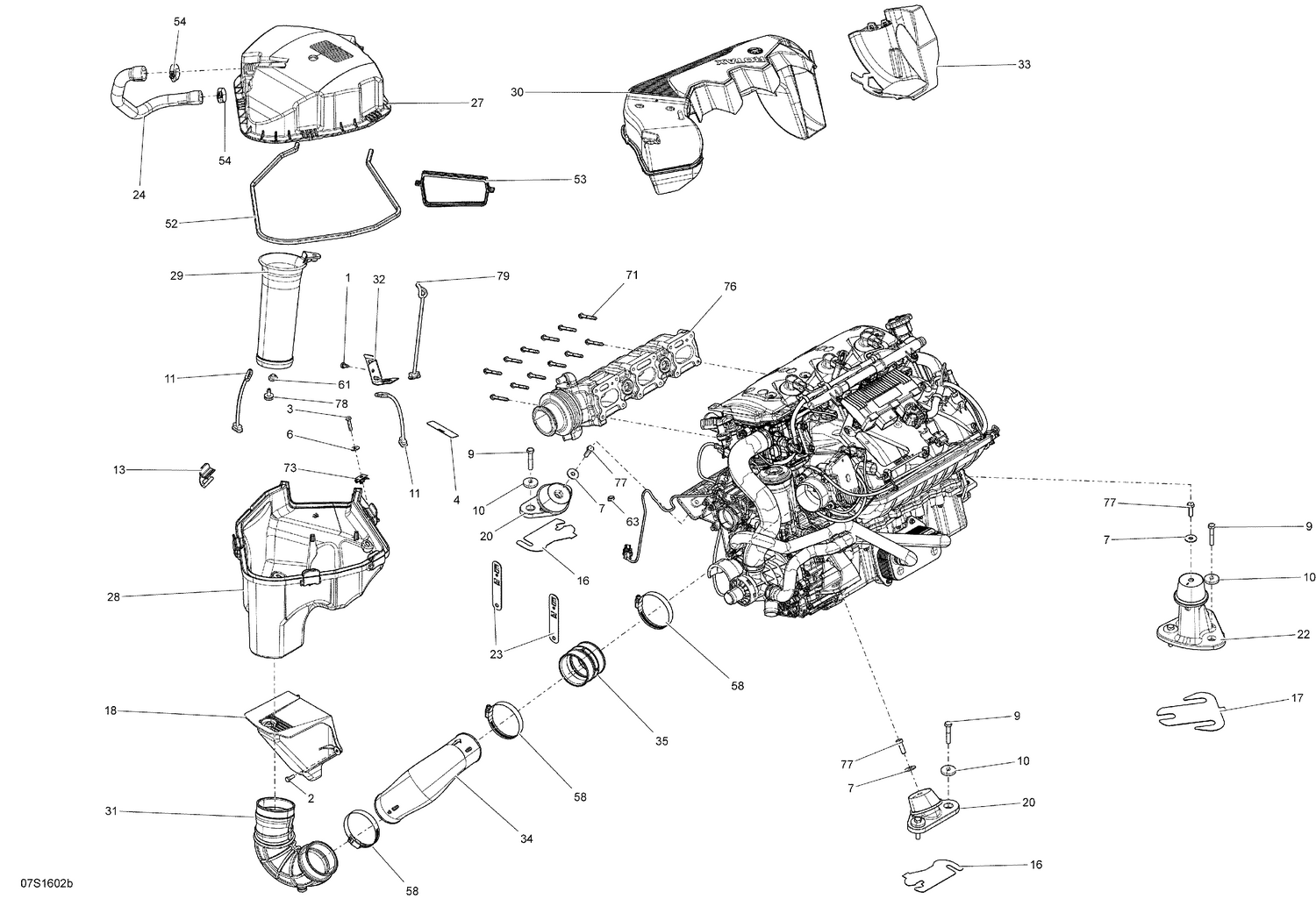

| Ref | Part Number | Description |
|---|
| 1 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 2 |
207361660 |
Hex. Screw M6 X 16, Scotch Grip |
| 3 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 4 |
219903177 |
Air Silencer Notice Decal |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
234082600 |
Flat Washer 8 mm, Stainless |
| 9 |
250000782 |
Hexagonal Head Cap Screw M8 X 45 |
| 10 |
250200018 |
Cone Washer |
| 11 |
269501299 |
Strap |
| 13 |
269501718 |
Clip |
| 16 |
270000762 |
Shim 1.3 mm |
| 17 |
270000770 |
Shim 1.3 mm |
| 18 |
270000791 |
AIR BOX SUPPORT - Call your local BRP dealership |
| 20 |
270001081 |
Engine Support Ass'y This part replaces 270000882. |
| 22 |
270000886 |
Rubber Mount |
| 23 |
270000946 |
HOLDING STRAP - Call your local BRP dealership |
| 24 |
270000948 |
FORMED HOSE - Call your local BRP dealership |
| 27 |
273000249 |
Air Silencer Upper |
| 28 |
273000250 |
AIR SILENCER LOW - Call your local BRP dealership |
| 29 |
273000359 |
Intake Hose |
| 30 |
273000253 |
INTAKE TUBE - Call your local BRP dealership |
| 31 |
273000257 |
CONNECTOR HOSE - Call your local BRP dealership |
| 32 |
273000260 |
AIR BOX BRACKET - Call your local BRP dealership |
| 33 |
273000271 |
DEFLECTOR - Call your local BRP dealership |
| 34 |
273000327 |
HOSE INTAKE - Call your local BRP dealership |
| 35 |
273000277 |
Intake Fitting |
| 52 |
293200123 |
NEOPRENE SEAL - Call your local BRP dealership |
| 53 |
293250190 |
SEAL - Call your local BRP dealership |
| 54 |
293650051 |
Tridon Gear Clamp |
| 61 |
293720064 |
GROMMET - Call your local BRP dealership |
| 63 |
293750002 |
Tie Wrap 142 mm |
| 71 |
420641198 |
Torx Flange Screw M6 X 45 |
| 73 |
420942108 |
Panel Nut M6 X 1 |
| 76 |
296000422 |
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
| 77 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 78 |
275500454 |
CHECK VALVE - Call your local BRP dealership |
