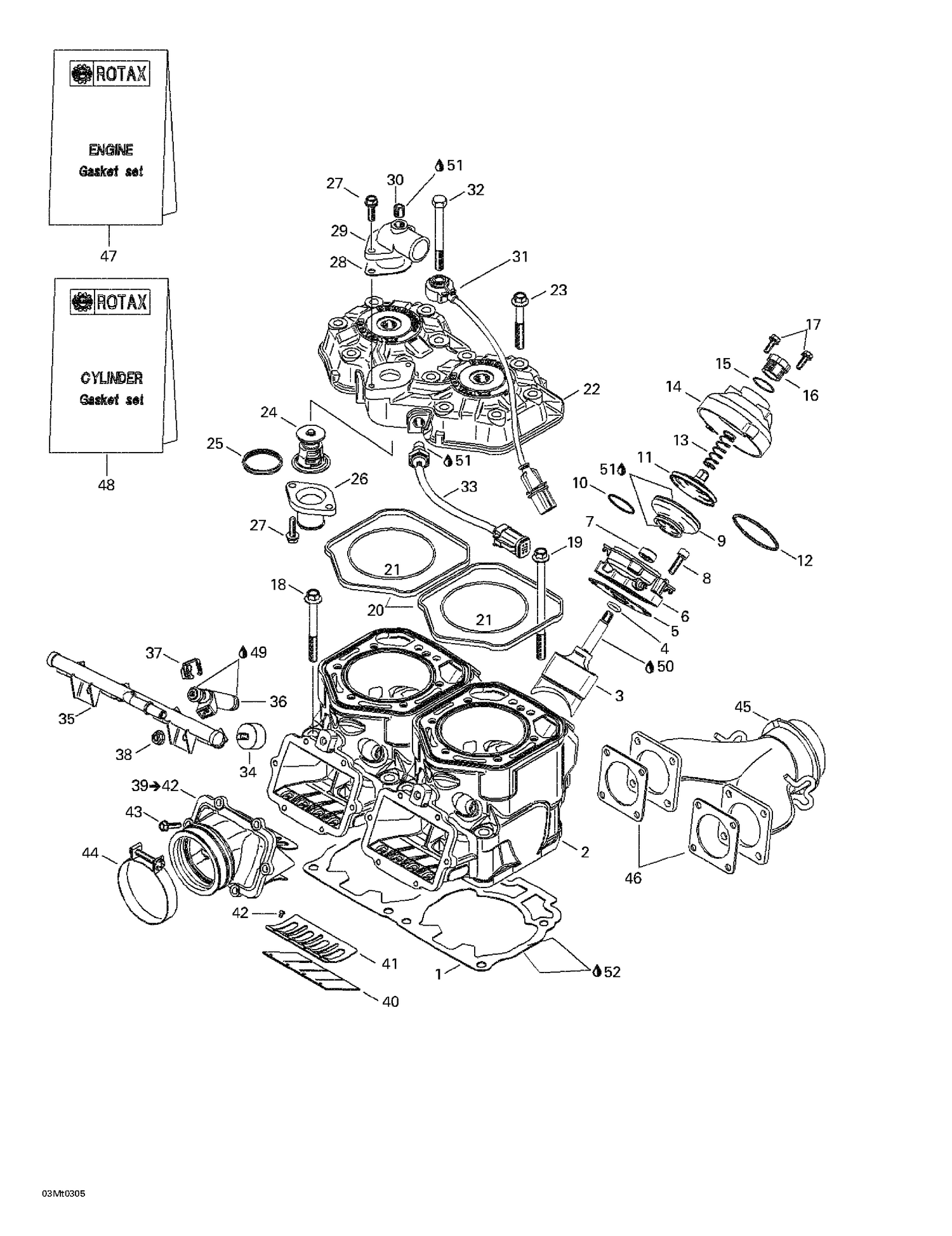

| Ref | Part Number | Description |
|---|
| 1 |
420931839 |
GASKET 0.8 - Call your local BRP dealership |
| 2 |
420923813 |
Cylinder-Nicasil |
| 3 |
420854660 |
Exhaust Valve |
| 4 |
420430110 |
O-Ring |
| 5 |
420931542 |
Gasket |
| 6 |
420854454 |
VALVE HOUSING - Call your local BRP dealership |
| 7 |
420950732 |
Oil Seal This part replaces 420950730. |
| 8 |
205062544 |
Socket Head Screw M6 X 25 |
| 9 |
420260729 |
Bellows |
| 10 |
420838255 |
Hose Spring |
| 11 |
420854449 |
Exhaust Valve |
| 12 |
420939281 |
Hose Spring This part replaces 420939280. |
| 13 |
420239941 |
SPRING - Call your local BRP dealership |
| 14 |
420911559 |
Valve Cover This part replaces 420911558. |
| 15 |
420430220 |
O-Ring |
| 16 |
420241221 |
Adjuster Screw |
| 17 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 18 |
420640524 |
Hex. Collar Screw |
| 19 |
420640534 |
Hex. Collar Screw |
| 20 |
420931590 |
Rubber Ring |
| 21 |
420931410 |
O-Ring This part replaces 290931410. |
| 22 |
420923825 |
Cylinder Head Cover, Silver |
| 23 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 24 |
420922519 |
Thermostat This part replaces 420922517. |
| 25 |
420931272 |
Sealing Ring |
| 26 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 27 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 28 |
420850339 |
Gasket This part replaces 420850338. |
| 29 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 30 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 31 |
270000484 |
Noise Sensor This part replaces 420664030. |
| 32 |
420941221 |
HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 33 |
515177835 |
Temperature Sensor This part replaces 420664500. |
| 34 |
420960065 |
STOPPER - Call your local BRP dealership |
| 35 |
420874460 |
Fuel Rail Ass’Y |
| 36 |
420874485 |
Fuel Injectors |
| 37 |
420851800 |
CLIP - Call your local BRP dealership |
| 38 |
420442172 |
NUT - Call your local BRP dealership |
| 40 |
420924680 |
Reed Pedal |
| 41 |
420924695 |
Reed Pedal Stop |
| 42 |
420941215 |
Phillips Screw M3 X 5 |
| 43 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 44 |
420851810 |
CLAMP - Call your local BRP dealership |
| 45 |
420673245 |
Exhaust Manifold |
| 46 |
420931850 |
Gasket |
| 47 |
420888741 |
Gasket Engine Kit |
| 48 |
420888745 |
CYLINDER GASKET - Call your local BRP dealership |
| 49 |
413707000 |
Dow Corning 111, 150 g |
| 50 |
Not |
Available As Spare Part - Engine oil |
| 51 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
