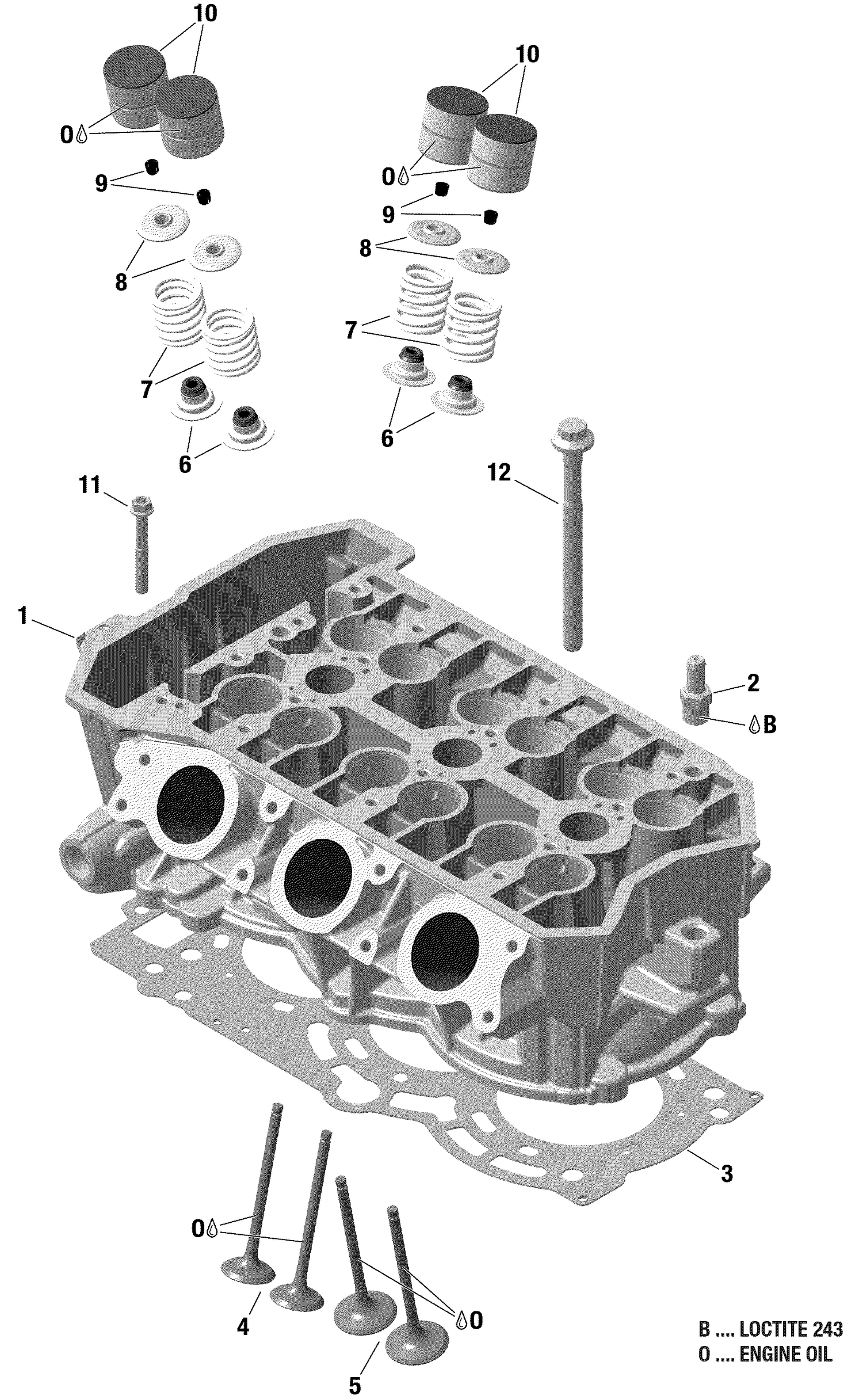

01- Rotax - Cylinder Head
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420413369 | Cylinder Head Ass'y This part replaces 420413365. |
| 2 | 420441420 | Hose Nipple |
| 3 | 420431816 | Cylinder Head Gasket |
| 4 | 420855146 | Exhaust Valve 25 MM This part replaces 420855148. |
| 5 | 420855131 | Intake Valve 29MM |
| 6 | 420431671 | Valve Stem Seal |
| 7 | 420939540 | Valve Spring |
| 8 | 420855150 | Valve Spring Retainer |
| 9 | 420254630 | Cotter Valve |
| 10 | 420855165 | Valve Lifter Bucket This part replaces 420855164. |
| 11 | 420440324 | Torx Flange Screw M6 X 45 |
