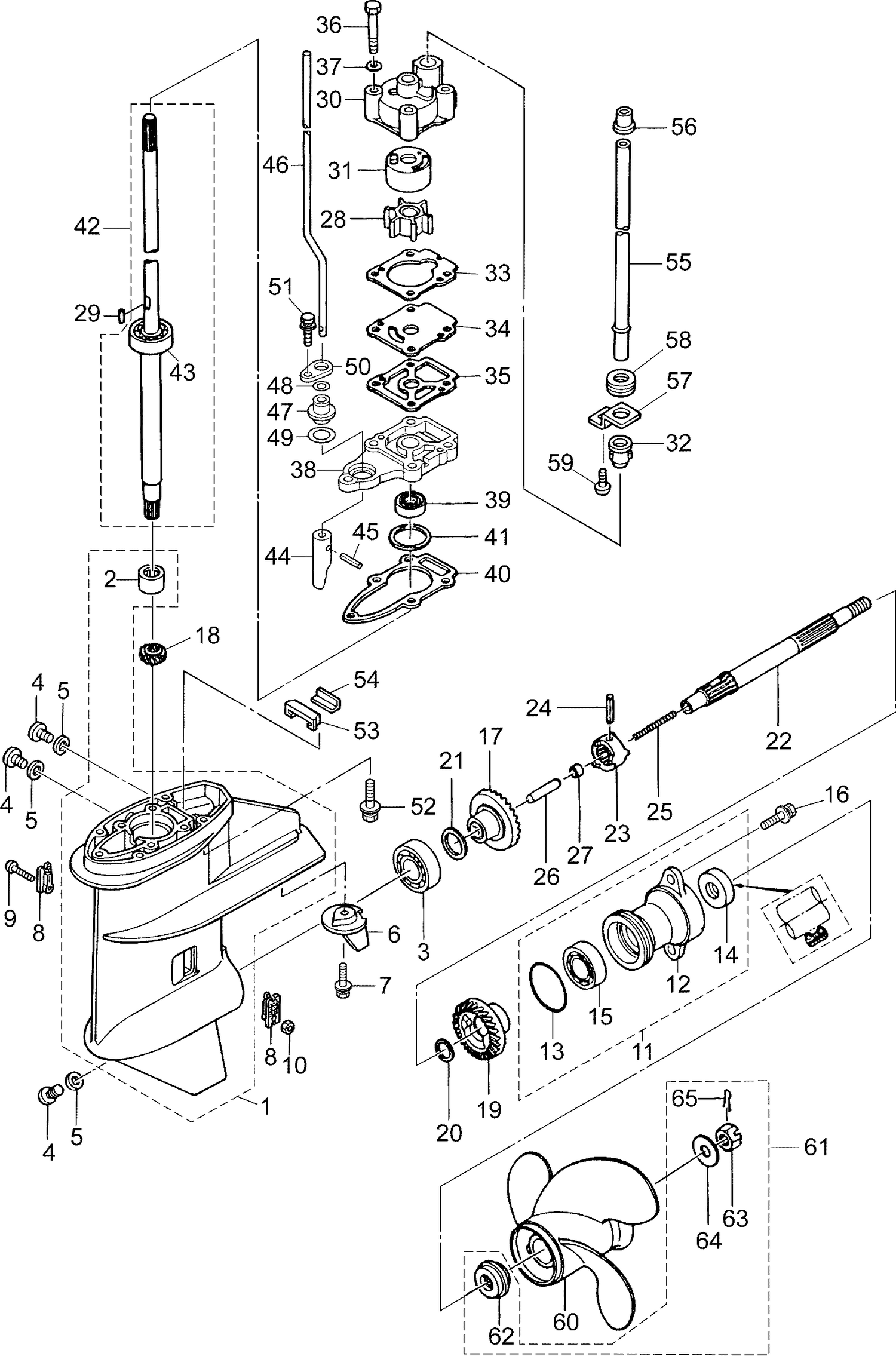

17-1_GEARCASE ASSEMBLY
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| NS | 5040529 | WATER PUMP KIT (CHROME PLATED) |
| NS | 5040536 | LOWER UNIT GASKET SET |
| NS | 5040537 | WATER PUMP REPAIR KIT |
| 3 | 5041704 | BALL BEARING 6204 |
| 4 | 5040029 | PLUG |
| 5 | 5040030 | Gasket 8.1-15-1 |
| 6 | 5041325 | TRIM TAB |
| 7 | 5041533 | BOLT |
| 9 | 5041606 | SCREW |
| 10 | 5041653 | NYLON NUT |
| 11 | 5040542 | PROPELLER SHAFT HOUSING ASSEMBLY |
| 17 | 5040511 | BEVEL GEAR ASSEMBLY (A) |
| 18 | 5040512 | BEVEL GEAR B |
| 19 | 5040513 | BEVEL GEAR C |
| 20 | 5040160 | WASHER 15.2-19-1.9 |
| 21 | 5040156 | Shim 21-28-0.1 |
| 22 | 5041349 | PROPELLER SHAFT |
| 23 | 5040518 | CLUTCH |
| 24 | 5040008 | PIN 3.5-28 |
| 25 | 5041350 | SPRING CLUTCH |
| 26 | 5040168 | PUSH ROD CLUTCH |
| 27 | 5040519 | SPRING RETAINER CLUTCH |
| 28 | 5040525 | WATER PUMP IMPELLER |
| 29 | 5040526 | KEY PUMP IMPELLER |
| 30 | 5040522 | PUMP CASE (UPPER) |
| 31 | 5040521 | PUMP CASE LINER |
| 32 | 5040027 | WATER PIPE SEAL (LOWER) |
| 33 | 5040523 | PUMP CASE GASKET |
| 34 | 5040527 | WATER PUMP GUIDE PLATE |
| 35 | 5040528 | GUIDE PLATE GASKET |
| 36 | 5041585 | BOLT |
| 38 | 5041356 | PUMP CASE (LOWER) |
| 40 | 5040524 | PUMP CASE GASKET (LOWER) |
| 41 | 5040514 | SHIM 28-36.8-0.1 |
| 41 | 5040515 | SHIM 28-36.8-0.15 |
| 41 | 5040516 | SHIM 28-36.8-0.3 |
| 44 | 5040191 | Clutch Cam |
| 45 | 5041691 | Spring Pin 3-10 |
| 47 | 5040196 | CAM ROD BUSHING |
| 48 | 5040195 | O-RING A 2.5-4.9 |
| 49 | 5040036 | O-Ring 2.4-15.4 |
| 50 | 5040197 | Stopper Com Rod Bushing |
| 51 | 5041561 | BOLT |
| 52 | 5041442 | BOULON |
| 53 | 5041321 | WATER SEAL RUBBER |
| 54 | 5041322 | WATER SEAL PLATE |
| 56 | 5041362 | WATER PIPE SEAL (UPPER) |
| 57 | 5041360 | LOCK PLATE |
| 58 | 5041361 | WATER PIPE AUXILIARY MOUNT 13-2.5 |
| 61 | 5041399 | PROPELLER HARDWARE KIT |
| 62 | 5040520 | Thrust Holder Assy |
