Parts Catalog

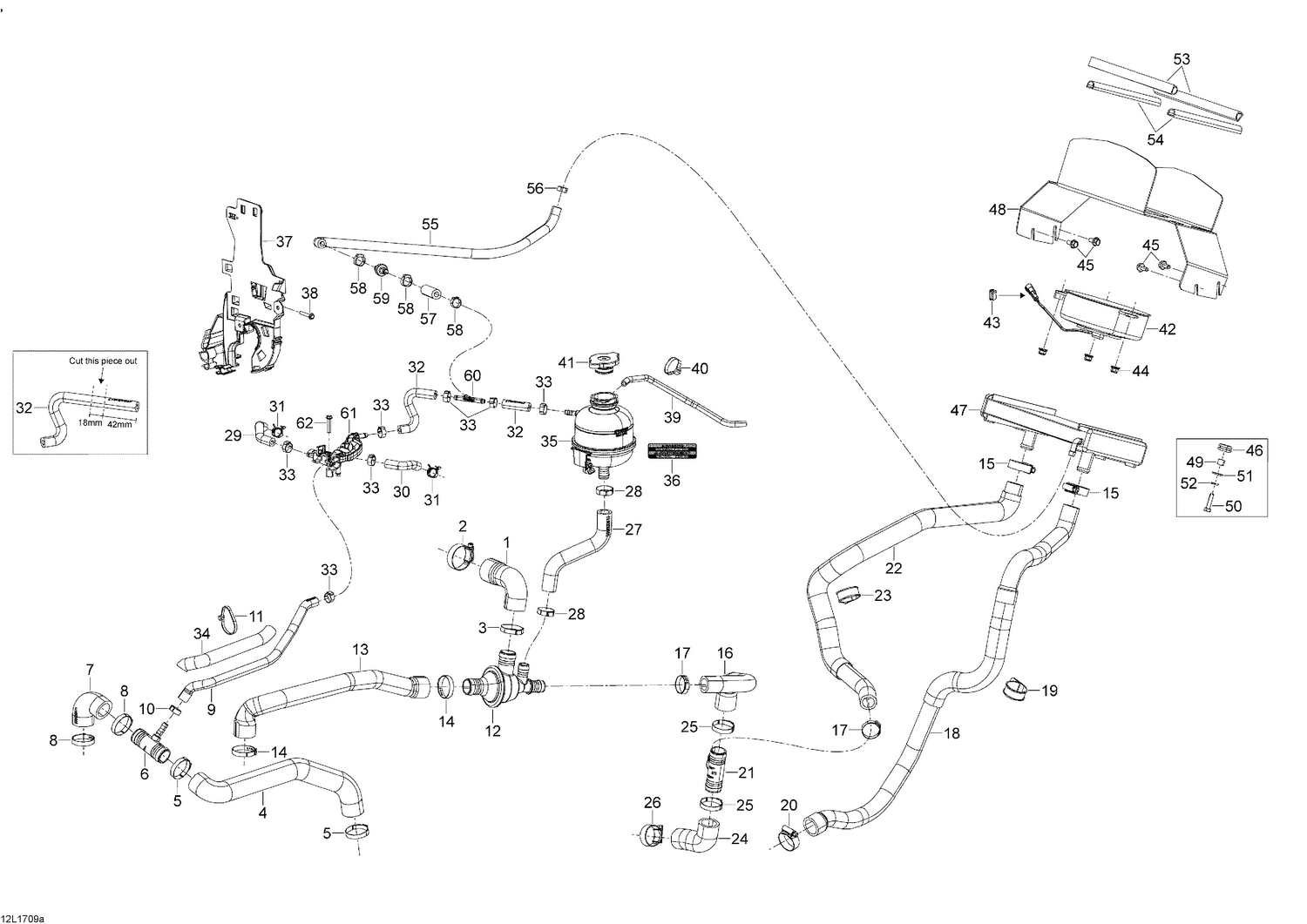

01- Cooling System 600HO E-TEC

Parts (61)

Ref	Part Number	Description
1	509000678	Engine Outlet Hose
2	509000443	Aba Gear Clamp, 26-38 MM
3	509000529	Crimp Clamp
4	509000670	Hose
5	509000529	Crimp Clamp
6	509000510	T-Fitting
7	509001066	Radiator Hose This part replaces 509000671.
8	509000529	Crimp Clamp
9	509000906	Breather Hose
10	293650047	Crimp Clamp, 15.3-706R
11	414115200	Tie-Rap 180 mm
12	509000499	Thermostat Housing
13	509000679	Hose
14	509000529	Crimp Clamp
15	509000443	Aba Gear Clamp, 26-38 MM
16	509000923	Bypass Hose
17	293650099	Crimp Clamp
18	509000926	Hose
19	27011	Clamp
20	509000443	Aba Gear Clamp, 26-38 MM
21	509000372	T-Fitting
22	509000927	Hose
23	27011	Clamp
24	509000924	Engine Inlet Hose
25	509000181	Crimp Clamp
26	509000443	Aba Gear Clamp, 26-38 MM
27	509000812	Filling Hose
28	509000442	Crimp Clamp
29	509000818	Hose
30	509000819	Hose
31	293650170	Gear Clamp
32	509000817	HOSE - Call your local BRP dealership
33	293650046	Oetiker Clamp
34	415080000	Protector Tube
35	509000802	Coolant Tank
36	516005904	Warning Decal
37	509000973	TANK-SUPPORT - Call your local BRP dealership
38	241152540	Hex. Flange Screw K50 x 25
39	276000048	Hose
40	414115200	Tie-Rap 180 mm
41	509000180	Radiator Pressure Cap
42	509000837	Cooling Fan
43	710000992	Clip
44	233261414	Hex. Flange Elastic Nut M6 x 1.0
45	207661244	Hex. Flange Screw M6 X 12
46	709000582	Grommet This part replaces 293720053.
47	509000756	Radiator
48	509000922	Radiator Support
49	605453745	Bushing
50	207162044	Hex. Cap Screw M6 x 20
51	234062410	Flat Washer 6 mm
52	234161431	Lock Washer
53	509000823	D-Seal 12 x 15
54	509000824	D-Seal 12 x 15
55	513033273	Hose
56	293650140	Crimp Clamp
57	513033271	Hose
58	293650140	Crimp Clamp
59	509000153	Check Valve
60	293710140	Y-Connector
61	509000803	Collector
