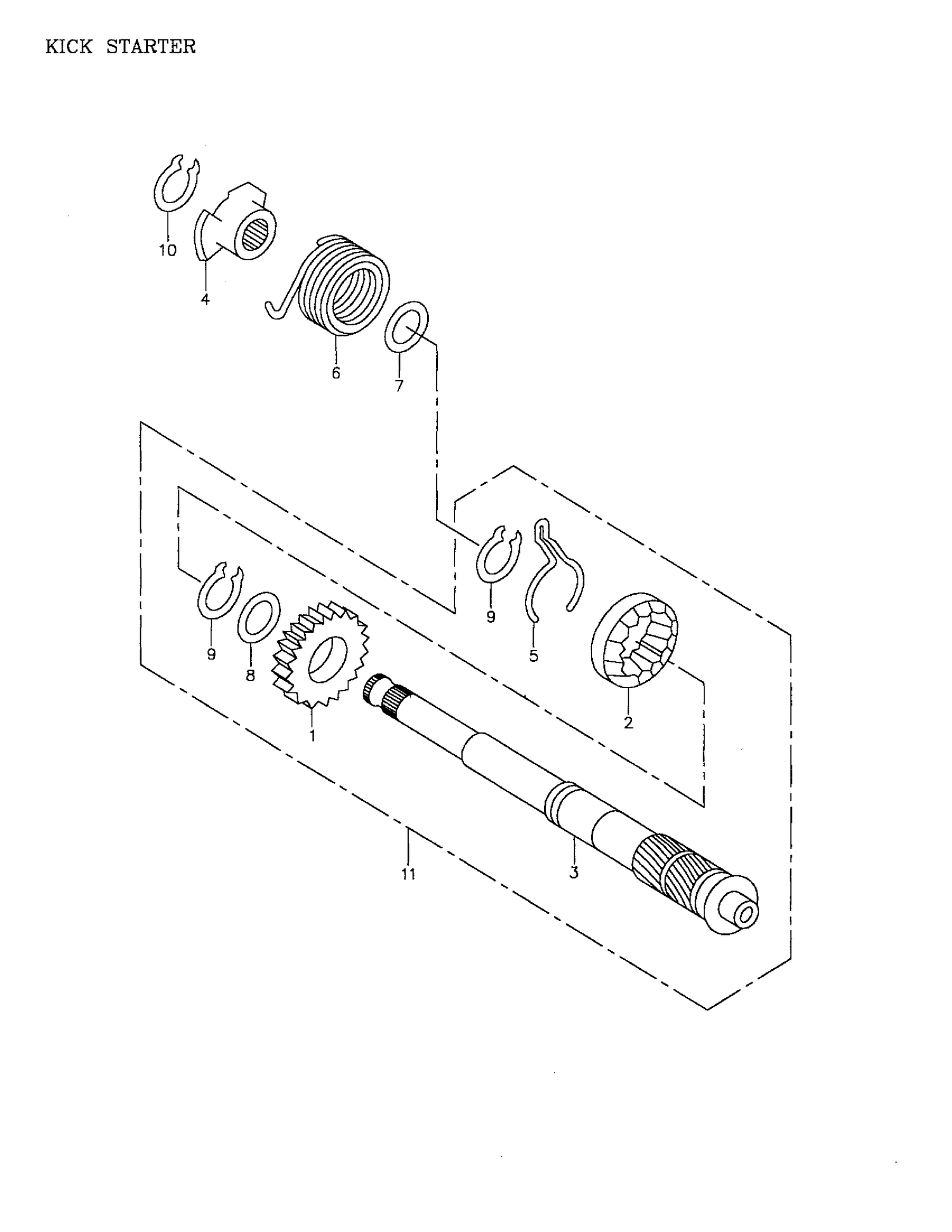

04- Kick Starter 172a-12
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A28211152000 | Kick Starter Pinion |
| 2 | A28221152000 | Kick Starter Rive Ratchet |
| 3 | A28250152000 | Starter Spindle Comp. |
| 4 | A28262152000 | Kick Spring Retainer |
| 5 | A28271152000 | Starter Eriction Spring |
| 6 | A28281152000 | Kick Starter Spring |
| 7 | A904511724010 | Washer |
| 8 | A904512025010 | Thrust Washer |
| 9 | A945112000G | External Circlip |
| 10 | A945111600S | External Circlip |
