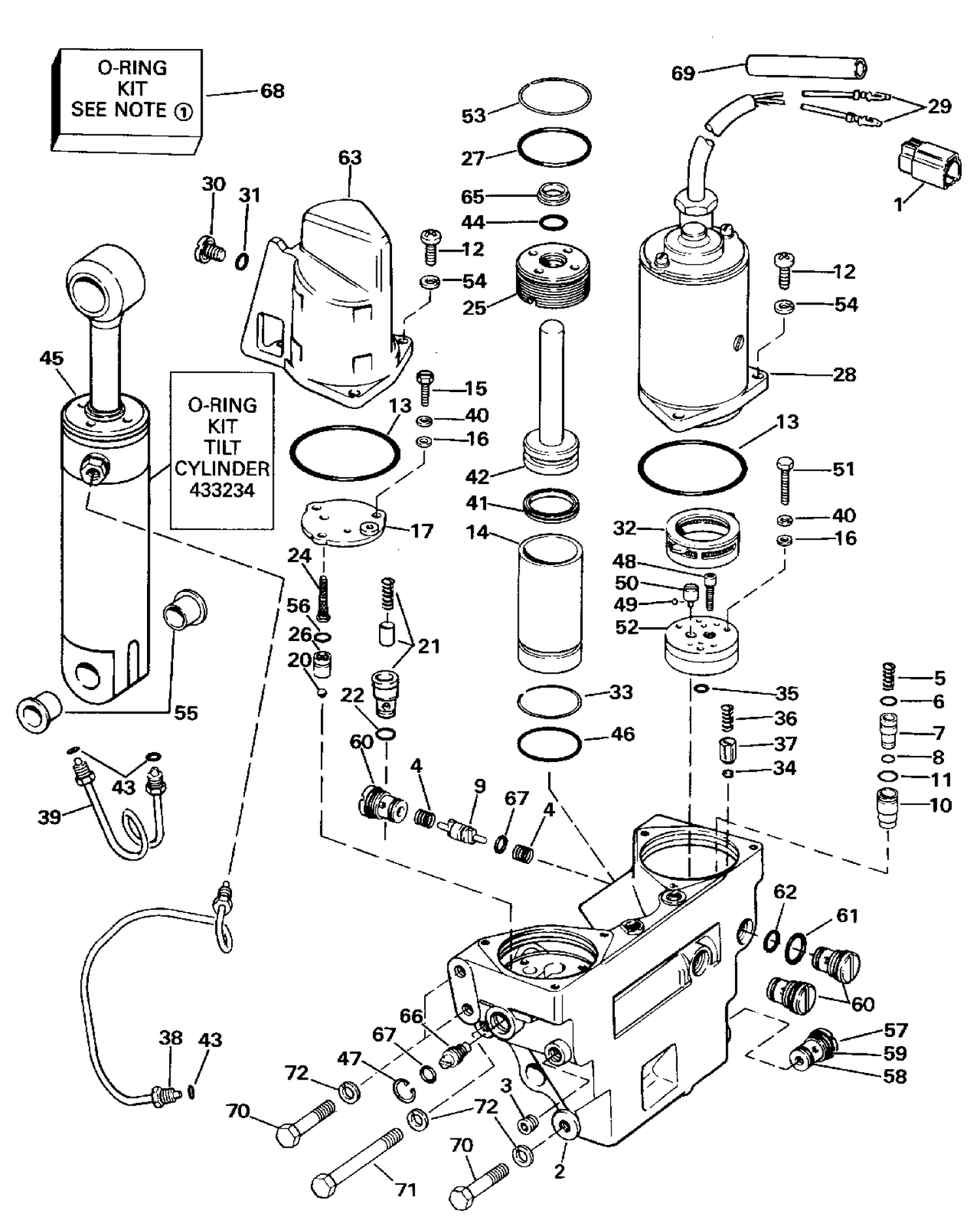

| Ref | Part Number | Description |
|---|
| 1 |
0325698 |
CONNECTOR |
| 2 |
0435569 |
HYDRAULIC ASSY., Trim/tilt This part replaces 0398443. |
| 6 |
0324677 |
JOINT TORIQUE, mamelon, vidange inférieure |
| 8 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 21 |
0397022 |
RELIEF VALVE KIT |
| 28 |
0394176 |
TRIM /TILT MOTOR |
| 38 |
0395254 |
OIL LINE ASSY., Upper |
| 40 |
0360252 |
WASHER This part replaces 0306311. |
| 51 |
0321219 |
VIS, vis de fixation |
| 55 |
0321246 |
BUSHING, Shock absorber, lower |
| 69 |
0327267 |
SLEEVE |
| 0398442 |
0434804 |
HYDRAULIC ASSY., Trim/tilt This part replaces 0398442. |
| 0398606 |
0398606 |
BRUSH & SEAL KIT |
| 0433234 |
0433234 |
O-RING & SEAL KIT |
| 0583522 |
0583522 |
BRUSH & SEAL KIT |
