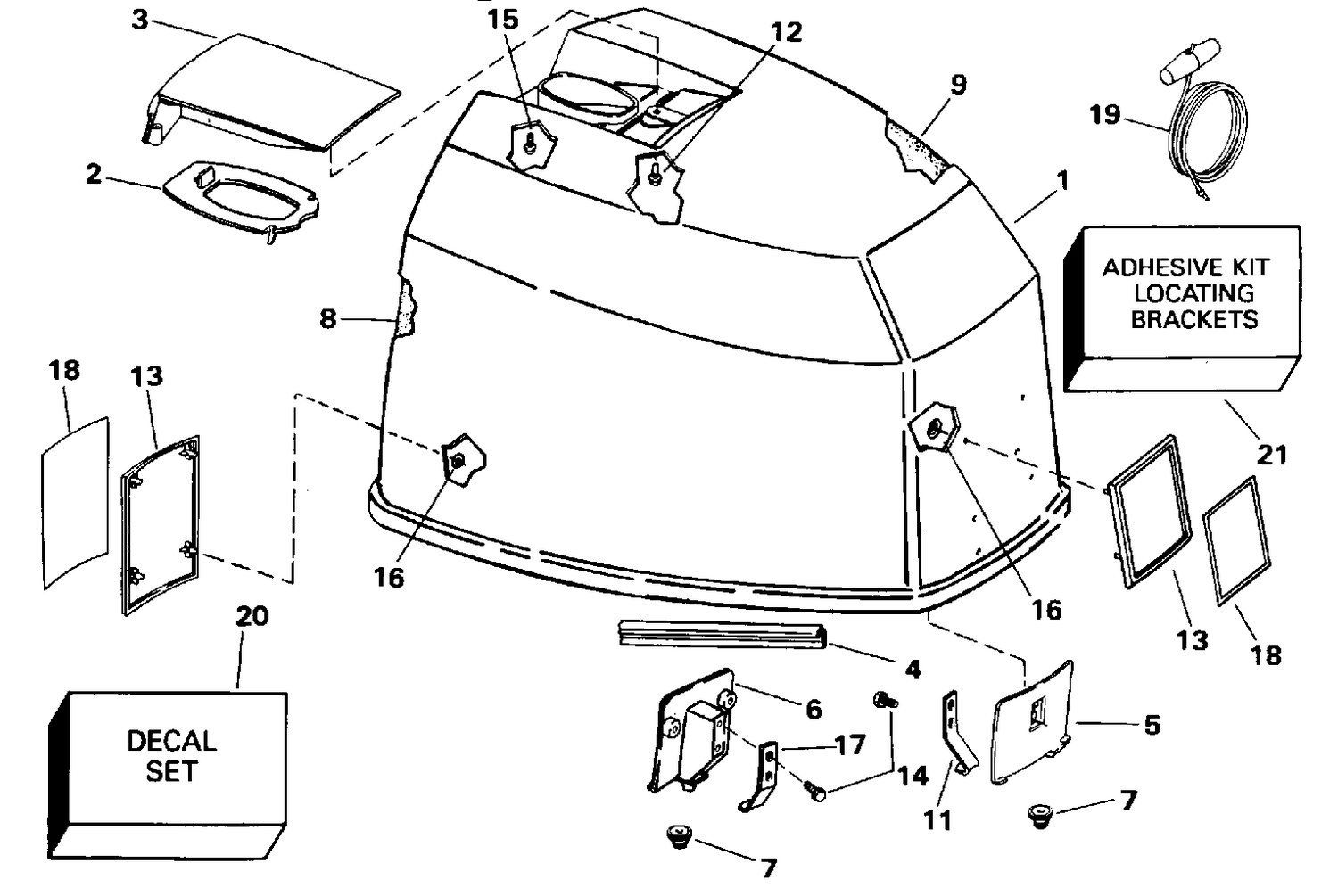

ENGINE COVER - EVINRUDE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0284718 | ENGINE COVER ASSY., 88 |
| 1 | 0284719 | ENGINE COVER ASSY., 112 |
| 1 | 0284828 | ENGINE COVER ASSY., 88 |
| 1 | 0284829 | ENGINE COVER ASSY., 112 |
| 4 | 0329548 | SEAL |
| 5 | 0336991 | BRACKET, Locating, front |
| 6 | 0336992 | BRACKET, Locating, rear |
| 8 | 0341534 | SOUND BLANKET, Side |
| 9 | 0341535 | SOUND BLANKET, Top |
| 11 | 0323175 | HOOK , Motor Cover, Front |
| 13 | 0331856 | APPLIQUE, Front |
| 18 | 0341774 | PLATE, Front & rear, 88 |
| 18 | 0341775 | PLATE, Front & rear, 112 |
| 19 | 0378347 | CORDE DE LANCEUR |
| 20 | 0284843 | DECAL SET, 88 |
| 20 | 0284844 | DECAL SET, 112 |
| 20 | 0284845 | DECAL SET |
