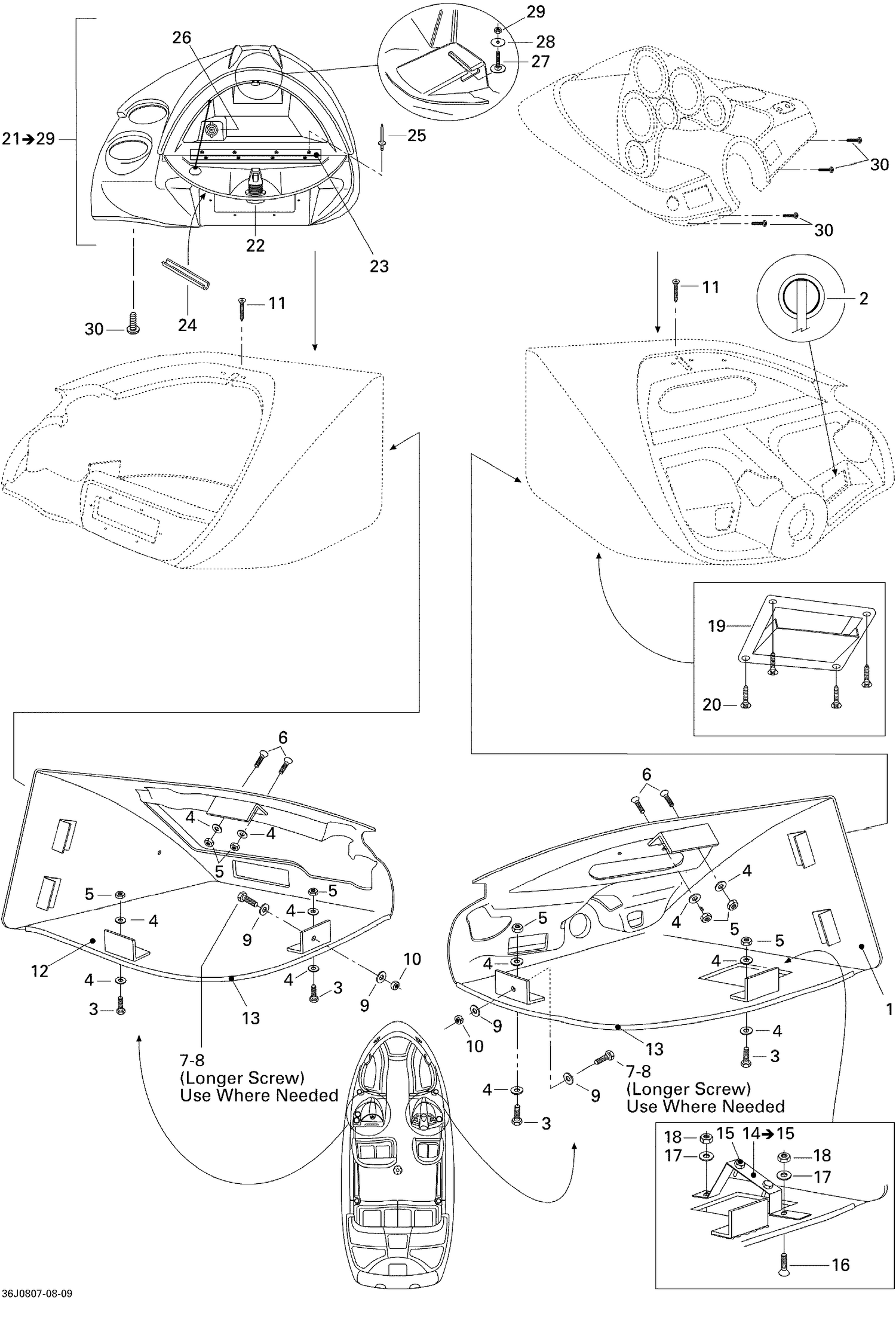

| Ref | Part Number | Description |
|---|
| 1 |
204073118 |
Console Ass'y, Starboard |
| 2 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 3 |
207163060 |
Hex. Screw M6 X 30 |
| 4 |
234060600 |
FLAT WASHER 6 MM - Call your local BRP dealership |
| 5 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 6 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 7 |
207164560 |
Hex. Screw M6 X 45 |
| 8 |
207166560 |
Hex. Screw M6 X 65 |
| 9 |
234062600 |
Flat Washer M6, Stainless |
| 10 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 11 |
204100056 |
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership |
| 12 |
204073117 |
Console Ass'y, Port Side |
| 13 |
204072658 |
Trim, Off White |
| 15 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 16 |
208462060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 17 |
234061600 |
Stainless Flat Washer M6 |
| 18 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 19 |
204072803 |
Access Door |
| 20 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 22 |
204071524 |
DOOR LATCH - Call your local BRP dealership |
| 23 |
204071525 |
Hinge |
| 24 |
204071526 |
Door Edge |
| 25 |
204130021 |
Pop Rivet |
| 26 |
710001248 |
DC Outlet This part replaces 204470907. |
| 27 |
204000130 |
Elevator Bolt |
| 28 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 29 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
