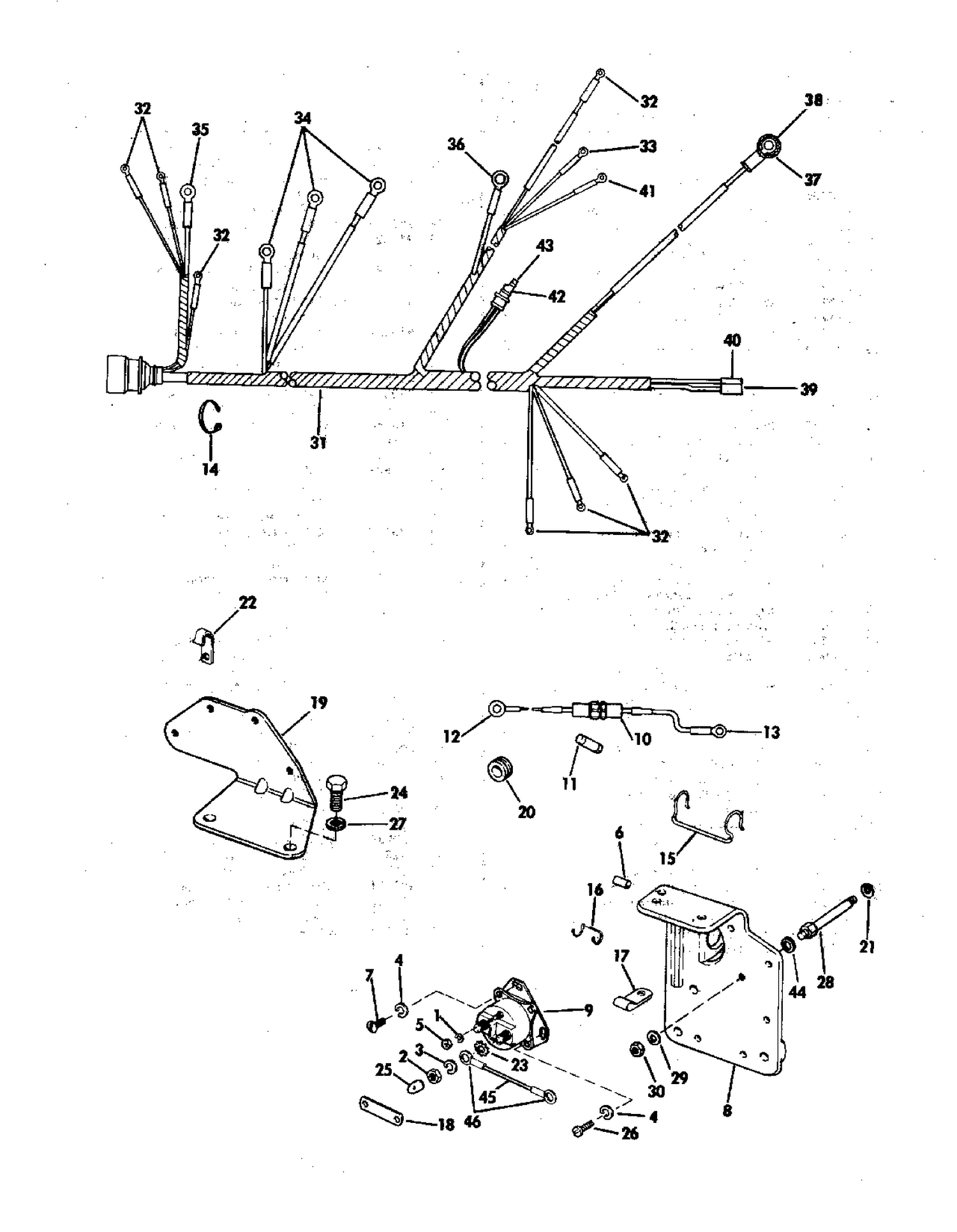

SOLENOID & CABLES GROUP
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0314936 | HEAT SHRINK |
| 7 | 0317753 | SCREW |
| 8 | 0910187 | BRACKET |
| 9 | 0985063 | SOLENOID This part replaces 0982187. |
| 10 | 0983322 | FUSE HOLDER & LEAD This part replaces 0982588. |
| 16 | 3852499 | RETAINER, Fuse This part replaces 0910330. |
| 17 | 0909424 | CLAMP |
| 18 | 0909450 | BUS BAR |
| 19 | 0910188 | BRACKET, Trim solenoid |
| 20 | 0909988 | BUSHING, Tilt & trim cable |
| 22 | 3852434 | CLAMP, Engine cable This part replaces 0908191. |
| 24 | 0306539 | BOLT, Distributor |
| 25 | 0910091 | CAP |
| 26 | 0317753 | SCREW |
| 27 | 0120177 | L'WASHER, Alternator to brkt |
| 28 | 0910162 | SPACER |
| 29 | 0302471 | W.ASHER, Plain |
| 31 | 0982960 | CABLE ASSY |
| 35 | 0910626 | RING TERMINAL |
| 36 | 3852527 | RING TERMINAL This part replaces 0114416. |
| 39 | 0510469 | TAB |
| 40 | 0510471 | CONNECTOR |
| 42 | 0511989 | CONNECTOR |
| 44 | 0306407 | LOCCKWASHER,Cover latch |
| 45 | 0982391 | LEAD ASSY |
