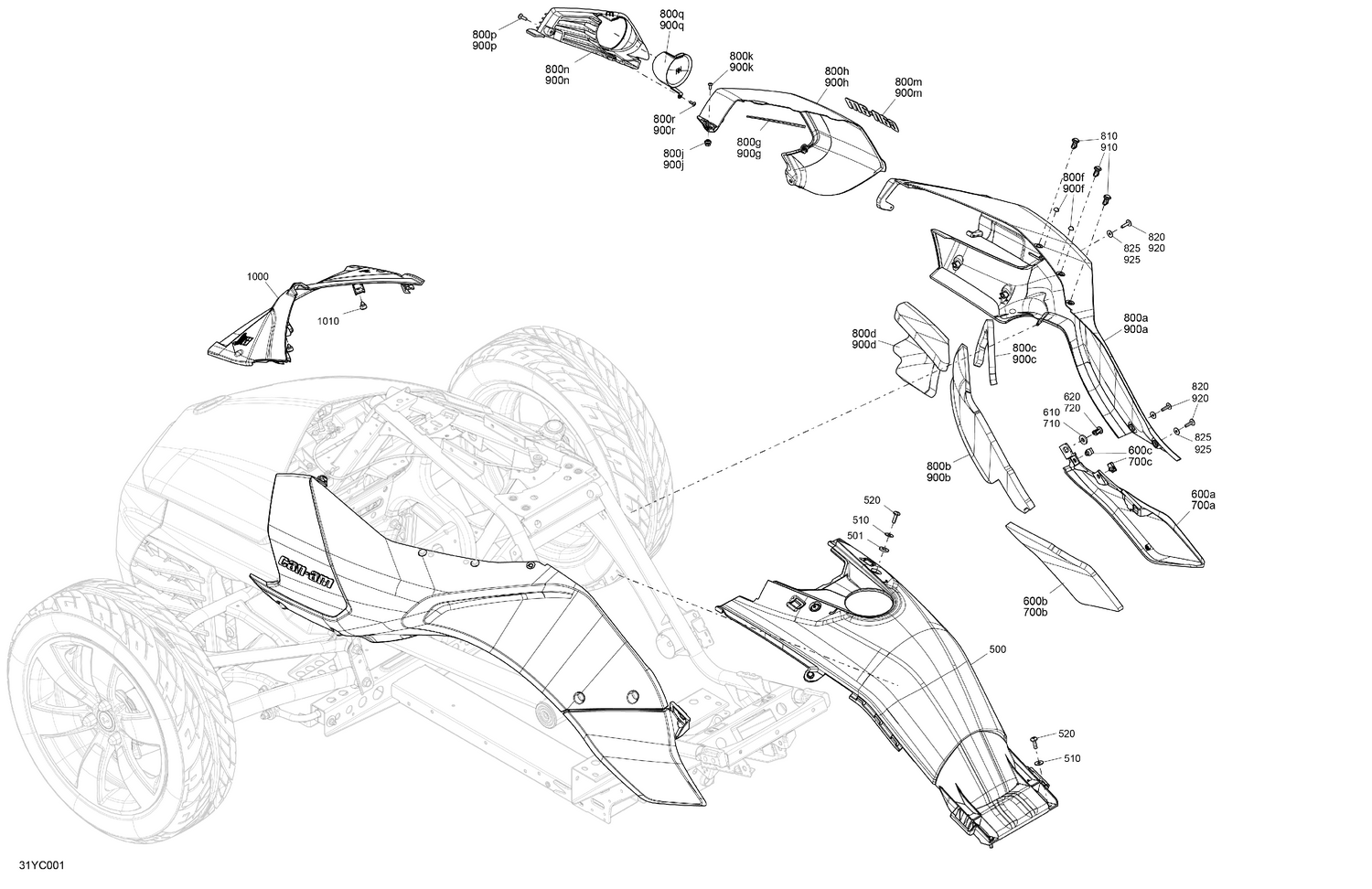

| Ref | Part Number | Description |
|---|
| 500 |
705013571 |
Deep Black, Tank Cover |
| 501 |
705015250 |
Self-Adhesive Spacer |
| 510 |
234062670 |
Stainless Steel Flat Washer |
| 520 |
250000705 |
Torx Truss Screw M6 X 20 |
| 600a |
705008254 |
Steel Black Met., LH Low Fairing |
| 600b |
705009153 |
Acoustic Foam |
| 600c |
250000958 |
Panel Nut M5 X 0.8 |
| 610 |
705010890 |
Spacer |
| 620 |
293150230 |
Tuflok Plastic Rivet |
| 700a |
705008255 |
Steel Black Met., RH Lower Fairing |
| 700b |
705009154 |
Acoustic Foam |
| 700c |
250000958 |
Panel Nut M5 X 0.8 |
| 710 |
705010890 |
Spacer |
| 720 |
293150230 |
Tuflok Plastic Rivet |
| 800a |
705010846 |
Steel Black Met., LH Lateral Fairing |
| 800b |
705009155 |
Acoustic Foam |
| 800c |
705009157 |
Acoustic Foam |
| 800d |
705009159 |
Acoustic Foam |
| 800f |
705006634 |
Polyurethane Stopper |
| 800g |
219704373 |
Seal 1000Mm Long |
| 800h |
705011456 |
Deep Black, LH Air Scoop |
| 800j |
705009430 |
Anchor Pin |
| 800k |
250001131 |
Torx Truss PT K40 x 12 |
| 800m |
704905126 |
Matt Black, Logo Can-Am |
| 800n |
705010137 |
Deep Black, LH Air Vent Grid |
| 800p |
250000720 |
Torx Screw K50 X 16 |
| 800q |
705008995 |
LH Heat Shield |
| 800r |
250001131 |
Torx Truss PT K40 x 12 |
| 810 |
293150230 |
Tuflok Plastic Rivet |
| 820 |
250000586 |
Torx Truss M5 X 20 |
| 825 |
234052670 |
Stainless Steel Flat Washer M5 |
| 900a |
705010838 |
Steel Black, RH Lateral Fairing |
| 900b |
705009156 |
Acoustic Foam |
| 900c |
705009158 |
Acoustic Foam |
| 900d |
705009160 |
Acoustic Foam |
| 900f |
705006634 |
Polyurethane Stopper |
| 900g |
219704373 |
Seal 1000Mm Long |
| 900h |
705011399 |
Deep Black, RH Air Scoop |
| 900j |
705009430 |
Anchor Pin |
| 900k |
250001131 |
Torx Truss PT K40 x 12 |
| 900m |
704905126 |
Matt Black, Logo Can-Am |
| 900n |
705010138 |
Deep Black, RH Air Vent Grid |
| 900p |
250000720 |
Torx Screw K50 X 16 |
| 900q |
705008996 |
RH Heat Shield |
| 900r |
250001131 |
Torx Truss PT K40 x 12 |
| 910 |
293150230 |
Tuflok Plastic Rivet |
| 920 |
250000586 |
Torx Truss M5 X 20 |
| 925 |
234052670 |
Stainless Steel Flat Washer M5 |
| 1000 |
705008058 |
Service Center Fairing |
