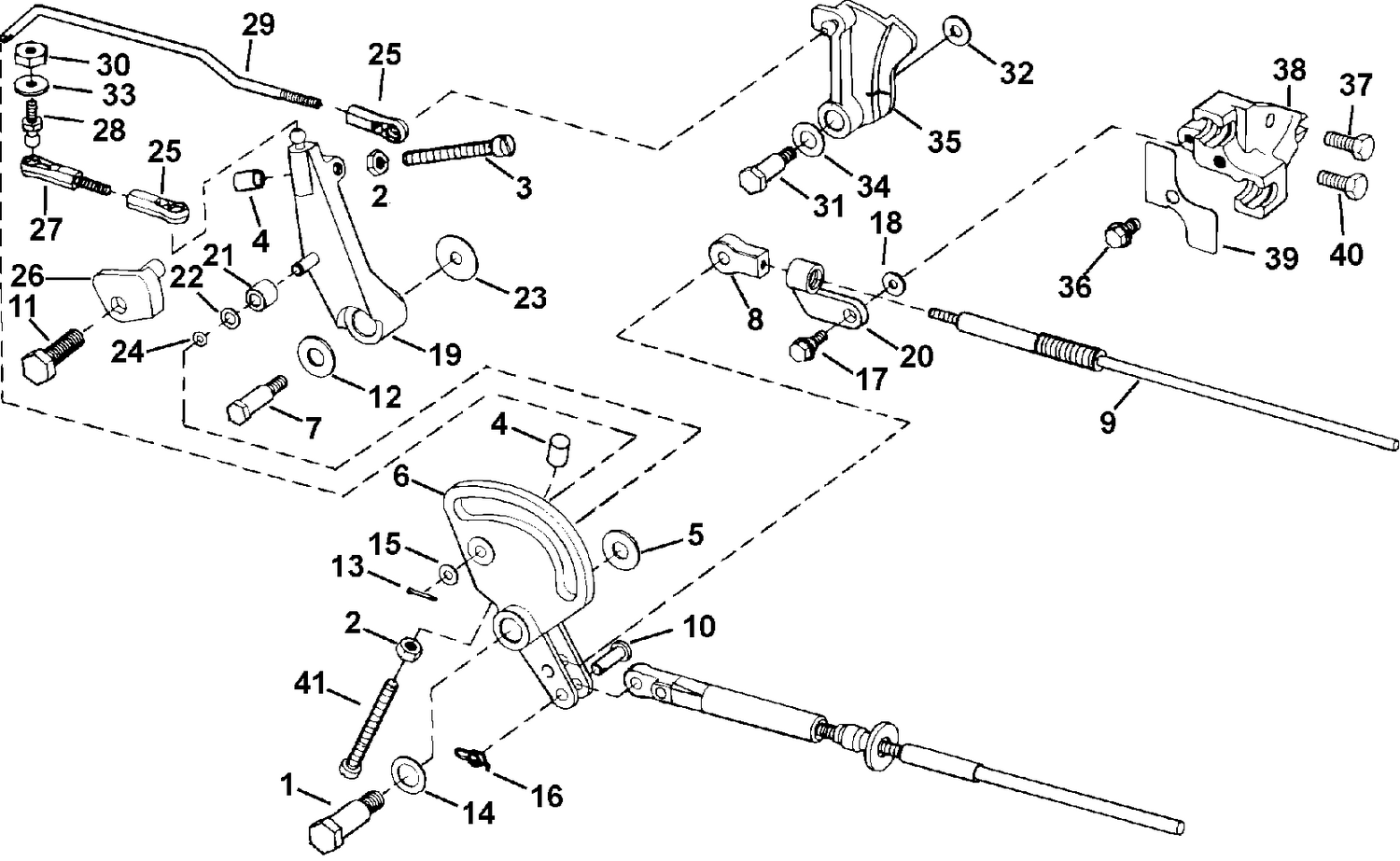

THROTTLE LINKAGE
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0206409 | PIVOT SCREW |
| 3 | 0328699 | LEVER, Spark control |
| 4 | 0318660 | BUMPER, Screw, throttle stop |
| 5 | 0908398 | WASHER |
| 6 | 0334064 | LEVER, Cam |
| 7 | 0334238 | VIS, levier vers cylindre |
| 12 | 0908398 | WASHER |
| 14 | 0127386 | RONDELLE |
| 19 | 0432015 | LEVER Assy, Spark |
| 21 | 0432572 | ROLLER & SLEEVE ASSY |
| 24 | 0308776 | O-RING |
| 26 | 0338676 | BUMPER, Idle stop |
| 27 | 0432684 | SHELL |
| 29 | 0334788 | LINK, Throttle cam |
| 31 | 0314136 | VIS, came de papillon |
| 35 | 0432722 | CAM-THROTTLE |
| 37 | 0306418 | VIS, ancrage |
| 38 | 0333766 | ANCHOR BLOCK |
| 39 | 0334175 | RETAINER |
| 40 | 0300646 | VIS, ancrage |
