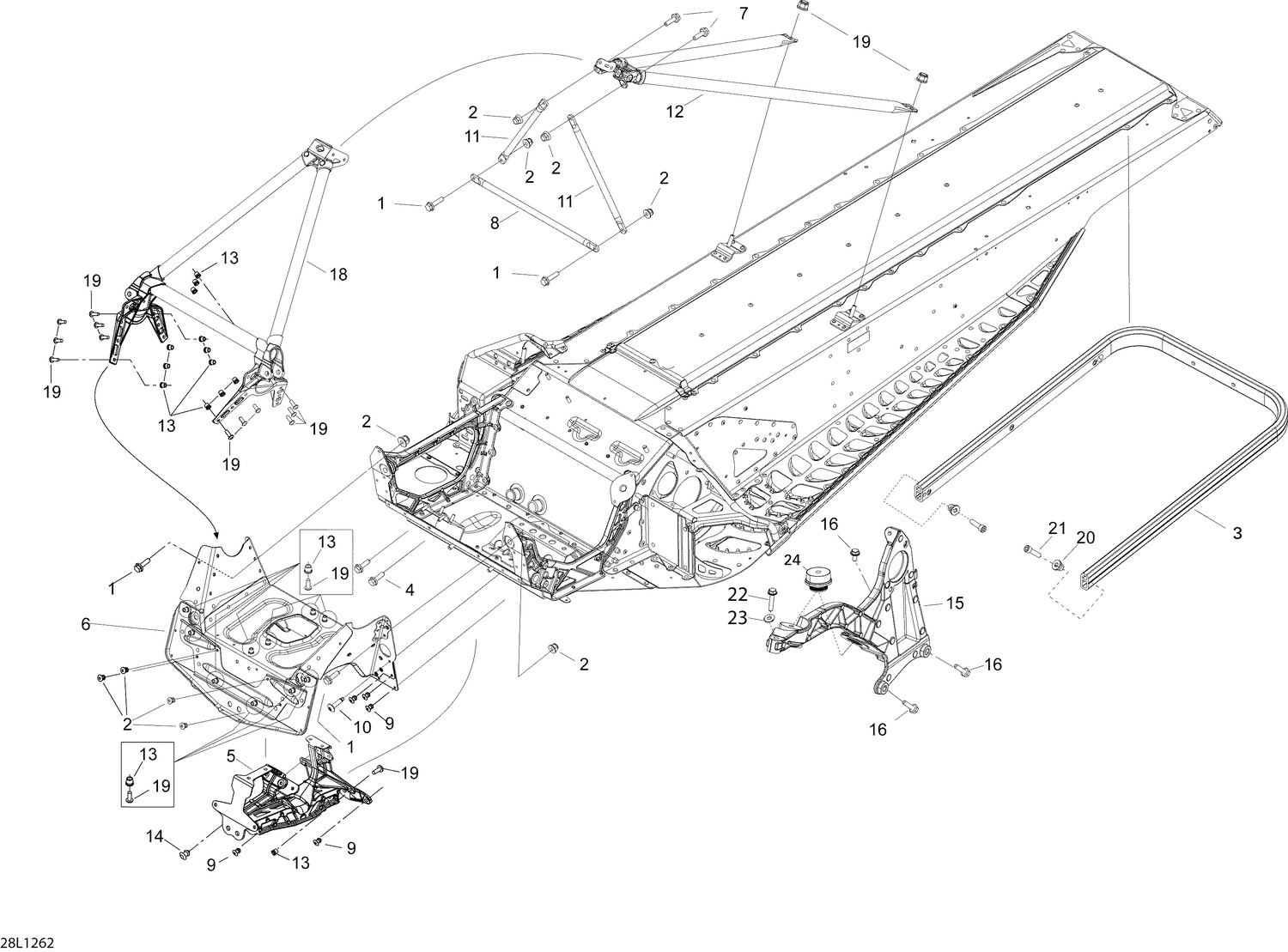

| Ref | Part Number | Description |
|---|
| 1 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3 |
510005418 |
Rack bar |
| 4 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 5 |
518327487 |
Support This part replaces 518325925. |
| 6 |
518327049 |
Cross member (S-module) |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 8 |
518326355 |
Center Column Support |
| 9 |
293150144 |
Stavex Rivet |
| 10 |
210262050 |
Forming Screw M6 x 20 This part replaces 210262080. |
| 11 |
518326848 |
Upper Column Support |
| 12 |
518326685 |
Rear Member |
| 13 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 14 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 15 |
415130014 |
ASS'Y BRACE KIT - Call your local BRP dealership This part replaces 518326142. |
| 16 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 17 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 18 |
518326970 |
Front Member This part replaces 518326555. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
510005287 |
Bushing |
| 21 |
205504044 |
SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership |
| 22 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 23 |
234281474 |
Conical Spring Washer M8 |
