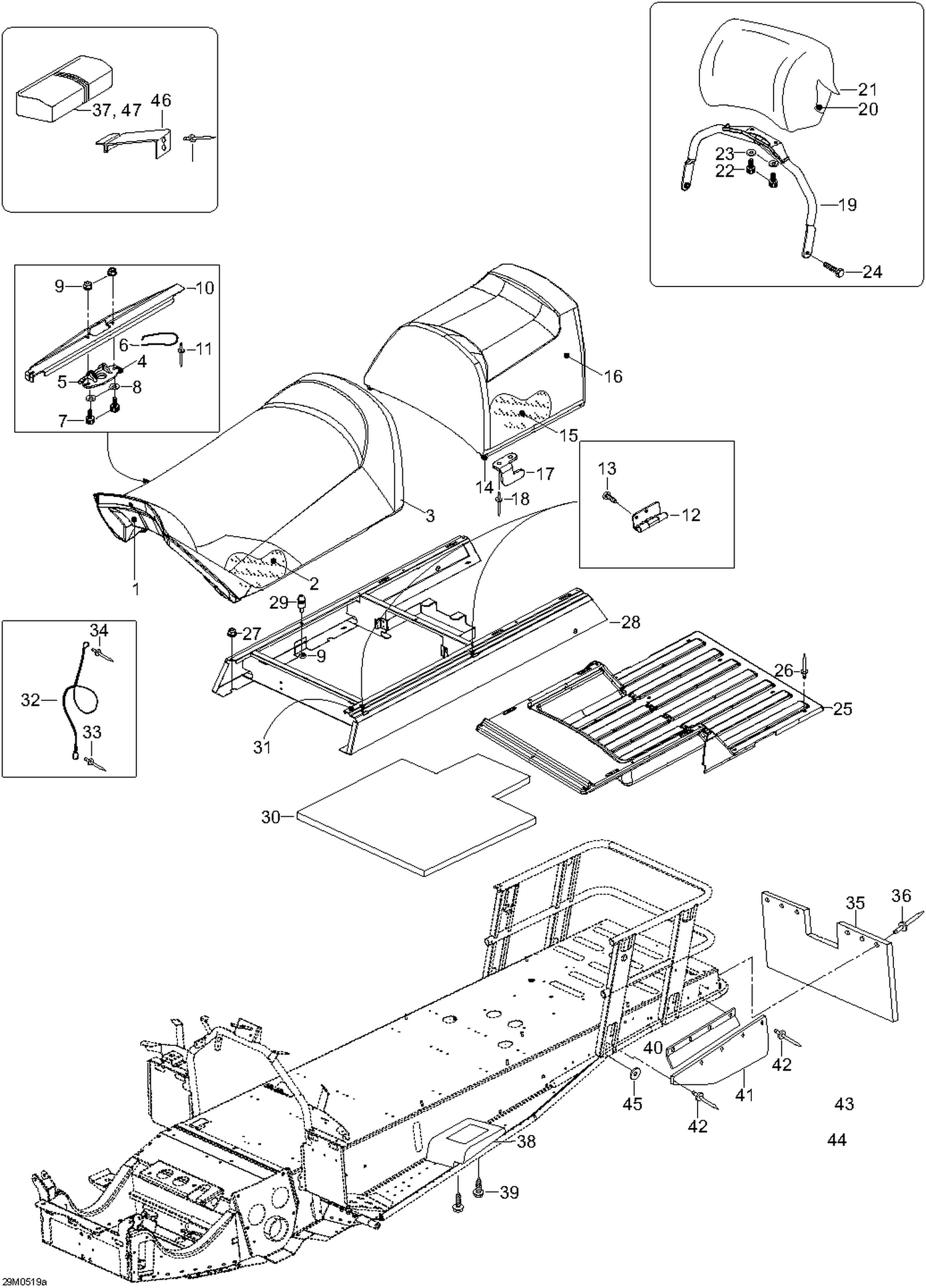

| Ref | Part Number | Description |
|---|
| 1 |
605251388 |
SEAT BASE, FRONT - Call your local BRP dealership |
| 2 |
605251389 |
Foam. Front |
| 3 |
605251422 |
Cover, Front |
| 4 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 5 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 6 |
269700017 |
Latch Spring |
| 7 |
M40276 |
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership |
| 8 |
234061410 |
Flat Washer 6 mm |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
605352483 |
SUPPORT PLATE - Call your local BRP dealership |
| 11 |
36108 |
Rivet This part replaces M36083. |
| 12 |
605351798 |
Hinge |
| 13 |
M40890 |
Screw 4,2 X 16 |
| 14 |
605251390 |
SEAT BASE, REAR - Call your local BRP dealership |
| 15 |
605251391 |
Foam, Rear |
| 16 |
605251425 |
Cover |
| 17 |
605351808 |
LH HOOK - Call your local BRP dealership |
| 17 |
605352007 |
RH HOOK - Call your local BRP dealership |
| 18 |
36087 |
Rivet This part replaces M36087. |
| 19 |
605251730 |
Backrest |
| 20 |
605252104 |
FOAM - Call your local BRP dealership |
| 21 |
605251431 |
COVER - Call your local BRP dealership |
| 22 |
M40066 |
Hex. Screw M8 X 16 |
| 23 |
234181401 |
Lock Washer 8 mm |
| 24 |
M40337 |
Hex. Screw |
| 25 |
605151397 |
COVER - Call your local BRP dealership |
| 26 |
M36036 |
Black, Rivet |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 28 |
605251807 |
SEAT BOX - Call your local BRP dealership |
| 29 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 30 |
605352460 |
FOAM - Call your local BRP dealership |
| 31 |
M28413 |
Sealing Strip |
| 32 |
293750070 |
Seat Retainer Cable This part replaces M546777. |
| 33 |
36037 |
Black Rivet This part replaces M36037. |
| 34 |
M36489 |
Rivet |
| 35 |
538629 |
Snow guard This part replaces M538629. |
| 36 |
M36036 |
Black, Rivet |
| 37 |
605352219 |
TOOL SET - Call your local BRP dealership |
| 38 |
414975300 |
RH Rear Footrest |
| 38 |
414975400 |
LH Rear Footrest |
| 39 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870. |
| 40 |
605251248 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 40 |
605251249 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 41 |
5142828 |
Side Snowguard This part replaces M5142828. |
| 42 |
M36097 |
RIVET - Call your local BRP dealership |
| 43 |
M36891 |
Rivet *Rivet |
| 44 |
36005 |
Rivet This part replaces M36005. |
| 45 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 46 |
M5346728 |
SPRING PLATE - Call your local BRP dealership |
