| Ref | Part Number | Description |
|---|
| 2 |
0311375 |
NUT This part replaces 0316659. |
| 4 |
0393354 |
NUT SPRING & SPACER KIT |
| 5 |
0393354 |
NUT SPRING & SPACER KIT This part replaces 0316740. |
| 7 |
0384781 |
DRIVE |
| 9 |
0318499 |
LOCK WASHER |
| 11 |
0384779 |
ARATURE AY |
| 12 |
0386645 |
CAP ASSY ., Commutator |
| 20 |
5007356 |
Kit Ay This part replaces 0582865. |
| 26 |
0511807 |
COVER&GASKET AY |
| 27 |
0333448 |
GASKET This part replaces 0511808. |
| 29 |
0333448 |
GASKET This part replaces 0511810. |
| 34 |
0316109 |
VIS, levier vers support |
| 35 |
0580733 |
FIL, masse solénoïde |
| 38 |
0311217 |
MANCHON, solénoïde |
| 39 |
0330112 |
BRIDE, solénoïde vers démarreur |
| 44 |
0385806 |
LEAD, Starter to solenoid |
| 45 |
0316676 |
LOCKWASHER, Ground |
| 47 |
0584381 |
CÂBLE DE BATTERIE This part replaces 0395390. |
| 50 |
0329816 |
TERINAL |
| 52 |
0306644 |
VIS, capteur de papillon |
| 53 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 56 |
0314576 |
SCREW This part replaces 0328720. |
| 57 |
0326255 |
LEVER, Choke knob |
| 60 |
0323729 |
COVER, Terminal block This part replaces 0389503. |
| 61 |
HOSE, |
Tee to middle carb. 2-3/4" |
| 62 |
HOSE, |
Tee to upper carb. 5" |
| 63 |
HOSE, |
Primer to lower carb. 3-3/8" |
| 64 |
HOSE, |
Tee to primer 4-1/2" |
| 65 |
0583724 |
STATOR ASSY. This part replaces 0581957. |
| 68 |
0511989 |
CONNECTOR |
| 70 |
0319292 |
SCREW, Clamp |
| 71 |
0330153 |
CLAMP, Water valve |
| 73 |
HOSE, |
Primer to tee 7" |
| 74 |
0325569 |
T, amorçage |
| 76 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 78 |
0330777 |
BOLT, Double ended |
| 80 |
0313584 |
SPRING |
| 87 |
0329182 |
VIS, borne |
| 94 |
HOSE, |
Tee to tee 1" length |
| 0394048 |
0394048 |

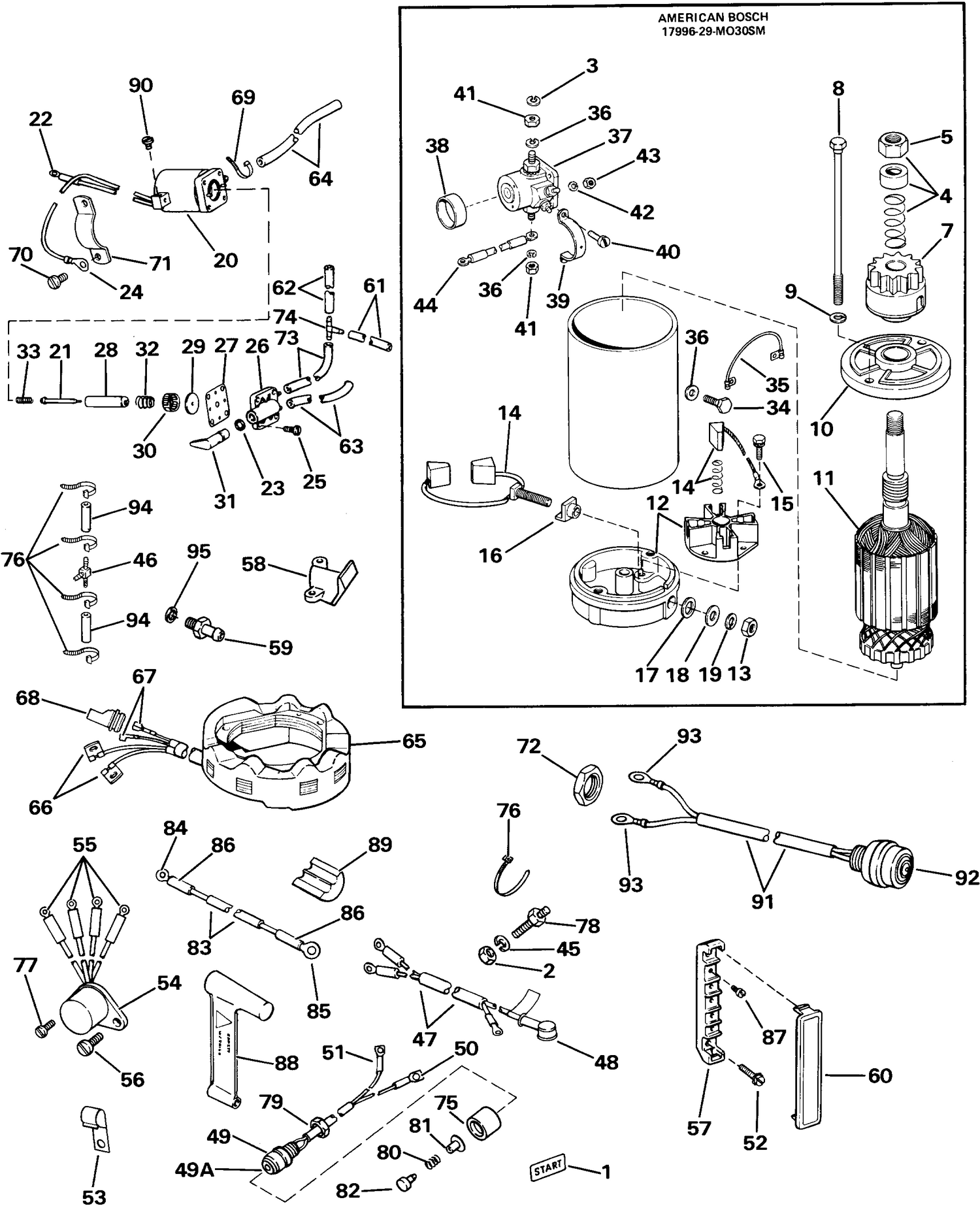

ELECTRIC START KIT |
