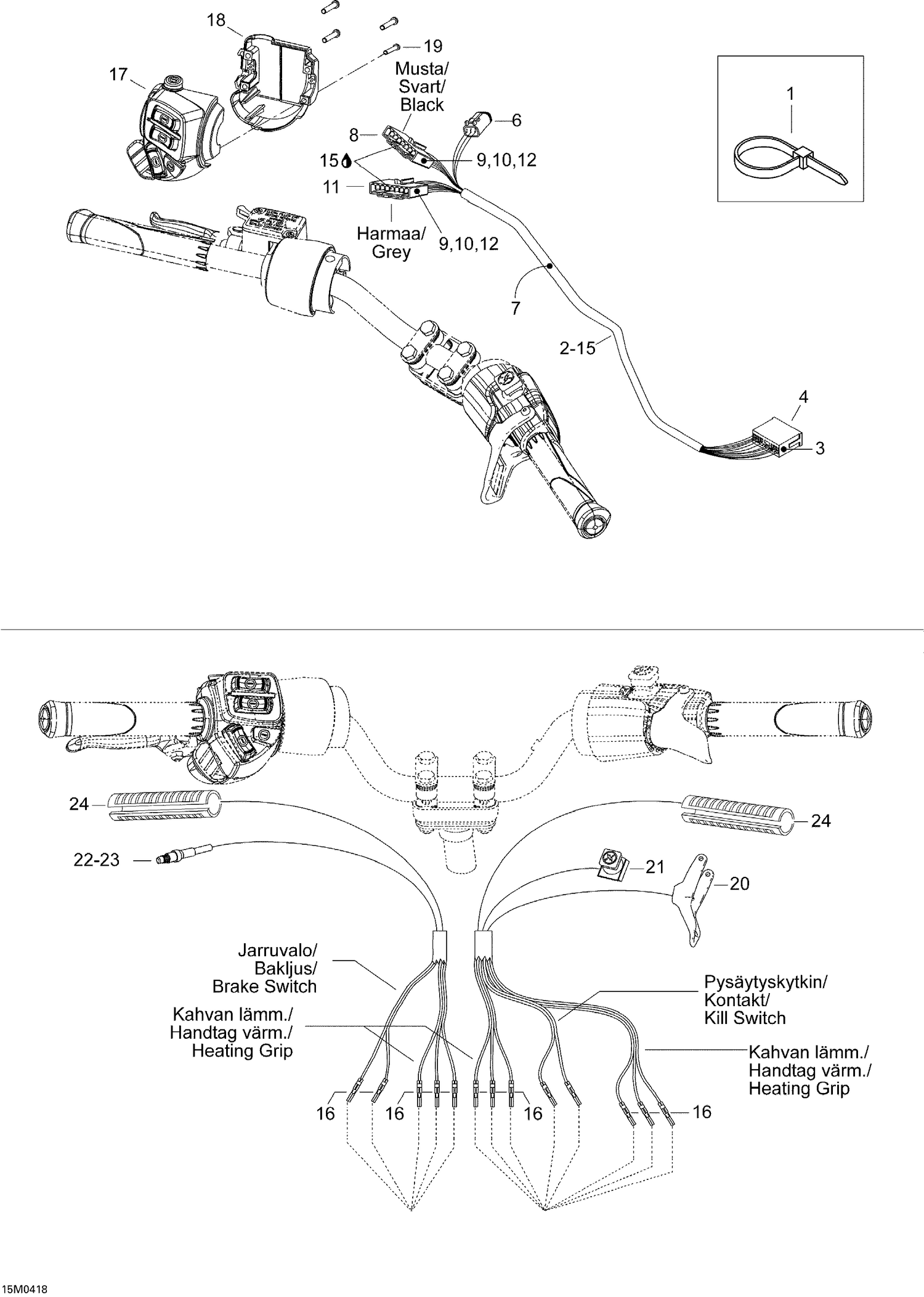

| Ref | Part Number | Description |
|---|
| 1 |
M27010 |
TIE RAP 98MM - Call your local BRP dealership |
| 3 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 4 |
M42621 |
Housing |
| 5 |
515175231 |
Female Terminal |
| 6 |
710000568 |
Housing |
| 7 |
M39015 |
Tubing 12 mm |
| 8 |
515175807 |
FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 9 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership |
| 10 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 11 |
515175810 |
FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 12 |
515175941 |
Female Terminal |
| 13 |
515175819 |
Female Terminal Housing, 8 Circuits |
| 14 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 17 |
515176015 |
LH SWITCH HOUSING - Call your local BRP dealership |
| 18 |
515175926 |
Switch Housing Plate |
| 19 |
M40903 |
Screw 3.5X25 |
| 20 |
512060484 |
Throttle Handle Ass'y This part replaces 512059766. |
| 21 |
515175410 |
Kill Switch |
| 22 |
507032366 |
Microswitch |
| 23 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
