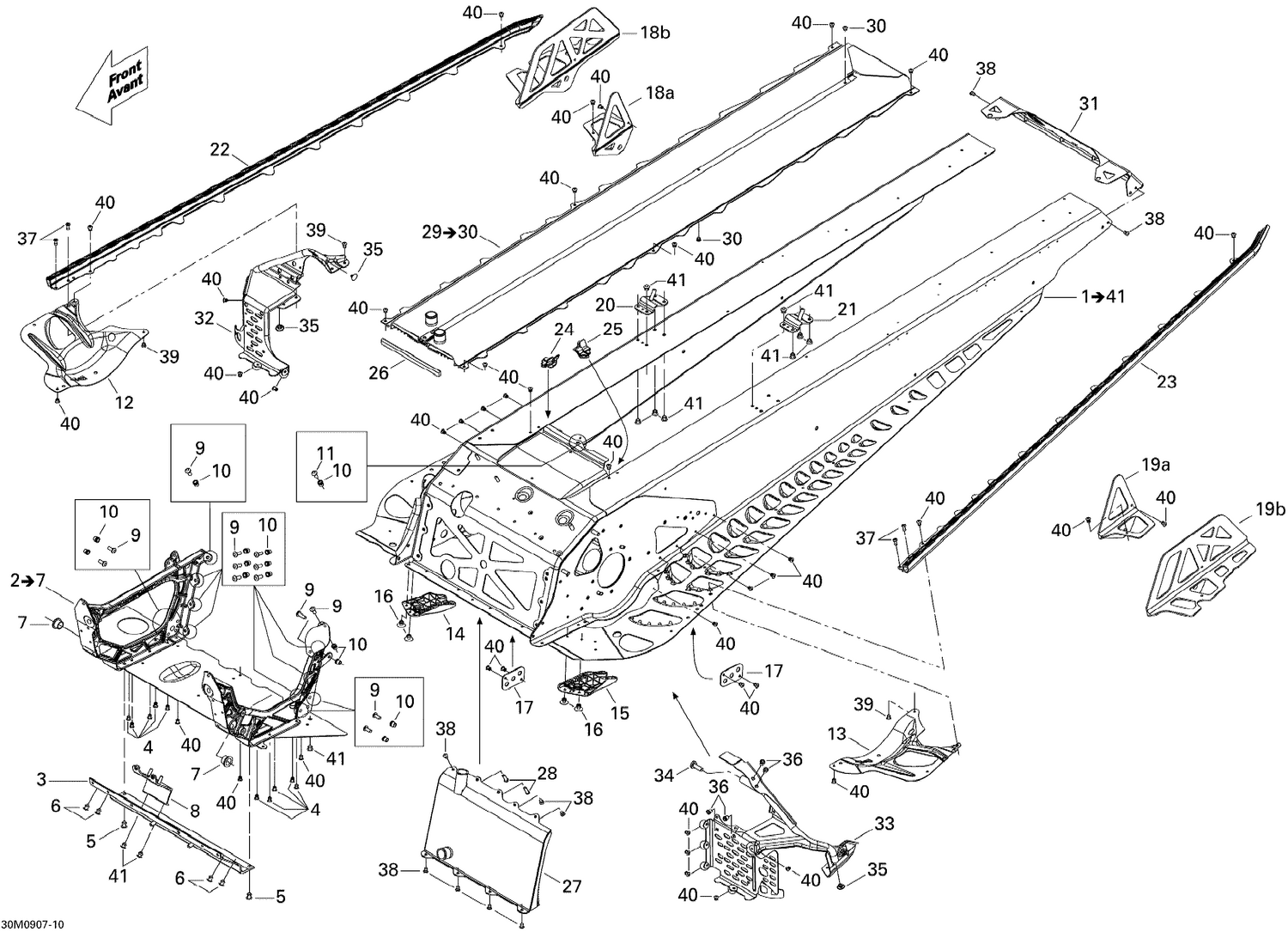

| Ref | Part Number | Description |
|---|
| 3 |
518326198 |
Front Member This part replaces 518325091. |
| 4 |
293150144 |
Stavex Rivet |
| 5 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 6 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 7 |
505072690 |
Leg Bushing This part replaces 505070954. |
| 8 |
518325943 |
MAG Engine Support |
| 9 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 12 |
518324874 |
RH Reinforcement |
| 13 |
518324875 |
LH Reinforcement |
| 14 |
518325782 |
RH Deflector, Black Polypropylene |
| 15 |
518325783 |
LH Deflector, Black Polypropylene |
| 16 |
293150104 |
Pop Rivet 3/16" |
| 17 |
518201321 |
REINFORCEMENT PLATE - Call your local BRP dealership |
| 18a |
XXX |
Not Available As Spare Parts |
| 18b |
518328787 |
RH Bracket This part replaces 518326136. |
| 19a |
XXX |
Not Available As Spare Parts |
| 19b |
518328788 |
LH Bracket This part replaces 518326137. |
| 20 |
518325973 |
RH Rear Base |
| 21 |
518325974 |
LH Rear Base |
| 22 |
518325377 |
RH ROLLER - Call your local BRP dealership |
| 23 |
518325378 |
LH Roller |
| 24 |
518325653 |
RH SEAL - Call your local BRP dealership |
| 25 |
518325654 |
LH SEAL - Call your local BRP dealership |
| 26 |
293200105 |
NEOPRENE SEAL - Call your local BRP dealership |
| 27 |
518326485 |
Front Radiator This part replaces 518325714. |
| 28 |
250300027 |
Clinch Stud M6 X 20 |
| 30 |
293150144 |
Stavex Rivet |
| 31 |
518327105 |
Rear Cap This part replaces 518325421. |
| 32 |
518328938 |
RH Stirup This part replaces 518326032. |
| 33 |
518327935 |
LH STIRUP - Call your local BRP dealership This part replaces 518326021. |
| 34 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 35 |
293730042 |
Full Moon Dart 5 mm |
| 36 |
293450268 |
Insert M5 X 0.8 |
| 37 |
390402300 |
Pop Rivet 3/16" |
| 38 |
390909200 |
Avex Rivet |
| 39 |
390909100 |
Avex Rivet |
| 40 |
293150144 |
Stavex Rivet |
