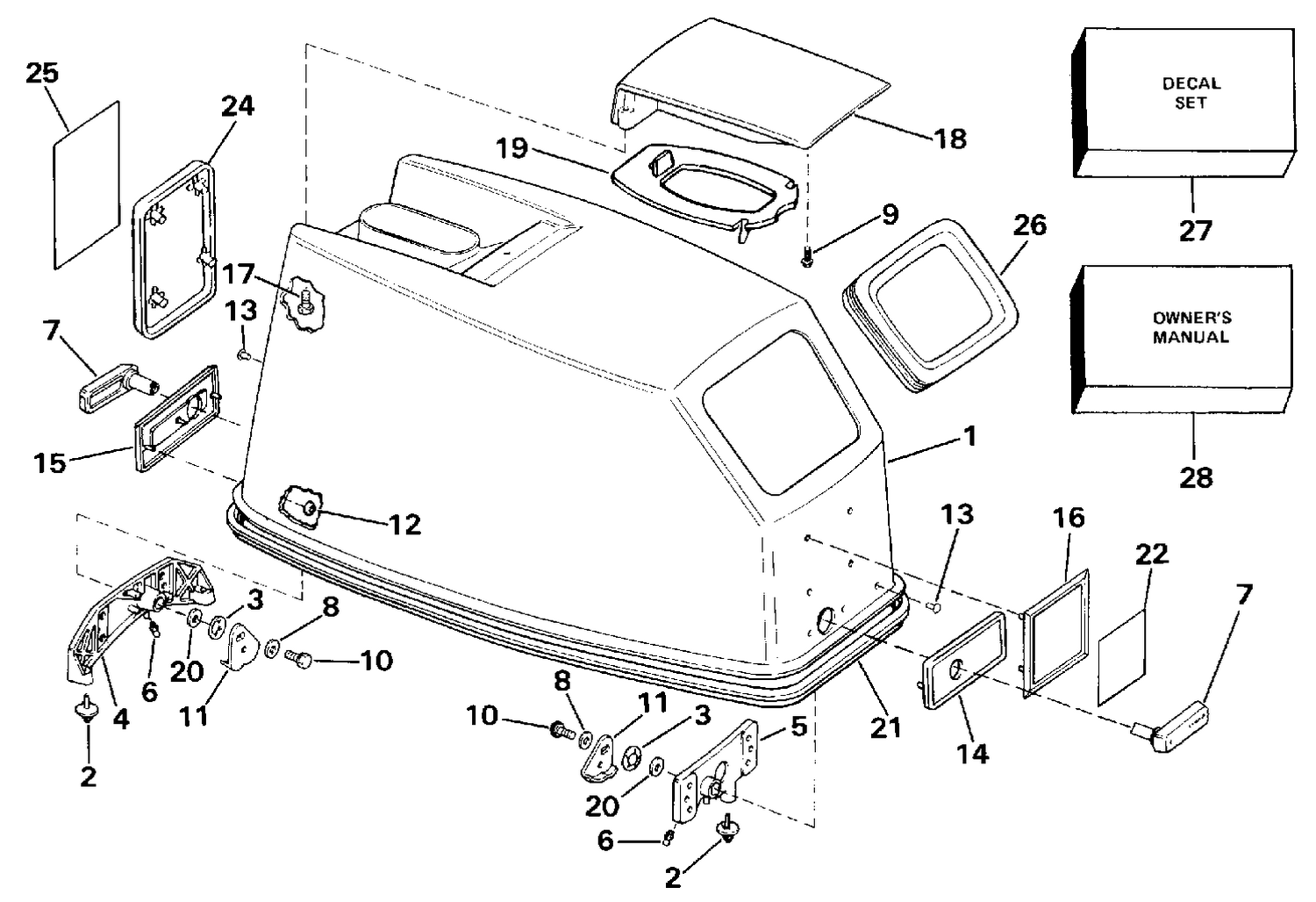

ENGINE COVER - JOHNSON ROPE START ONLY
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0396467 | ENG. COVER ASSY., Johnson |
| 1 | 0398706 | ENG. COVER ASSY., Johnson |
| 10 | 0304027 | VIS, arbre de commande de sens de marche |
| 14 | 0325674 | APPLIQUE, Front |
| 15 | 0325675 | APPLIQUE, Front |
| 16 | 0331486 | APPLIQUE |
| 18 | 0389075 | TILT HANDLE |
| 22 | 0331698 | PLATE, Applique |
| 22 | 0331898 | PLATE, Applique, front This part replaces 0333531. |
| 24 | 0331420 | APPLIQUE, Engine cover |
| 25 | 0331703 | PLATE, Rear |
| 25 | 0333530 | PLATE, Rear |
| 27 | 0396335 | DECAL SET, Johnson |
| 28 | 0396138 | OWNER'S MANUAL |
