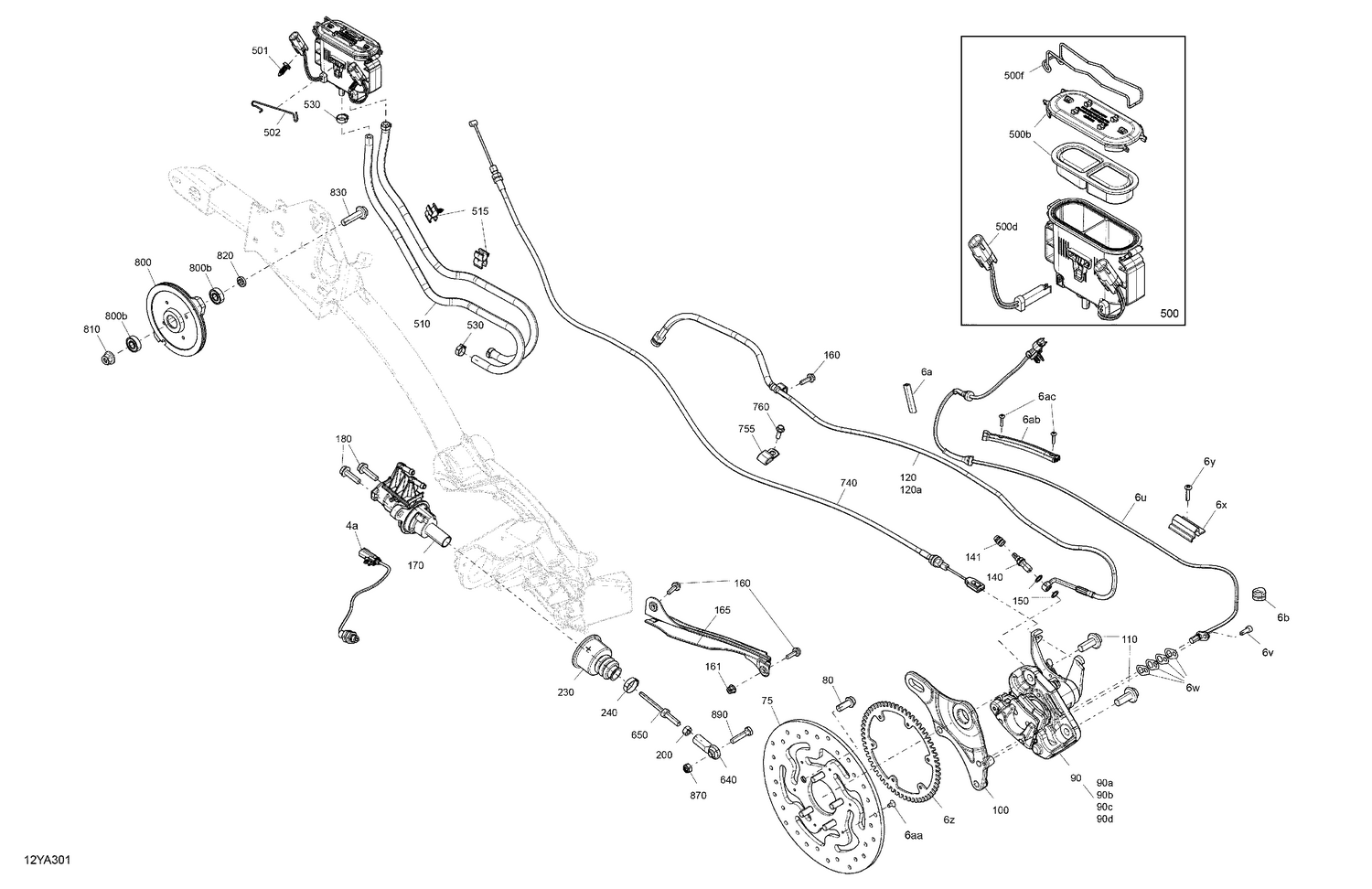

03- Mechanic - Rear Brake
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 4a | 219800558 | Switch Brake Kit This part replaces 710005480. |
| 6a | 219704354 | Trim 1000Mm Long This part replaces 710001741. |
| 6aa | 205851036 | Socket Head Screw M5 X 10 |
| 6ab | 710004281 | Protector |
| 6ac | 250000843 | Torx Truss Screw M6 X 30 |
| 6b | 293720084 | Grommet |
| 6u | 710006982 | Speed Sensor |
| 6v | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 6w | 710002023 | Shim |
| 6x | 710002145 | Hose Support |
| 6y | 250000843 | Torx Truss Screw M6 X 30 |
| 6z | 705601372 | Sensor Wheel |
| 75 | 705601632 | Rear Brake Disk |
| 80 | 250001054 | Hex. Flange Screw M10 X 25 |
| 90a | 219800239 | Brake Pad Kit |
| 90b | 219800240 | Spring/Pin/Clip Kit |
| 90c | 219800241 | Rear Cable Support Kit |
| 90d | 219800242 | Rear Dust Cover |
| 100 | 705601746 | Rear Brake Caliper Support |
| 110 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip |
| 120a | 293650256 | Clamp |
| 140 | 705601201 | Banjo Bolt/ Bleeder |
| 141 | 705601190 | Bleeder Bolt Cap |
| 150 | 414920600 | Washer |
| 160 | 207662054 | Hex. Flange Screw M6 X 20 |
| 161 | 233261494 | Hex. Flange Elastic Nut M6 |
| 165 | 706202587 | Cable Guide |
| 170 | 705600722 | Tandem Cylinder Master |
| 180 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 200 | 232081414 | Hex. Nut M8 |
| 230 | 705600716 | Bellow |
| 240 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 500b | 219800350 | Diaphragm Cover Ass'y |
| 500d | 705601073 | Oil Level Sensor |
| 500f | 705601294 | Spindle Lock |
| 501 | 710002033 | Connector Holder |
| 502 | 705209087 | Stopper Spring |
| 510 | 705601790 | Formed Hose |
| 515 | 709000571 | Hose Support |
| 530 | 293650047 | Crimp Clamp, 15.3-706R |
| 640 | 705601506 | Rod End - Call your local BRP dealership This part replaces 705601340. |
| 650 | 705600468 | Piston Rod |
| 740 | 707001058 | Parking Brake Cable |
| 755 | 515175507 | Open Clamp |
| 760 | 210262050 | Hexagonal Head Screw |
| 800b | 705600458 | Bearing |
| 810 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 820 | 293900087 | Bushing |
| 830 | 207604054 | Hex. Flange Screw M10 X 40 |
| 870 | 233281464 | Elastic Flange Nut M8 |
