Parts Catalog

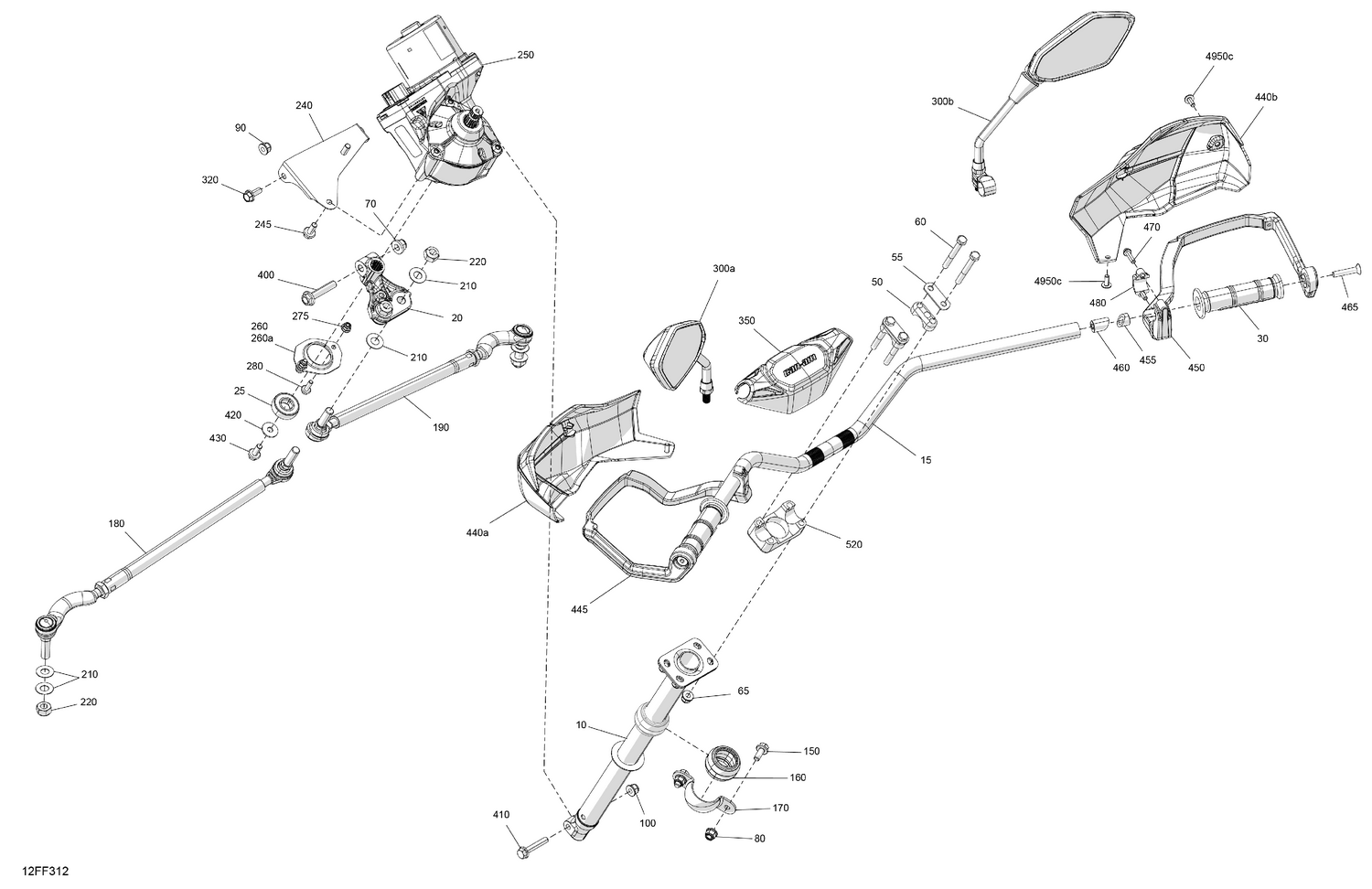

03- Mechanic - Steering

Parts (44)

Ref	Part Number	Description
10	709402739	Steering Column
15	709402985	Handlebar
20	709403064	Pitman Arm
25	709402499	Ball Bearing
30	709400493	Handle Grip
50	709401799	Steering Support
55	709400509	Stiffner
60	207087044	Hex. Screw M8 X 70
65	233281416	Hex. Elastic Flange Nut M8
70	233201436	Hex. Flange Elastic Nut M10 This part replaces 233201416.
80	233281416	Hex. Elastic Flange Nut M8
90	233281416	Hex. Elastic Flange Nut M8
100	233281416	Hex. Elastic Flange Nut M8
150	207682044	Hex. Flange Screw M8 X 20
160	709402169	Spherical Bushing
170	709400827	Upper Column Attachment
180	709402737	LH Tie Rod Ass'y
190	709402738	RH Tie Rod Ass'y
210	706200281	Hardened Washer
220	250100089	Hex. Elastic Hex. Nut M12
240	709402182	Power Steering Support
245	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
250	709402974	Power Steering Ass'y
260a	709402713	Lower Bearing Support
275	233261466	Hex. Flange Elastic Nut M6
280	207562034	Hex. Flange Screw M6 X 20, Scotch Grip
300a	708200963	LH Rearview Mirror
300b	708201092	RH Rearview Mirror
320	207682044	Hex. Flange Screw M8 X 20
350	709402570	Handlebar Trim
400	207505046	Hex. Flange Screw M10 X 50, Scotch Grip
410	250001133	Hex. Flange Screw M8 X 45 Scotch Grip
420	234082410	Flat Washer 8 mm
430	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
440a	709402830	LH Handlebar Air Deflector
440b	709402831	RH Handlebar Air Deflector
445	709402412	LH Deflector Support
450	709402413	RH Deflector Support
455	709403128	Expansion Plug
460	709403130	Expansion Plug
465	205384034	Socket Head Screw
470	229000711	Hex Flange Screw M6 X 25
480	507032477	Clamp And Screw Kit This part replaces 507032726.
520	709402987	Handlebar Riser Block
