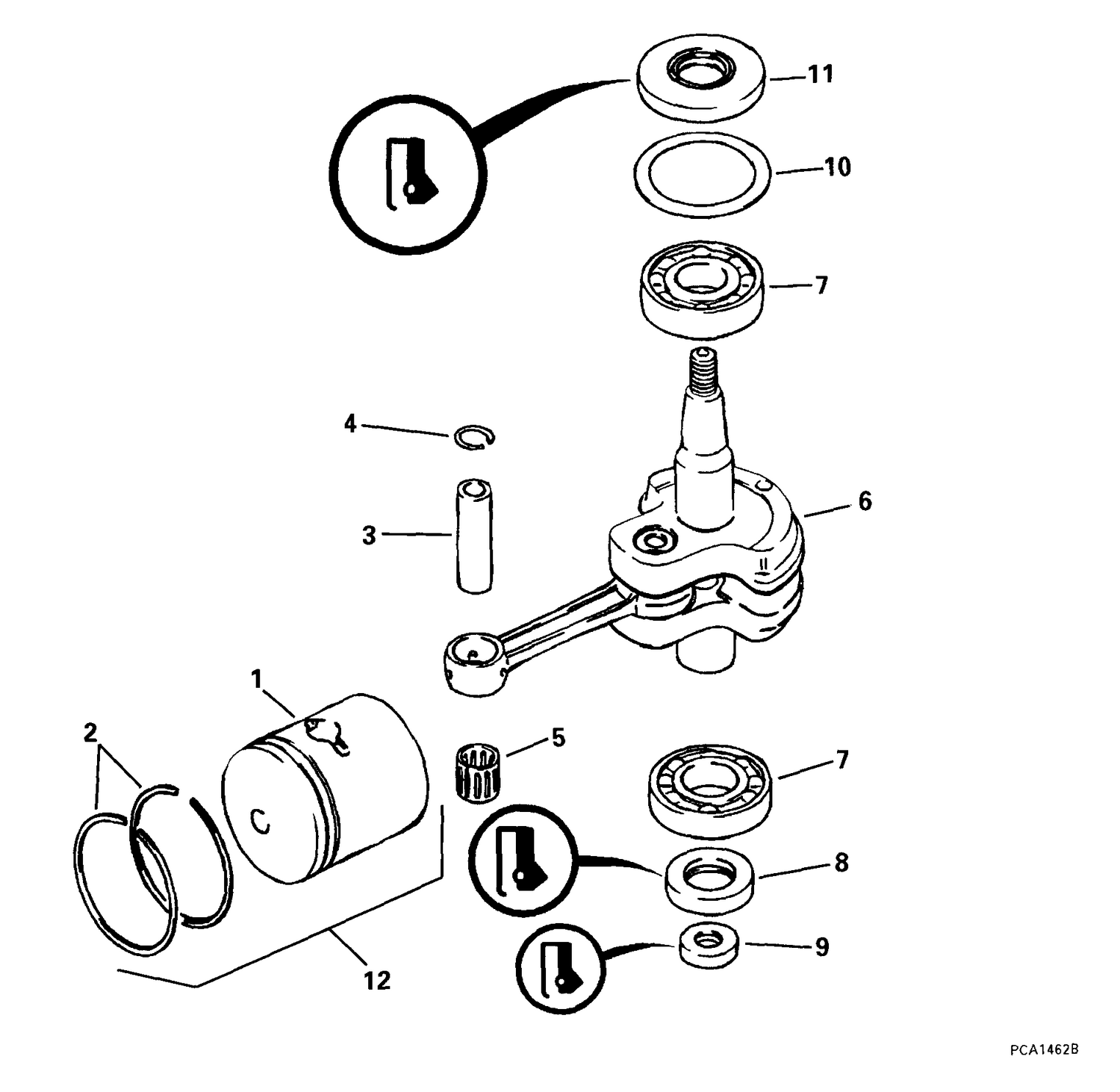

CRANKSHAFT & PISTON
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032488 | PISTON ASSY This part replaces 5030151. |
| 2 | 5030152 | RING SET, Piston |
| 3 | 5030153 | WRIST PIN, Piston |
| 4 | 5030129 | RETAINER, Wrist pin |
| 5 | 5030100 | BEARING, Wrist pin |
| 6 | 5030155 | CRANKSHAFT ASSY. |
| 8 | 5030110 | SEAL, Crankshaft, lower |
| 9 | 5030109 | SEAL, Driveshaft, upper |
| 10 | 5030067 | THRUST WASHER, Crankshaft |
| 11 | 5030111 | SEAL, Crankshaft, upper |
| 12 | 5030350 | PISTON & RING SET, 0.25MM O.S. |
