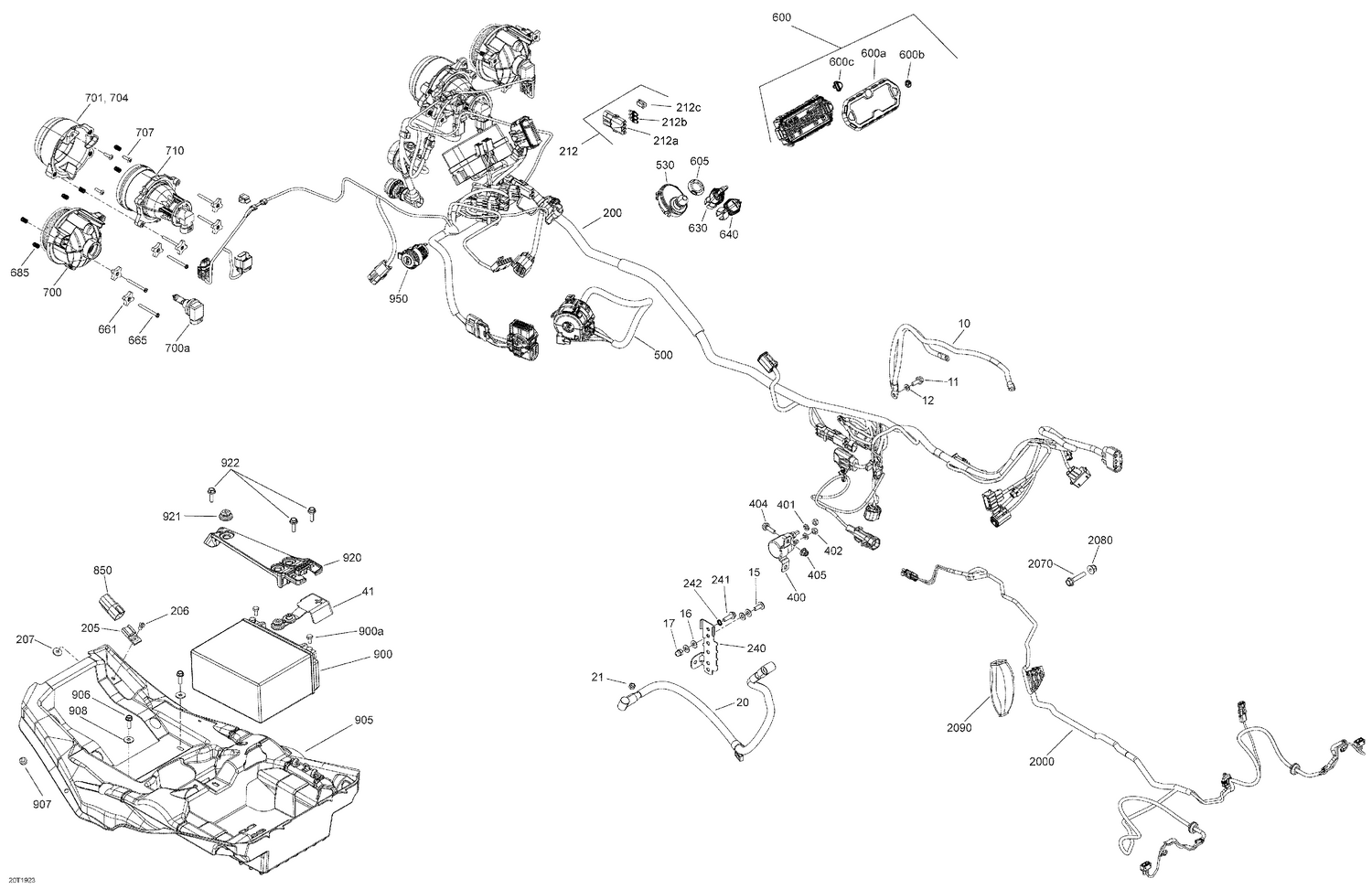

10- Electrical 6X6 - International
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 40 | 710004376 | Positive Cable |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 200 | 710006240 | Harness |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 211 | 710000992 | Clip |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 280 | 414227300 | Clip |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 500 | 710006134 | Switch Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 530 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 600 | 710005599 | Speedometer Ass'y |
| 600a | 710002092 | Trim Ring |
| 600b | 415129320 | Lens |
| 600c | 710001473 | Button |
| 605 | 278002963 | Safety Nut (DESS Switch) |
| 610 | 704904615 | BRP Logo13 mm |
| 630 | 710005232 | Green Key RFID |
| 640 | 710004964 | Grey Key RFID |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710a | 415129249 | Halogen Bulb |
| 800 | 710005842 | Voltage Regulator |
| 802 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 803 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 850 | 710004904 | Connector Plug |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710005528. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
| 2000 | 710009472 | Rear Lighting Wiring Harness This part replaces 710005932. |
| 2070 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 |
| 2080 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
