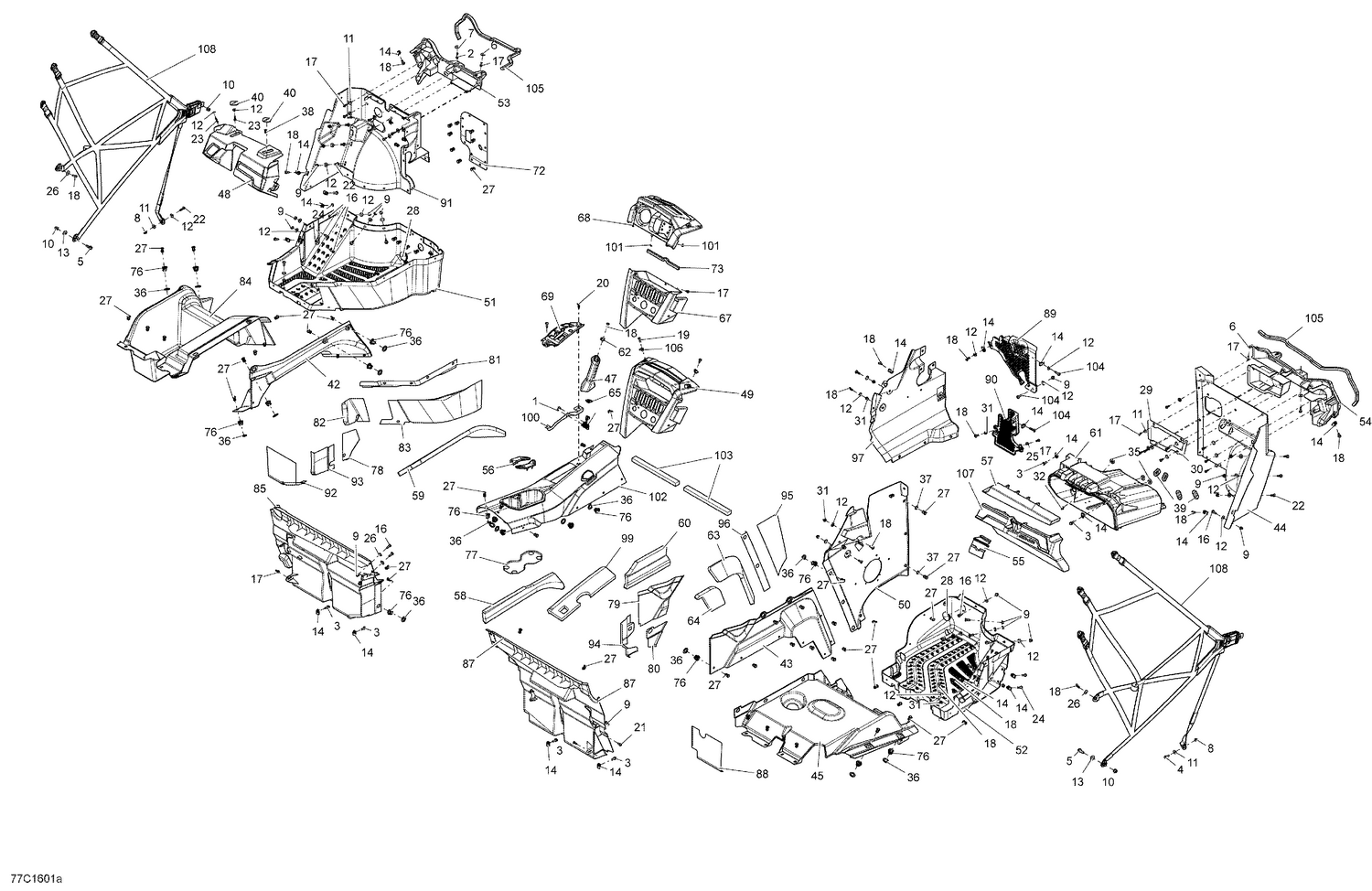

09- Cab Interior
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207162544 | Hex. Screw M6 X 25 |
| 3 | 207662034 | Hex. Flange Screw M6 X 20 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 6 | 224060201 | Flat Washer |
| 7 | 224061201 | Flat Washer |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 233261494 | Hex. Flange Elastic Nut M6 |
| 11 | 234062410 | Flat Washer 6 mm |
| 12 | 234062670 | Stainless Steel Flat Washer |
| 13 | 234082410 | Flat Washer 8 mm |
| 14 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 16 | 250000712 | Torx Screw M6 X 20 |
| 17 | 250000720 | Torx Screw K50 X 16 |
| 18 | 250000722 | Torx Screw M6 X 20 |
| 19 | 250000724 | Torx Screw M5 X 20 |
| 20 | 250000728 | Torx Screw M6 X 25 |
| 21 | 250000755 | Torx Screw M6 X 16 |
| 22 | 250000758 | Torx Screw M6 X 25 |
| 23 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 24 | 250000807 | Torx Truss Screw M6 X 25 |
| 25 | 250200025 | Washer M5 |
| 26 | 250200040 | Flat Washer |
| 28 | 293250242 | Rubber Cover |
| 29 | 293250252 | Upper Seal |
| 30 | 293250253 | Bottom Seal |
| 32 | 293830005 | Rubber Bumper |
| 35 | 414859400 | CAP - Call your local BRP dealership |
| 37 | 506151252 | Washer |
| 38 | 517302785 | Edge Clip |
| 39 | 705003668 | Oblong Grommet |
| 40 | 705003841 | Support Plate |
| 42 | 707900001 | LH Side Console |
| 43 | 707900002 | RH Side Console |
| 44 | 707900004 | RH Front Floor |
| 45 | 707900006 | RH Under Seat Plate |
| 47 | 707900011 | Passenger Handle |
| 48 | 715001250 | Dashboard Ass'y |
| 49 | Not | Available As Spare Part - Not available |
| 51 | 707900022 | LH Lower Floor |
| 52 | 707900023 | RH Lower Floor |
| 53 | 707900029 | SUPPORT_PANEL LH - Call your local BRP dealership |
| 54 | 707900030 | SUPPORT_PANEL RH - Call your local BRP dealership |
| 55 | 707900031 | Latch |
| 56 | 707900036 | Cup Retainer |
| 57 | 707900062 | Trim Glove Box This part replaces 707900038. |
| 58 | 707900620 | Left Upper Lateral Console Foam This part replaces 707900043. |
| 59 | 707900621 | LH Lower Lateral Console Foam This part replaces 707900044. |
| 60 | 707900622 | RH Lateral Console Foam This part replaces 707900045. |
| 62 | 707900048 | Connector Tube |
| 63 | 707900623 | RH Lateral Console Foam This part replaces 707900055. |
| 64 | 707900624 | RH Lateral Console Foam This part replaces 707900056. |
| 66 | 707900062 | Trim Glove Box |
| 69 | 707900070 | Lever Indicator |
| 77 | 707900145 | Heat Sheet |
| 78 | 707900146 | Heat Sheet |
| 79 | 707900147 | Heat Sheet |
| 80 | 707900148 | Heat Sheet |
| 81 | 707900149 | Heat Sheet |
| 82 | 707900150 | Heat Sheet |
| 83 | 707900151 | Heat Sheet |
| 84 | 715002356 | LH UNDER SEAT PLATE KIT - Call your local BRP dealership |
| 87 | 707900166 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 88 | 707900167 | Heat Shield |
| 89 | 707900178 | Grille |
| 90 | 707900180 | Grille |
| 91 | 707900181 | LH Front Floor |
| 92 | 707900182 | Heat Shield |
| 93 | 707900183 | Heat Shield |
| 94 | 707900184 | Heat Shield |
| 95 | 707900190 | Heat Sheet |
| 96 | 707900191 | Heat Sheet |
| 97 | 707900193 | Front Side Dash Panel |
| 99 | 707900619 | Front Central Console Foam This part replaces 707900214. |
| 103 | 293250318 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 104 | 250000843 | Torx Truss Screw M6 X 30 |
| 105 | 219704365 | Was 293200017 Neoprene Seal |
| 106 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 107 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
