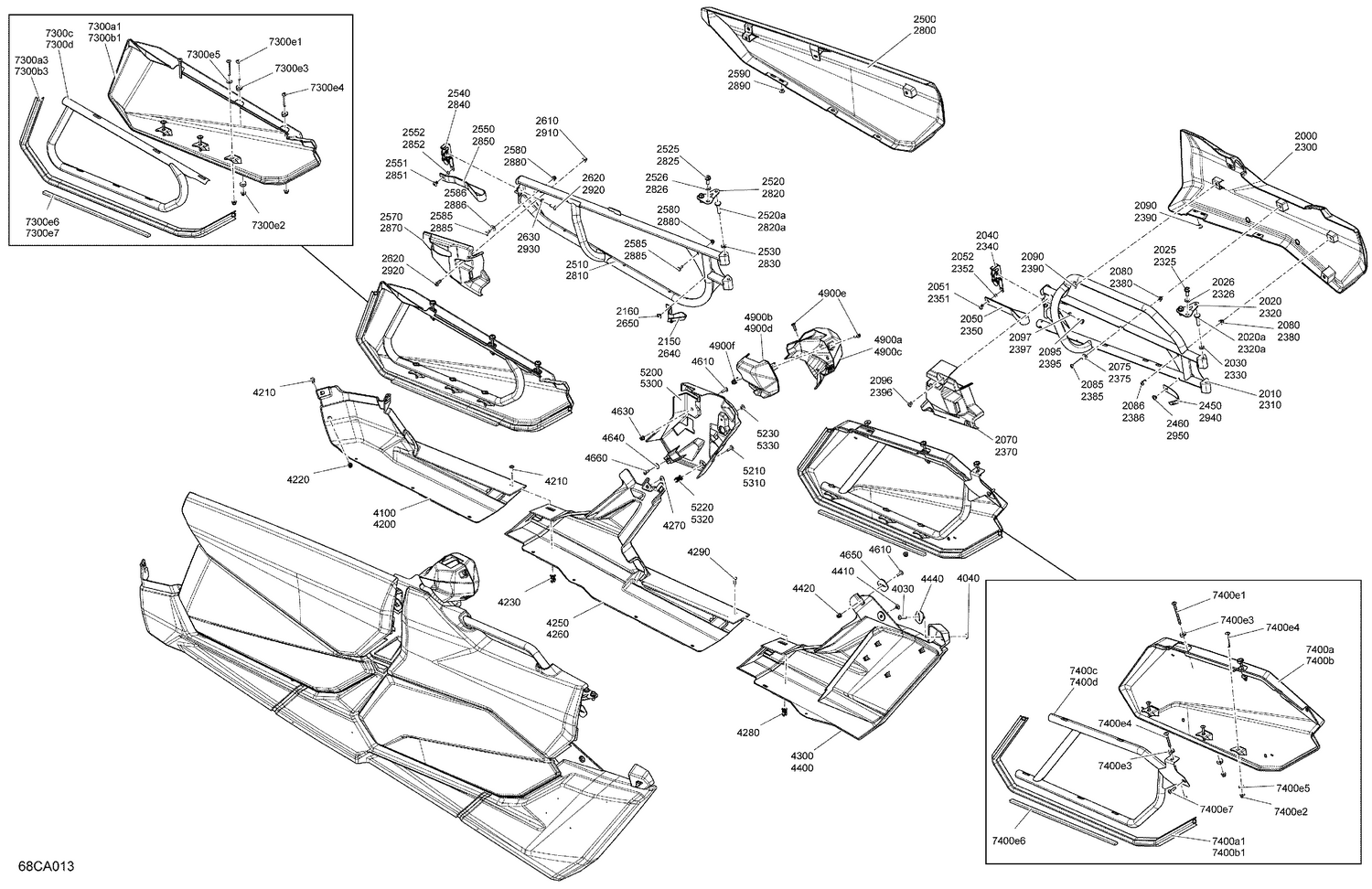

| Ref | Part Number | Description |
|---|
| 2000 |
705014358 |
Mineral Satin Gray, LH Rear Door Panel |
| 2010 |
705016026 |
Manta Green, LH Rear Door This part replaces 705014145. |
| 2020a |
250000913 |
Weld Pin 8mm X 40mm |
| 2025 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2026 |
234081430 |
Flat Washer M8 |
| 2030 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2040 |
705013095 |
LH Latch |
| 2050 |
293850135 |
Belt |
| 2051 |
293150103 |
Pop Rivet 3/16" |
| 2052 |
293900104 |
Bushing |
| 2070 |
715006612 |
LH Lateral Cover Panel Ass'y |
| 2075 |
234062670 |
Stainless Steel Flat Washer |
| 2080 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2085 |
250000748 |
Torx Screw M6 X 45 |
| 2086 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2090 |
293150103 |
Pop Rivet 3/16" |
| 2095 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2096 |
293150103 |
Pop Rivet 3/16" |
| 2097 |
224061121 |
Flat Washer |
| 2150 |
293850129 |
Door Belt |
| 2160 |
293150103 |
Pop Rivet 3/16" |
| 2300 |
705014363 |
Mineral Satin Gray, RH Rear Door Panel |
| 2310 |
705016027 |
Manta Green, RH Rear Door This part replaces 705014146. |
| 2320a |
250000913 |
Weld Pin 8mm X 40mm |
| 2325 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2326 |
234081430 |
Flat Washer M8 |
| 2330 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2340 |
705013096 |
RH Latch |
| 2350 |
293850135 |
Belt |
| 2351 |
293150103 |
Pop Rivet 3/16" |
| 2352 |
293900104 |
Bushing |
| 2370 |
715006613 |
RH Lateral Cover Panel Ass'y |
| 2375 |
234062670 |
Stainless Steel Flat Washer |
| 2380 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2385 |
250000748 |
Torx Screw M6 X 45 |
| 2386 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2390 |
293150103 |
Pop Rivet 3/16" |
| 2395 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2396 |
293150103 |
Pop Rivet 3/16" |
| 2397 |
224061121 |
Flat Washer |
| 2450 |
293850129 |
Door Belt |
| 2460 |
293150103 |
Pop Rivet 3/16" |
| 2500 |
705014335 |
Mineral Satin Gray, LH Front Door Panel |
| 2510 |
705016018 |
Manta Green, LG Front Door This part replaces 705014087. |
| 2520a |
250000913 |
Weld Pin 8mm X 40mm |
| 2525 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2526 |
234081430 |
Flat Washer M8 |
| 2530 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2540 |
705013095 |
LH Latch |
| 2550 |
293850135 |
Belt |
| 2551 |
293150103 |
Pop Rivet 3/16" |
| 2552 |
293900104 |
Bushing |
| 2570 |
705013535 |
LH Latch Cover |
| 2580 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2585 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2586 |
234062670 |
Stainless Steel Flat Washer |
| 2590 |
293150103 |
Pop Rivet 3/16" |
| 2610 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2620 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2630 |
224061121 |
Flat Washer |
| 2640 |
293850129 |
Door Belt |
| 2650 |
293150103 |
Pop Rivet 3/16" |
| 2800 |
705014341 |
Mineral Satin Gray, RH Front Door Panel |
| 2810 |
705016019 |
Manta Green, RH Front Door This part replaces 705014088. |
| 2820a |
250000913 |
Weld Pin 8mm X 40mm |
| 2825 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2826 |
234081430 |
Flat Washer M8 |
| 2830 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2840 |
705013096 |
RH Latch |
| 2850 |
293850135 |
Belt |
| 2851 |
293150103 |
Pop Rivet 3/16" |
| 2852 |
293900104 |
Bushing |
| 2870 |
705013536 |
RH Latch Cover |
| 2880 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2885 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2886 |
234062670 |
Stainless Steel Flat Washer |
| 2890 |
293150103 |
Pop Rivet 3/16" |
| 2910 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2920 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2930 |
224061121 |
Flat Washer |
| 2940 |
293850129 |
Door Belt |
| 2950 |
293150103 |
Pop Rivet 3/16" |
| 4030 |
250000807 |
Torx Truss Screw M6 X 25 |
| 4040 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4100 |
705009513 |
LH Central Lateral Panel |
| 4200 |
705009514 |
RH Central Lateral Panel This part replaces 705009514. |
| 4210 |
250000722 |
Torx Screw M6 X 20 |
| 4220 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4230 |
705016606 |
Insert This part replaces 705010872. |
| 4250 |
705015741 |
LH Rear Central Lateral Panel |
| 4260 |
705015742 |
RH Rear Central Lateral Panel |
| 4270 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 4280 |
705016606 |
Insert This part replaces 705010872. |
| 4290 |
250000722 |
Torx Screw M6 X 20 |
| 4300 |
705010676 |
LH Rear Lateral Panel |
| 4400 |
705010677 |
Deep Black, RH Rear Lateral Panel |
| 4410 |
293150104 |
Pop Rivet 3/16" |
| 4420 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4440 |
705003841 |
Support Plate |
| 4610 |
250000722 |
Torx Screw M6 X 20 |
| 4630 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4640 |
234062670 |
Stainless Steel Flat Washer |
| 4650 |
705003841 |
Support Plate |
| 4660 |
250000720 |
Torx Screw K50 X 16 |
| 4900a |
705015489 |
LH Central Cage Trim |
| 4900b |
705014860 |
LH Central Cage Trim |
| 4900c |
705015490 |
RH Central Cage Trim |
| 4900d |
705014862 |
RH Central Cage Trim |
| 4900e |
250000722 |
Torx Screw M6 X 20 |
| 4900f |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5200 |
705014368 |
Mineral Satin Gray,LH Central Trim Latch |
| 5210 |
250000722 |
Torx Screw M6 X 20 |
| 5220 |
705016606 |
Insert This part replaces 705010872. |
| 5230 |
293150103 |
Pop Rivet 3/16" |
| 5300 |
705014373 |
Mineral Satin Gray,RH Central Trim Latch |
| 5310 |
250000722 |
Torx Screw M6 X 20 |
| 5320 |
705016606 |
Insert This part replaces 705010872. |
| 5330 |
293150103 |
Pop Rivet 3/16" |
| 7300a1 |
705010271 |
LH Door Panels |
| 7300a3 |
705012018 |
Door Seal |
| 7300b1 |
705010272 |
RH Door Panels |
| 7300b3 |
705012018 |
Door Seal |
| 7300c |
705012750 |
Black, LH Door Frame |
| 7300d |
705012751 |
Black, RH Door Frame |
| 7300e1 |
250000902 |
Torx-Truss M/S M6 X 80 |
| 7300e2 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 7300e3 |
705202223 |
Offset Washer |
| 7300e4 |
250000749 |
Torx Truss Screw M6 X 50 |
| 7300e5 |
234062670 |
Stainless Steel Flat Washer |
| 7300e6 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 7300e7 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 7400a |
705011468 |
LH Rear Door Panel Ass'y |
| 7400a1 |
705012018 |
Door Seal |
| 7400b |
705011469 |
RH Rear Door Panel Ass'y |
| 7400b1 |
705012018 |
Door Seal |
| 7400c |
715006209 |
Deep Black, Door Rigid Lower Rear Kit |
| 7400d |
715006209 |
Deep Black, Door Rigid Lower Rear Kit |
| 7400e1 |
250000902 |
Torx-Truss M/S M6 X 80 |
| 7400e2 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 7400e3 |
705202223 |
Offset Washer |
| 7400e4 |
250000749 |
Torx Truss Screw M6 X 50 |
| 7400e5 |
234062670 |
Stainless Steel Flat Washer |
| 7400e6 |
219704364 |
Neoprene Seal (1PAC=3M) |
