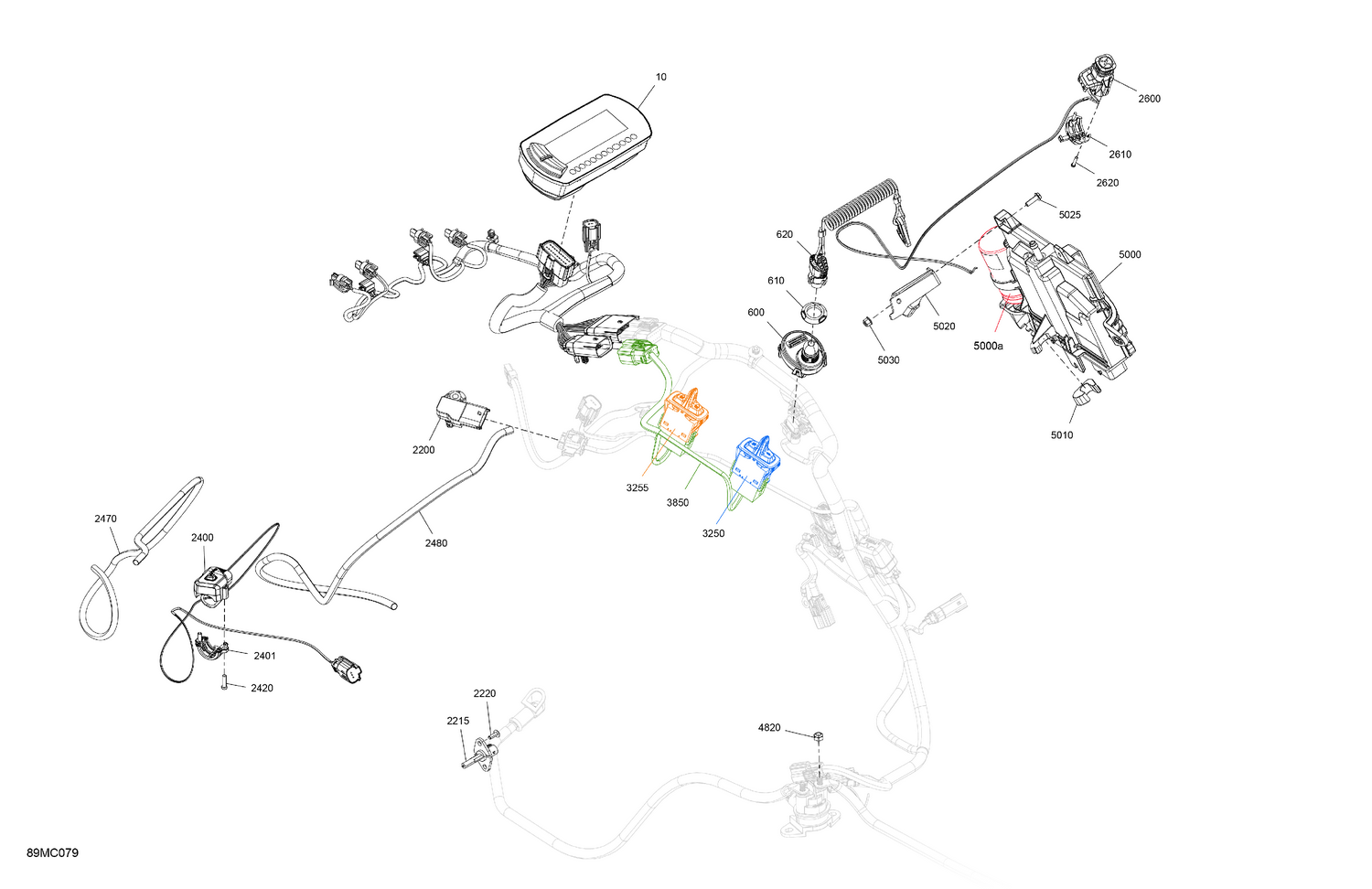

08- Electric - Upper Section
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178226 | Cadran Multifonction Grand Couleur |
| 600 | 710006855 | Ignition Switch |
| 610 | 278004274 | Specialized Nut |
| 620 | 515179475 | Grey, Ski-Doo DESS Key |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2215 | 515176366 | Air Temperature Sensor |
| 2220 | 250001131 | Torx Truss PT K40 x 12 |
| 2400 | 515179056 | Ignition Switch |
| 2401 | 515177952 | Clamp |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 3850 | 515179085 | Console Wiring Harness |
| 4820 | 232561434 | Elastic Stop Nut M6 |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178159 | Module Support |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
