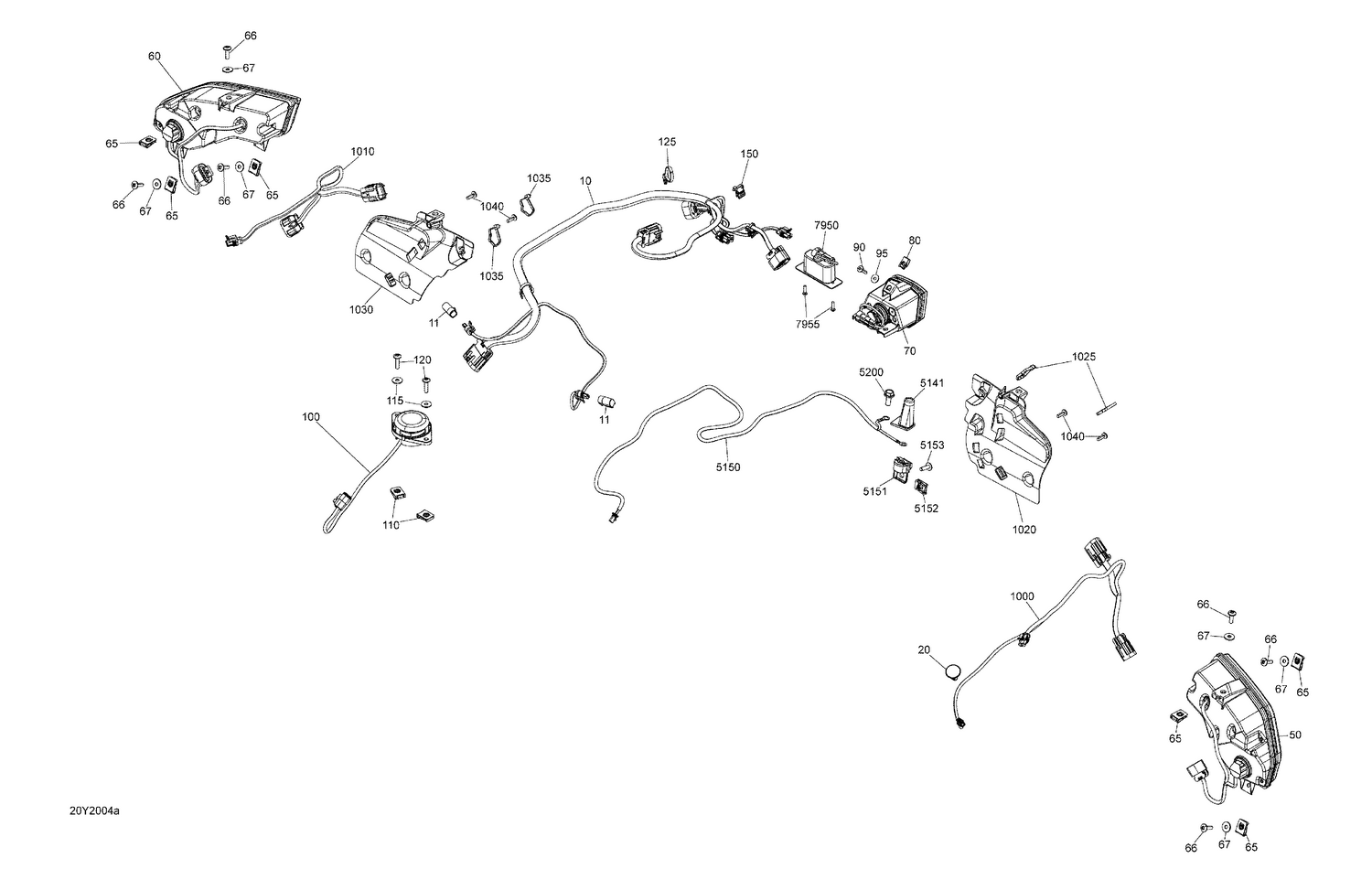

10- Electrical System Cargo
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710007691 | Rear Box Wiring Harness This part replaces 710006884. |
| 11 | 710004900 | Connector Plug |
| 20 | 708400046 | Cap |
| 50 | 710007002 | LH Tail Light |
| 60 | 710007004 | RH Tail Light |
| 65 | 250100208 | Panel Nut M6 X 1.0 |
| 66 | 250000722 | Torx Screw M6 X 20 |
| 67 | 250200164 | Flat washer M6 |
| 70 | 710007005 | Back-Up Light |
| 80 | 250000958 | Panel Nut M5 X 0.8 |
| 90 | 250000715 | Torx Truss Screw M5 X 20 |
| 95 | 234052670 | Stainless Steel Flat Washer M5 |
| 100 | 710008103 | Passenger Detection Switch This part replaces 710005543. |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 115 | 234062670 | Stainless Steel Flat Washer |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 125 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 150 | 710002899 | Clip Tie-Rap |
| 1000 | 710006437 | LH Cargo Harness |
| 1010 | 710006429 | Cargo Harness RH |
| 1020 | 710004643 | LH Connector Support |
| 1025 | 414115200 | Tie-Rap 180 mm |
| 1030 | 710004644 | RH Connector Support |
| 1035 | 414115200 | Tie-Rap 180 mm |
| 1040 | 250000720 | Torx Screw K50 X 16 |
| 5141 | 708302051 | Antenna Cap |
| 5150 | 710006406 | Antenna Cable Ass'y |
| 5151 | 708301797 | Antenna Support |
| 5152 | 250100208 | Panel Nut M6 X 1.0 |
| 5153 | 250000722 | Torx Screw M6 X 20 |
| 5156 | 710005434 | Antenna |
| 5200 | 207682044 | Hex. Flange Screw M8 X 20 |
| 7950 | 710001451 | License Light |
