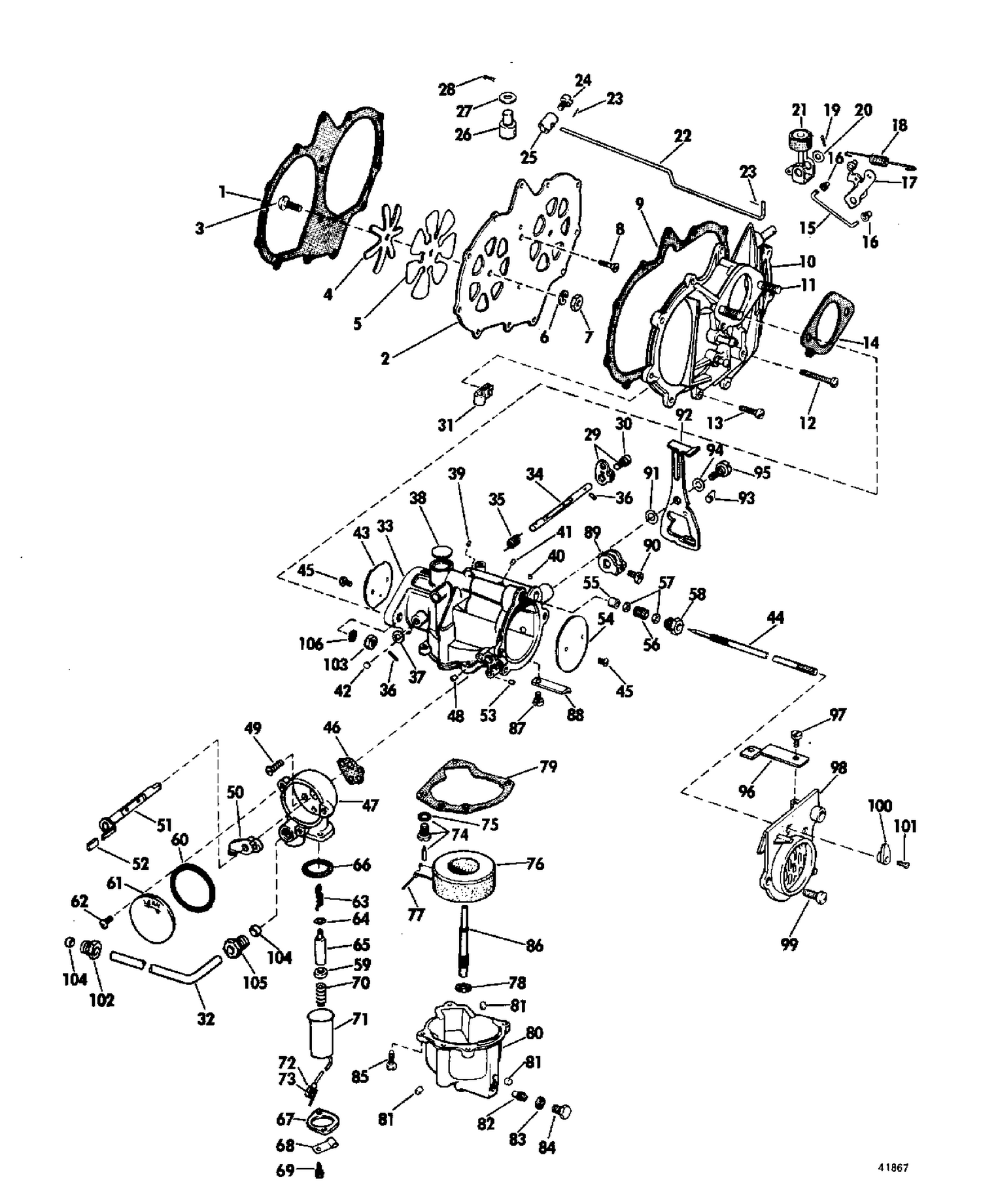

| Ref | Part Number | Description |
|---|
| 1 |
0311365 |
GASEKT, Leaf plate to c'case |
| 4 |
0304709 |
STOP , Leaf |
| 5 |
0308938 |
LEAF |
| 9 |
0311364 |
GASKET, Lead plate to manifold |
| 10 |
0380252 |
INITAKE MANIFOLD ASSY. |
| 11 |
0302822 |
STUD |
| 12 |
0307878 |
SCREW, Long |
| 13 |
0304888 |
SCREW |
| 14 |
0310387 |
GASKET, Carb to manifold |
| 15 |
0309241 |
LINK, Cam follower |
| 16 |
0204708 |
RETAINER |
| 17 |
0378985 |
LEVER, Throttle |
| 18 |
0307408 |
SPRING |
| 20 |
0301827 |
WASHER |
| 21 |
0376477 |
CAM FOLLOWER |
| 22 |
0307824 |
ROD, Thottle control |
| 23 |
0307565 |
PIN |
| 24 |
0304221 |
SCEW,Collar to cable |
| 25 |
0304222 |
COLLAR |
| 26 |
0304226 |
PIN, Pivot |
| 27 |
0551953 |
WASHER |
| 29 |
0378984 |
ARM & SCREW |
| 30 |
0308893 |
SCREW |
| 32 |
0310448 |
TUBING, Heat exchanger |
| 33 |
0382668 |
CARB. BOBY ASSEMBLY |
| 59 |
0312941 |
GUIDE, Solenioid spring |
| 60 |
0310383 |
GASKET, Choke cover |
| 61 |
0379539 |
COVER & BI-METAL, Choke |
| 62 |
0310476 |
SCREW |
| 63 |
0312940 |
SPRING, Arm to plunger |
| 64 |
0312937 |
WASHER SOLENOID PLUNGER |
| 65 |
0381861 |
PLUNGER & PIN ASSY |
| 66 |
0310473 |
GASKET, Solenoid |
| 67 |
0310475 |
RETAINER, Solenoid |
| 69 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 70 |
0312939 |
SPRING, Plunger |
| 71 |
0383598 |
SOLENOID ASSEMBLY |
| 75 |
0310996 |
O RING |
| 76 |
0375792 |
FLOAT & FLOAT ARM |
| 78 |
0307778 |
GASEKT, Carburetor body |
| 79 |
0303750 |
GAKSET, Float bowl |
| 80 |
0379965 |
FLOAT BOWL ASSY |
| 82 |
0328544 |
ORIFICE PLUG, (No. 63D) This part replaces 0309415. |
| 84 |
0307832 |
PLUG, Screw |
| 86 |
0311024 |
NOZZELE,High speed |
| 87 |
0306417 |
SCEW, Spring |
| 88 |
0307384 |
SPRING, Choke |
| 89 |
0378003 |
ARM & PIN,Manual choke |
| 91 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 92 |
0378041 |
LEVER, Choke |
| 93 |
0307433 |
SPRING, Choke |
| 94 |
0307434 |
BOW WASHER, Lever screw |
| 96 |
0307435 |
PANEL, Choke control |
| 98 |
0379221 |
CONTROL PANEL ASSY |
| 100 |
0305442 |
ADJUSTING KNOB |
| 101 |
0551517 |
SCREW |
| 102 |
0306381 |
NUT, Elbow sleeve |
| 103 |
0306320 |
NUT |
| 104 |
0306380 |
SLEEVE, BALL, EXHAUST TUBE |
| 105 |
0310958 |
FITTING, Fuel line |
| 0380243 |
0380243 |
LEAD PLATE ASSEMBLY |
| 0382666 |
0382666 |
CARBURETOR ASSEMBLY |
