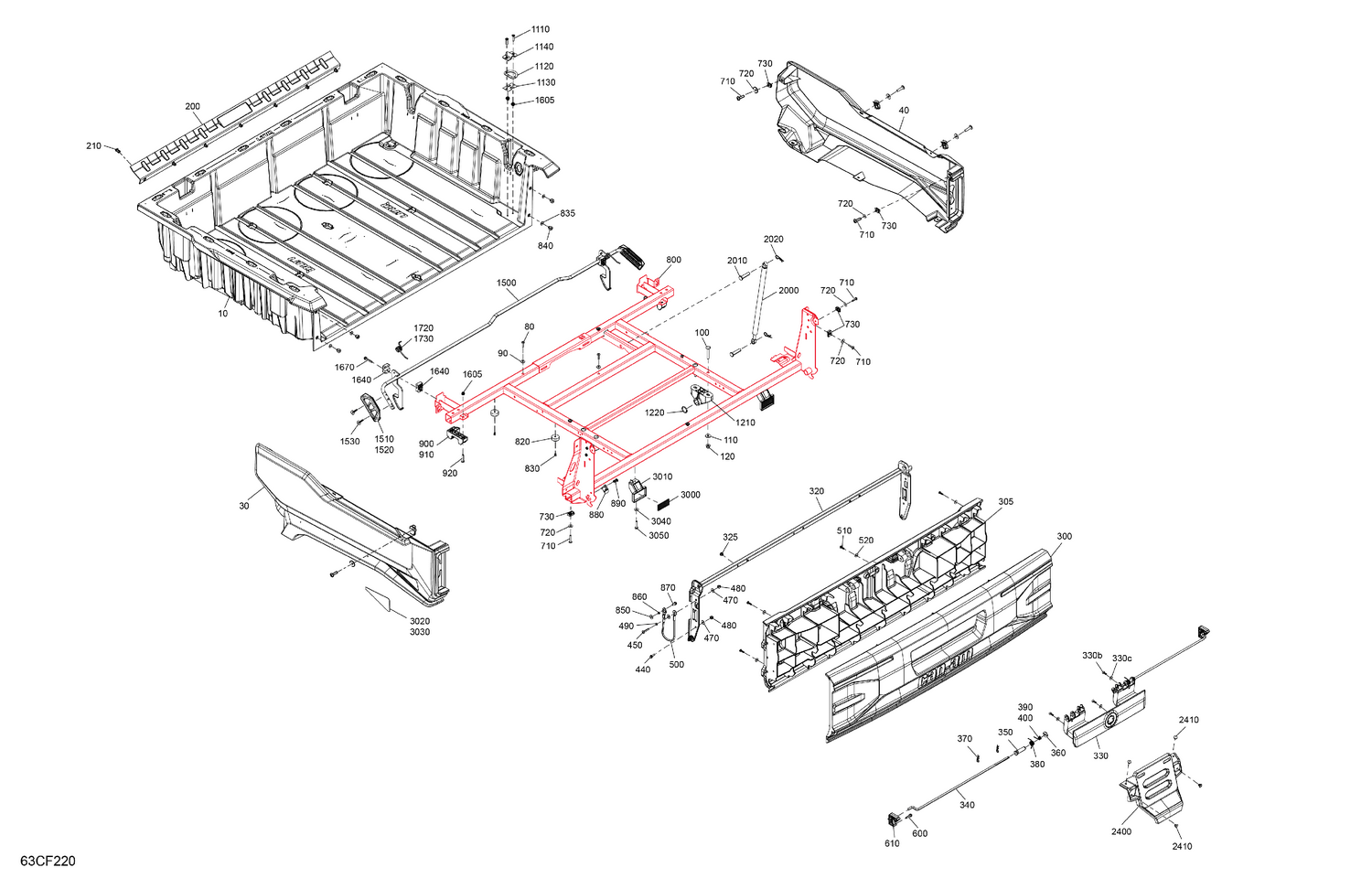

07- Body - Cargo
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715011300 | Open Carrier |
| 30 | 708304696 | LH Base Panel |
| 40 | 708304697 | RH Base Panel |
| 80 | 250000807 | Torx Truss Screw M6 X 25 |
| 90 | 234062670 | Stainless Steel Flat Washer |
| 100 | 207786044 | Carriage Bolt M8 X 60 |
| 110 | 234082670 | Stainless Steel Flat Washer |
| 120 | 233281416 | Hex. Elastic Flange Nut M8 |
| 200 | 708304482 | Deflector |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 300 | 708304429 | Tailgate Panelext |
| 305 | 708304431 | Interior Tailgate Panel |
| 320 | 708304434 | Tailgate Support |
| 325 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 330b | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 330c | 250200025 | Washer M5 |
| 340 | 708304570 | Latch Rod |
| 350 | 708304564 | Bushing Hinge |
| 360 | 708301653 | Washer |
| 370 | 269800431 | Hairpin Cotter |
| 380 | 705009468 | Spring |
| 390 | 705009470 | Spring |
| 400 | 705009471 | Spring |
| 440 | 207662554 | Hex. Flange Screw M6 X 25 |
| 450 | 207663554 | Hex. Flange Screw M6 X 35 |
| 470 | 234062670 | Stainless Steel Flat Washer |
| 480 | 233261494 | Hex. Flange Elastic Nut M6 |
| 490 | 708300737 | Bushing |
| 500 | 708301491 | Cable |
| 510 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 520 | 250200025 | Washer M5 |
| 600 | 207662554 | Hex. Flange Screw M6 X 25 |
| 610 | 708304062 | Latch Stopper |
| 710 | 250000807 | Torx Truss Screw M6 X 25 |
| 720 | 234062670 | Stainless Steel Flat Washer |
| 730 | 250100208 | Panel Nut M6 X 1.0 |
| 800 | 708304465 | Open Carrier Frame |
| 820 | 708304601 | Rubber Stopper |
| 830 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 835 | 250200039 | Flat Washer |
| 840 | 293830005 | Rubber Bumper |
| 850 | 234062670 | Stainless Steel Flat Washer |
| 860 | 708300737 | Bushing |
| 870 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 880 | 708304661 | Clip |
| 890 | 293150230 | Tuflok Plastic Rivet |
| 900 | 708304535 | Stopper |
| 910 | 708304536 | Stopper |
| 920 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1110 | 250001107 | Torx Flat Head Screw T-30 S.Grip M6X25 |
| 1120 | 708302990 | D-Ring |
| 1130 | 708302991 | Tie-Down Ring Spring |
| 1140 | 708302992 | Tie-Down Ring Bracket |
| 1210 | 708304537 | Pivot Support |
| 1220 | 293300131 | O-Ring |
| 1500 | 708304485 | Latch Lever |
| 1510 | 708304483 | LH Latch Handle |
| 1520 | 708304484 | RH Latch Handle |
| 1530 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1605 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1640 | 708304823 | Ring Half |
| 1670 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 1720 | 708305319 | LH Torsion Spring |
| 1730 | 708305320 | RH Torsion Spring |
| 2000 | 715007129 | Gas Shock Absorber |
| 2010 | 250400098 | Pin Clevis |
| 2020 | 414575600 | Hair Pin |
| 2400 | 715011287 | Trailer Warning Label |
| 2410 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 3000 | 520001820 | Red Reflector |
| 3010 | 708304813 | Reflector Support |
| 3020 | 708304957 | Red, LH Reflector |
| 3030 | 708304958 | Red, RH Reflector |
| 3040 | 234062670 | Stainless Steel Flat Washer |
