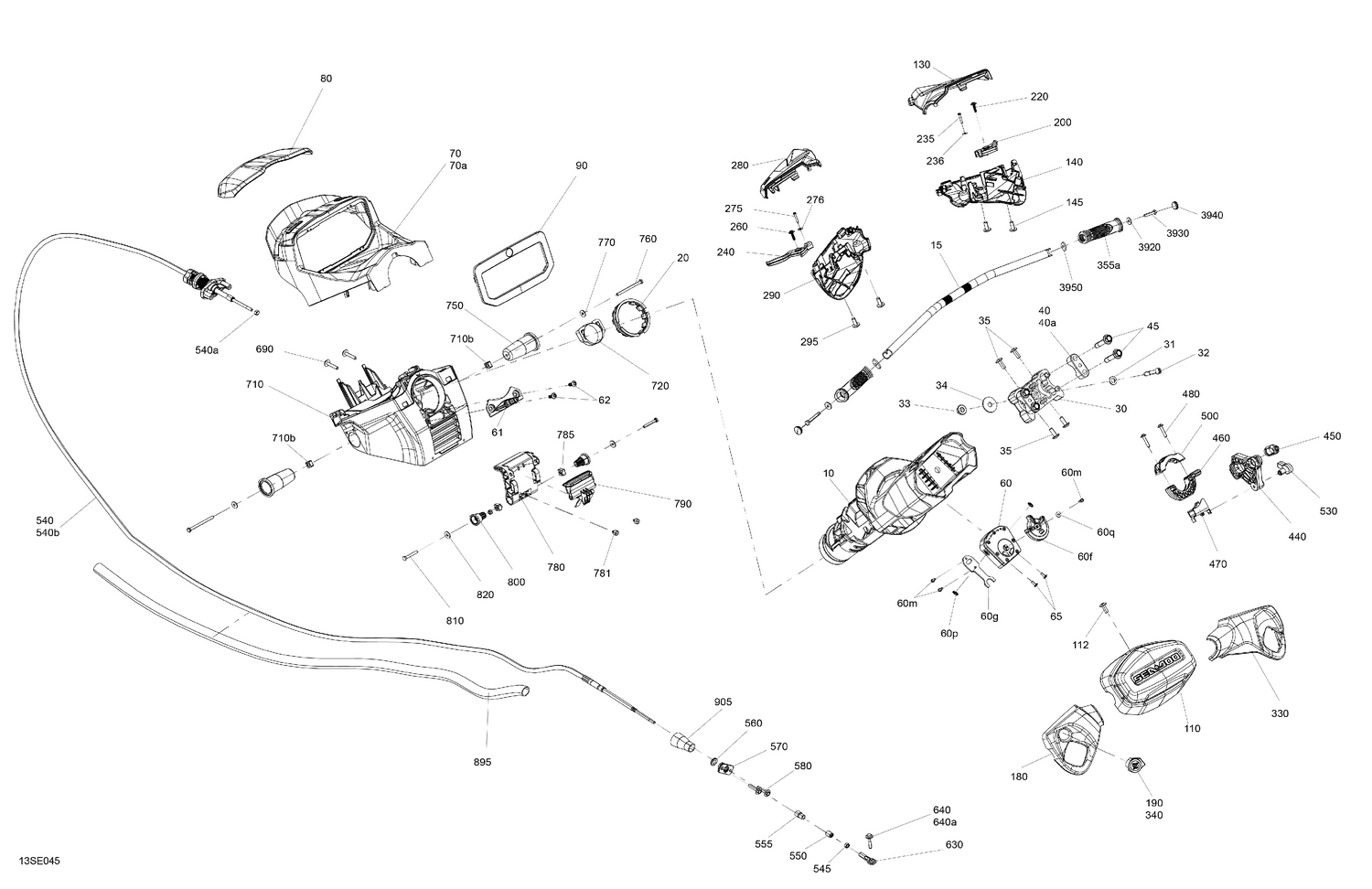

| Ref | Part Number | Description |
|---|
| 10 |
277002416 |
Steering Column |
| 15 |
277002180 |
Deep Black, Handlebar |
| 20 |
277001874 |
Wear Ring |
| 30 |
277002231 |
Anodized Lower Handlebar Support |
| 31 |
234080600 |
Flat Washer M8, Stainless |
| 32 |
205583060 |
Socket Head Screw M8 X 30, Scotch Grip |
| 33 |
233181600 |
Hex. Flange Nut M8 |
| 34 |
250200175 |
Flat Washer 8 mm, Stainless |
| 35 |
250000922 |
Torx Truss Screw M6 X 16 |
| 40a |
506152751 |
Steering Support |
| 45 |
250000834 |
Hex. Screw Flange DIN.6921 S.Grip |
| 60f |
277002226 |
Suspension Adjuster |
| 60g |
277002427 |
Arm |
| 60m |
250001237 |
Socket Head Screw M4 X 16 |
| 60p |
250200114 |
Sealing Washer |
| 60q |
234042600 |
Flat Washer 4 mm, Stainless |
| 61 |
277002265 |
Damper Support |
| 62 |
250001171 |
Plastite Torx Screw Cone HD.M6.81X2 |
| 65 |
250000922 |
Torx Truss Screw M6 X 16 |
| 70a |
277002198 |
Gauge Support |
| 80 |
277002160 |
Cluster Cover |
| 90 |
705015381 |
Speed Gauge Trim |
| 110 |
277002229 |
Steering Pad |
| 112 |
250000922 |
Torx Truss Screw M6 X 16 |
| 130 |
277002040 |
RH Upper Housing |
| 140 |
277002036 |
RH Lower Housing |
| 145 |
250000922 |
Torx Truss Screw M6 X 16 |
| 180 |
277002314 |
LH Cover |
| 190 |
277002327 |
Red Button Switch |
| 200 |
277002138 |
Hand Lever Accelerator |
| 220 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 235 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 236 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 260 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 275 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 276 |
234042600 |
Flat Washer 4 mm, Stainless |
| 280 |
277002041 |
LH Upper Housing |
| 290 |
277002035 |
LH Lower Housing |
| 295 |
250000922 |
Torx Truss Screw M6 X 16 |
| 330 |
277002316 |
RH Cover |
| 340 |
277002320 |
Button Switch |
| 355a |
277002286 |
Handlebar Grip |
| 440 |
295501183 |
Steering Arm Kit |
| 450 |
295501183 |
Steering Arm Kit |
| 460 |
277001987 |
Arm |
| 470 |
277001654 |
Spacer |
| 480 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 500 |
277002085 |
C Clamp |
| 530 |
277002119 |
End Fitting Cable |
| 540a |
211100056 |
Hex. Nut 1/4"-28 |
| 540b |
277001582 |
Wiper Rod |
| 545 |
211100056 |
Hex. Nut 1/4"-28 |
| 550 |
277001582 |
Wiper Rod |
| 555 |
277001583 |
End Piece |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001856 |
Ring Halves |
| 580 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 630 |
277000775 |
Ball Joint |
| 640a |
250000969 |
Hex Screw SEMS M6X35, SS |
| 690 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 710b |
269502544 |
Nut Housing M6 |
| 720 |
277002318 |
Wear Ring |
| 750 |
277001605 |
Steering Support Pivot |
| 760 |
207168060 |
Hex Screw M6 X 80 |
| 770 |
234062600 |
Flat Washer M6, Stainless |
| 780 |
277001996 |
Adjustment Handle |
| 781 |
293830005 |
Rubber Bumper |
| 785 |
269502544 |
Nut Housing M6 |
| 790 |
277002010 |
Lock |
| 800 |
277001652 |
Pivot |
| 810 |
207064060 |
Hex. Screw M6 X 40 |
| 820 |
234062600 |
Flat Washer M6, Stainless |
| 895 |
276000520 |
Corrugated Sheath 22MM - 1250MM |
| 905 |
277002150 |
Rope Guide |
| 3920 |
234062600 |
Flat Washer M6, Stainless |
| 3930 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 3940 |
277000203 |
Black, Cap |
