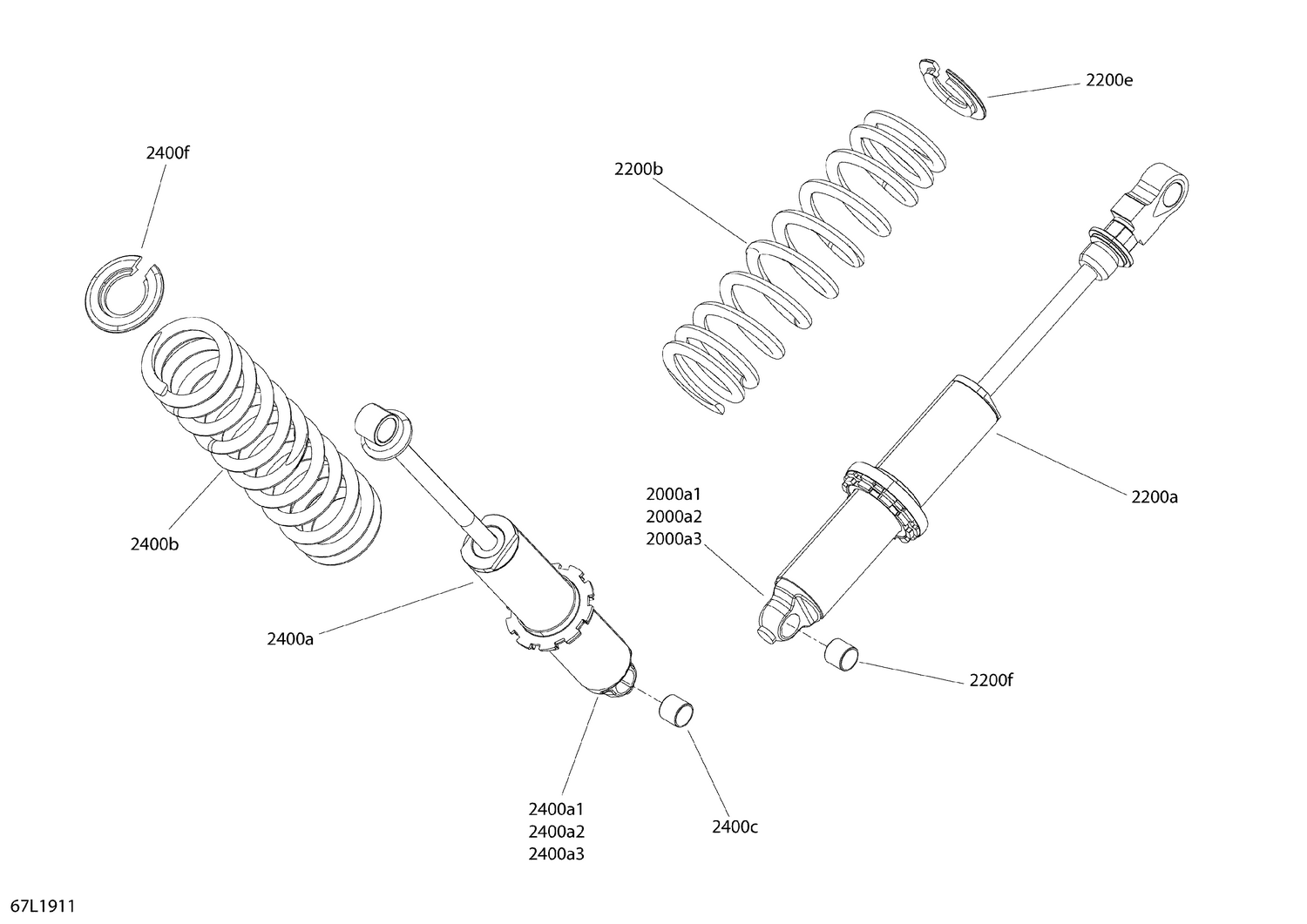

08- Rear Shocks - Commander 800
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2200a1 | 505070398 | Air Valve |
| 2200a2 | 505070399 | Screw |
| 2200a3 | 505070400 | O-Ring |
| 2200b | 503194931 | Spring 350 MM-40 N/MM |
| 2200e | 503196528 | Stopper Spring This part replaces 503194922. |
| 2200f | 503195134 | Glide Bearing |
| 2400a1 | 505070398 | Air Valve |
| 2400a2 | 505070399 | Screw |
| 2400a3 | 505070400 | O-Ring |
| 2400b | 503193294 | Spring 220 MM-40 N/MM |
| 2400c | 503195134 | Glide Bearing |
| 2400f | 503196528 | Stopper Spring This part replaces 503194922. |
