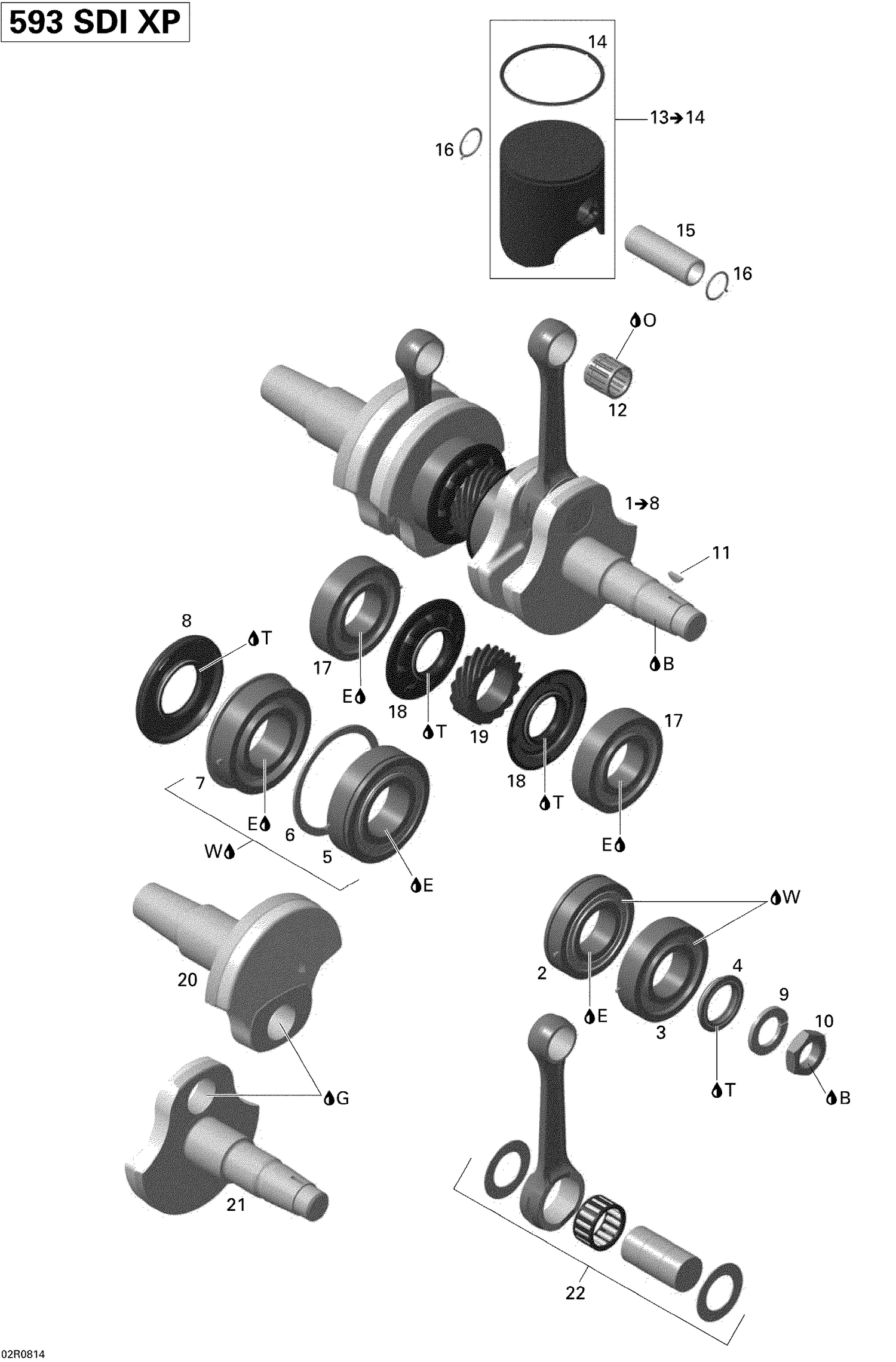

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| E |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| G |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| O |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| T |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 2 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832638. |
| 3 |
420832575 |
Ball Bearing 6207 |
| 4 |
420931795 |
Oil Seal This part replaces 420931792. |
| 5 |
420832672 |
Ball Bearing Sealed, 6208 This part replaces 420832608. |
| 6 |
420926190 |
Washer |
| 7 |
420832702 |
Ball Bearing This part replaces 420832700. |
| 8 |
420931284 |
Oil Seal This part replaces 420931285. |
| 9 |
420945759 |
Lock Washer, 22 mm |
| 10 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 11 |
420246015 |
Woodruff Key |
| 12 |
420832445 |
Needle Bearing |
| 14 |
420815295 |
Semi-Trapez Ring |
| 15 |
420916412 |
Piston Pin This part replaces 420916411. |
| 16 |
420845106 |
Piston Circlip |
| 17 |
420832575 |
Ball Bearing 6207 |
| 18 |
420931455 |
Oil Seal |
| 19 |
420834355 |
CENTRAL GEAR - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - Crankshaft, PTO Side |
| 21 |
Not |
Available As Spare Part - Crankshaft, MAG Side |
| 22 |
420684080 |
KIT-ROD REPAIR MAG-SIDE - Call your local BRP dealership This part replaces 420684653. |
| 22 |
420684081 |
KIT-ROD REPAIR PTO-SIDE - Call your local BRP dealership This part replaces 420684654. |
