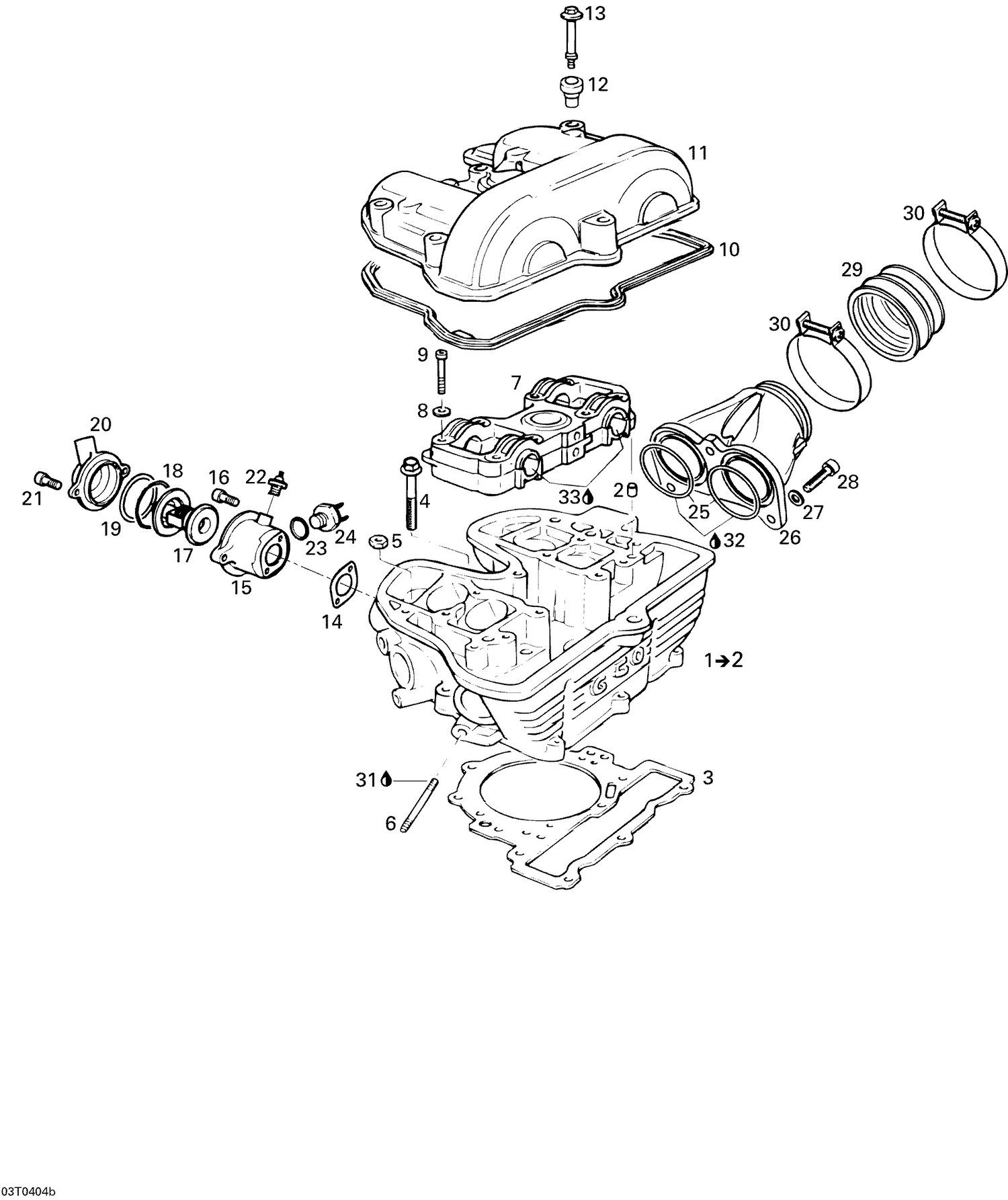

| Ref | Part Number | Description |
|---|
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
420650020 |
GASKET - Call your local BRP dealership |
| 4 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 5 |
233101414 |
Hex. Flange Nut M10 |
| 6 |
420240362 |
STUD M8 X 58 - Call your local BRP dealership |
| 7 |
420211326 |
Camshaft Bridge |
| 8 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 9 |
420241820 |
Socket Head Screw M6 X 45 |
| 10 |
420250900 |
GASKET - Call your local BRP dealership |
| 11 |
420211301 |
VALVE COVER - Call your local BRP dealership |
| 12 |
420260050 |
Rubber Bushing |
| 13 |
420240906 |
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership |
| 14 |
420650060 |
Gasket |
| 15 |
420222430 |
THERMOSTAT HOUSING - Call your local BRP dealership |
| 16 |
420840518 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 17 |
420222463 |
Thermostat |
| 18 |
420245770 |
CORRUGATED WASHER - Call your local BRP dealership |
| 19 |
420650030 |
O-RING - Call your local BRP dealership |
| 20 |
420222440 |
THERMOSTAT COVER - Call your local BRP dealership |
| 21 |
420840512 |
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 22 |
420265392 |
Thermostatic Switch |
| 23 |
420230380 |
O-RING - Call your local BRP dealership |
| 24 |
420265396 |
Inter.Thermost.*Switch-Thermo Fan This part replaces 420265390. |
| 25 |
293300059 |
O-Ring |
| 26 |
420267230 |
Intake Adaptor |
| 27 |
234061410 |
Flat Washer 6 mm |
| 28 |
205062544 |
Socket Head Screw M6 X 25 |
| 29 |
420267240 |
Carburator Flange 52 mm |
| 30 |
293650090 |
Norma Gear Clamp |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
293550030 |
Grease, Super Lube |
