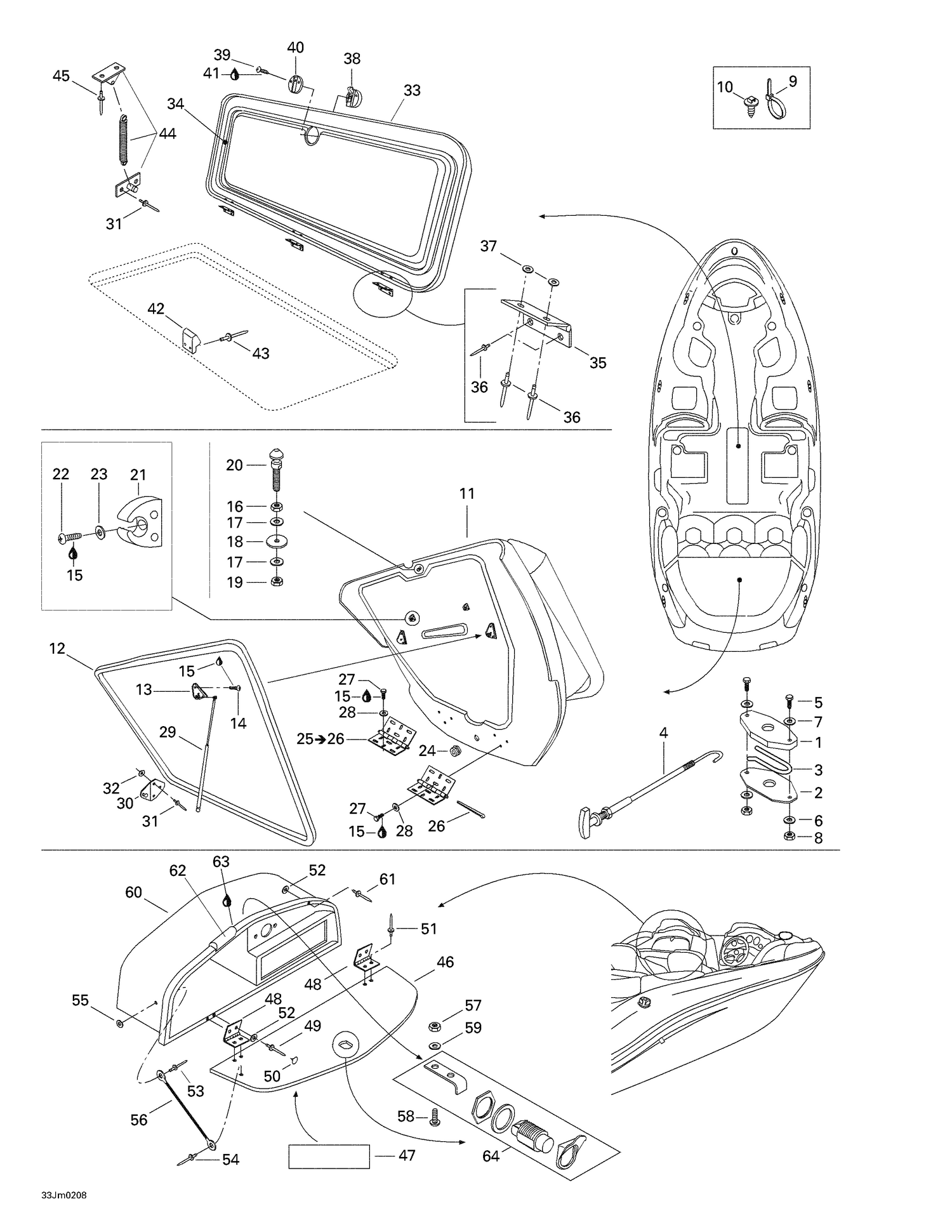

| Ref | Part Number | Description |
|---|
| 1 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 2 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 3 |
204070038 |
SPRING - Call your local BRP dealership |
| 4 |
204070049 |
LATCH CABLE - Call your local BRP dealership |
| 5 |
207163560 |
Hex. Screw M6 X 35 |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
293750008 |
Tie Wrap 368 mm |
| 10 |
293730040 |
Mount Dart This part replaces 293730018. |
| 11 |
204071226 |
Engine Cover |
| 12 |
219704365 |
Was 293200017 Neoprene Seal |
| 13 |
291000654 |
CYLINDER SUPPORT - Call your local BRP dealership |
| 14 |
207141660 |
Hex. Screw M4 X 16 |
| 15 |
293800060 |
Loctite 243, 10 ml |
| 16 |
232100600 |
Hex. Jam Nut M10 |
| 17 |
234002600 |
Flat Washer 10 mm, Stainless |
| 18 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 19 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership |
| 20 |
204100065 |
Latch Stud |
| 21 |
291000642 |
Pole Support |
| 22 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 23 |
234040600 |
Flat Washer 4 mm |
| 24 |
293720017 |
GROMMET - Call your local BRP dealership |
| 26 |
204070205 |
Cotter Pin M2.5 X 12 |
| 27 |
207162560 |
Hex. Screw M6 X 25 |
| 28 |
234061600 |
Stainless Flat Washer M6 |
| 29 |
204071071 |
LH RETAINER CYLINDER - Call your local BRP dealership |
| 30 |
204070065 |
SHOCK BRACKET - Call your local BRP dealership |
| 31 |
293150043 |
Pop Rivet 3/16" |
| 32 |
234051600 |
Flat Washer M5, Stainless |
| 33 |
204073144 |
CENTER COVER - Call your local BRP dealership This part replaces 204071141. |
| 34 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 35 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 36 |
293150088 |
Pop Rivet 3/16" |
| 37 |
234051600 |
Flat Washer M5, Stainless |
| 38 |
204070120 |
LATCH, WHITE - Call your local BRP dealership This part replaces 204070957. |
| 39 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 40 |
204070958 |
CUP BRACKET - Call your local BRP dealership |
| 41 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 42 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 43 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 44 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 45 |
204000081 |
Pop Rivet 3/16" |
| 46 |
204071293 |
Tray Door |
| 47 |
204901024 |
Emblem <<X-20>> |
| 48 |
269700031 |
Hinge |
| 49 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 50 |
204070077 |
Snap Cap (White) |
| 51 |
293150063 |
Pop Rivet 1/8” |
| 52 |
234032600 |
Flat Washer M3, Stainless |
| 53 |
293150008 |
Pop Rivet 3/16" |
| 54 |
293150043 |
Pop Rivet 3/16" |
| 55 |
234052600 |
Flat Washer 5 mm, Stainless |
| 56 |
204071498 |
RETAINER CABLE - Call your local BRP dealership This part replaces 204070116. |
| 57 |
232541600 |
Elastic Stop Nut M4 |
| 58 |
208641260 |
PHILLIPS SCREW M4 X 12 - Call your local BRP dealership |
| 59 |
234040600 |
Flat Washer 4 mm |
| 60 |
204070392 |
Glove Box |
| 61 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 62 |
204070115 |
Neoprene, Meter |
| 204071052 |
RH |
RETAINER CYLINDER - Call your local BRP dealership 204071052 |
