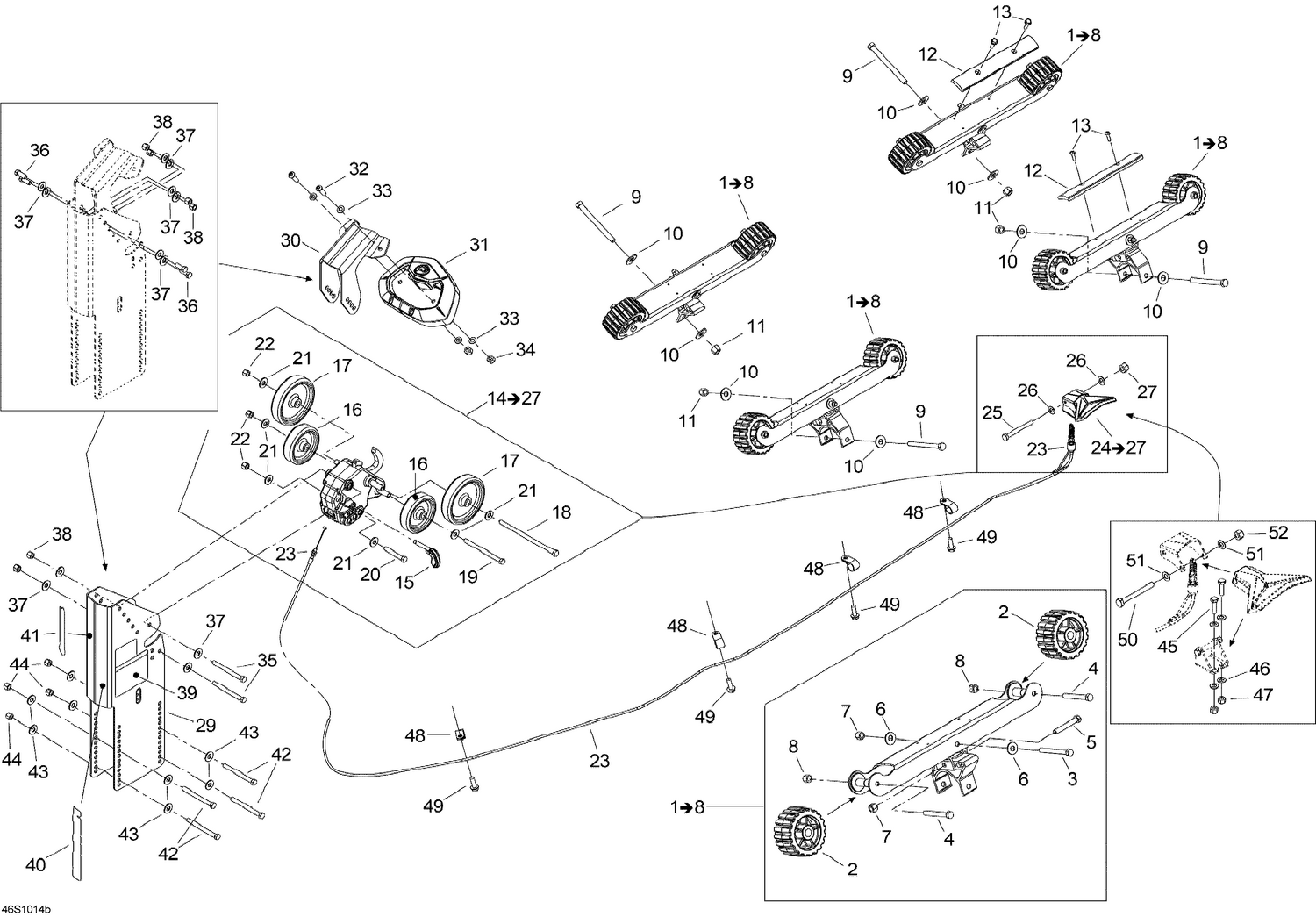

| Ref | Part Number | Description |
|---|
| 2 |
262000028 |
WHEEL - Call your local BRP dealership |
| 3 |
269800314 |
HEX. BOLT 3/8''-16 X 3 1/2'' - Call your local BRP dealership This part replaces 269800167. |
| 4 |
269800315 |
HEX. BOLT - Call your local BRP dealership This part replaces 269800166. |
| 5 |
269800316 |
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106. |
| 6 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 7 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 8 |
269800156 |
CENTERLOCK NUT - Call your local BRP dealership |
| 9 |
291003301 |
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership This part replaces 291003016. |
| 10 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 11 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 12 |
291003015 |
Protector |
| 13 |
269800136 |
SCREW - Call your local BRP dealership |
| 15 |
269800365 |
Locking HandleBar This part replaces 269800039. |
| 16 |
269800399 |
CATCHER CASING - Call your local BRP dealership This part replaces 269800007. |
| 17 |
269800058 |
CATCH ROLLER, LARGE - Call your local BRP dealership |
| 18 |
269800159 |
Hexagonal Bolt 3/8 X 7 1/2 |
| 19 |
269800088 |
Hexagonal Bolt 3/8 X 5 |
| 20 |
269800316 |
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106. |
| 21 |
269800089 |
WASHER 7/16 - Call your local BRP dealership |
| 22 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 23 |
269800009 |
Cable |
| 25 |
269800099 |
HEXAGONAL BOLT 1/4 X 2 1/2 - Call your local BRP dealership |
| 26 |
269800150 |
Washer |
| 27 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership This part replaces 270000825. |
| 31 |
269800003 |
BUMPER - Call your local BRP dealership |
| 32 |
269800157 |
Button Head Screw |
| 33 |
269800150 |
Washer |
| 34 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership This part replaces 270000825. |
| 35 |
291003301 |
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership This part replaces 291003016. |
| 36 |
269800305 |
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership This part replaces 269800005. |
| 37 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 38 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 39 |
262000116 |
WARNING LABEL - Call your local BRP dealership This part replaces 262000015. |
| 40 |
219904008 |
SD DECAL ICATCH - Call your local BRP dealership This part replaces 219903236. |
| 41 |
219904009 |
SD DECAL ADVANCE TECH - Call your local BRP dealership This part replaces 219903237. |
| 42 |
291003301 |
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership This part replaces 291003016. |
| 43 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 44 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 45 |
269800318 |
HEX. CAP BOLT 1/4''-20 X 1'' - Call your local BRP dealership This part replaces 269800187. |
| 46 |
269800150 |
Washer |
| 47 |
269800160 |
Lock Nut |
| 48 |
269800129 |
CLOSED CLAMP - Call your local BRP dealership |
| 49 |
269800136 |
SCREW - Call your local BRP dealership |
| 50 |
269800099 |
HEXAGONAL BOLT 1/4 X 2 1/2 - Call your local BRP dealership |
| 51 |
269800150 |
Washer |
