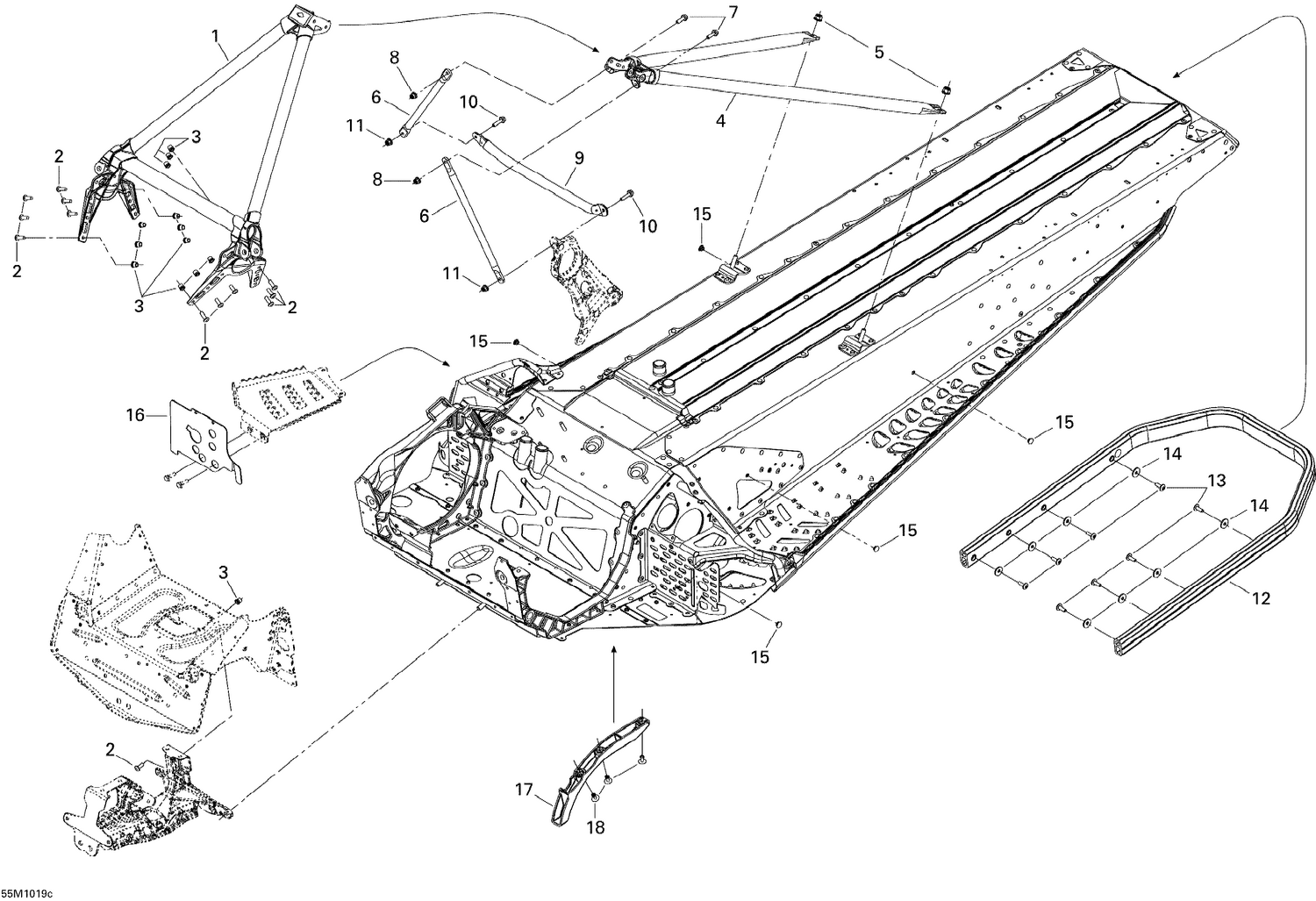

| Ref | Part Number | Description |
|---|
| 1 |
518326970 |
Front Member This part replaces 518325929. |
| 2 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 4 |
518326559 |
Rear Member This part replaces 518325927. |
| 5 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 6 |
518325114 |
Upper Lateral Column Support |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 9 |
518326657 |
Center Column Support This part replaces 518325360. |
| 10 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
518325470 |
REAR BUMPER - Call your local BRP dealership |
| 13 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 14 |
224061201 |
Flat Washer |
| 15 |
293730041 |
Full Moon Dart 8 mm |
| 16 |
518325418 |
HEAT SHIELD - Call your local BRP dealership |
| 17 |
518326973 |
Front Tunnel Protector This part replaces 518324985. |
