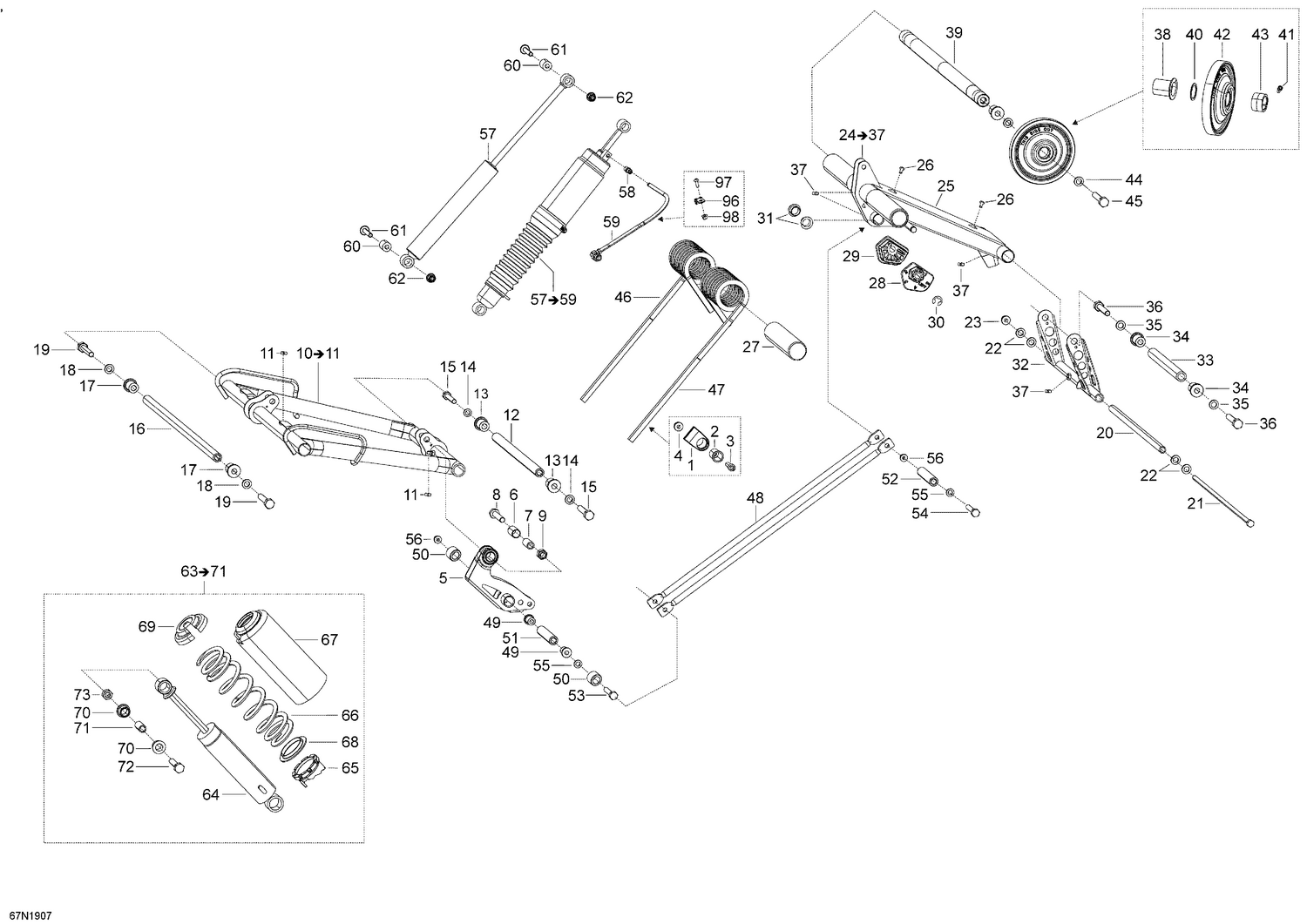

08- Rear Suspension - Upper Section - LE
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 2 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 3 | 205082544 | Socket Head Screw M8 X 25 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503192211 | Rocker |
| 6 | 503193037 | Bushing |
| 7 | 503189282 | Bushing |
| 8 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 9 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 10 | 503193274 | Front Arm Ass'y |
| 12 | 503191390 | Lower Shaft |
| 13 | 503189324 | Bushing |
| 14 | 503192496 | Washer |
| 15 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 16 | 503191391 | Upper Shaft |
| 17 | 503189324 | Bushing |
| 18 | 503189564 | Washer |
| 19 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 20 | 503191396 | Axle Pivot |
| 21 | 503195156 | Bolt 369MM This part replaces 503191397. |
| 22 | 503189157 | Washer |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 25 | 503195402 | Rear Arm Ass'y This part replaces 503191398. |
| 26 | 414644300 | Black, Dart |
| 27 | 503191740 | Plastic Bushing |
| 28 | 503191565 | LH Cam Adjuster |
| 29 | 503191566 | RH Cam Adjuster |
| 30 | 293370013 | E-Circlip |
| 31 | 503191555 | Swivel Bushing |
| 33 | 503192330 | Lower Shaft |
| 34 | 503191640 | Cushion |
| 35 | 503192491 | Washer |
| 36 | 205523554 | Socket Head Screw M12 X 35 |
| 37 | 408200700 | Grease Fitting |
| 38 | 503191451 | Cushion |
| 39 | 503191405 | Upper Shaft |
| 40 | 503190328 | Washer |
| 41 | 206260844 | Socket Set Screw M6 X 8 |
| 42 | 503190803 | Wheel 165 |
| 43 | 503194366 | Retaining Ring |
| 44 | 503192491 | Washer |
| 45 | 250000484 | Socket Screw M12 X 35 |
| 46 | 503192377 | Black RH Square Spring |
| 47 | 503192378 | Black LH Square Spring |
| 48 | 503191765 | Link Rod |
| 49 | 503191555 | Swivel Bushing |
| 51 | 503190643 | Axle Bar (Long) |
| 52 | 503190643 | Axle Bar (Long) |
| 53 | 207089044 | Hex. Screw M8 X 90 |
| 54 | 207089044 | Hex. Screw M8 X 90 |
| 55 | 503189157 | Washer |
| 56 | 233281414 | Hex. Flange Elastic Nut M8 |
| 57 | 503193520 | Rear Shock |
| 60 | 414936000 | Bushing |
| 61 | 207684044 | Hex. Flange Screw M8 X 40 |
| 62 | 233281414 | Hex. Flange Elastic Nut M8 |
| 64 | 503192266 | Center Shock |
| 65 | 505073625 | Adjustment Cam |
| 66 | 503191880 | Black, Spring 242MM |
| 67 | 503193663 | Protector |
| 68 | 503191872 | Spring Guide |
| 69 | 706200881 | Spring Stopper |
| 70 | 503189117 | Urethane Bushing |
| 71 | 503189282 | Bushing |
| 72 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 105 | 503189271 | Bushing |
