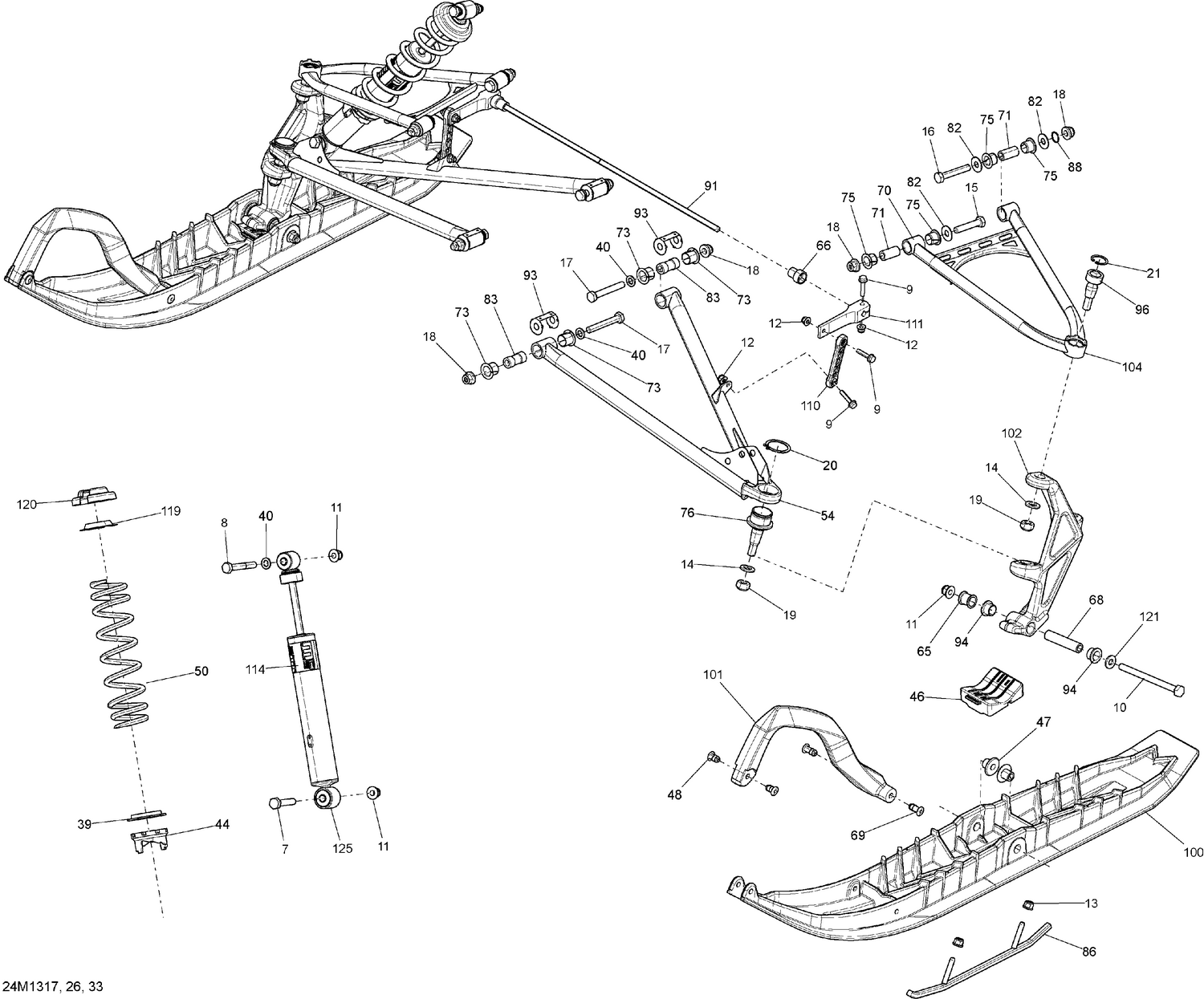

07- Front Suspension And Ski 600 (146)
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 8 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 9 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 10 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003054. |
| 11 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 12 | 233261466 | Hex. Flange Elastic Nut M6 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 503192491 | Washer |
| 15 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 16 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 17 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 18 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 19 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 20 | 293370035 | Circlip |
| 21 | 293370070 | Circlip |
| 40 | 503189564 | Washer |
| 46 | 505072594 | Ski Stopper |
| 54 | 505072497 | Black, RH Lower Arm |
| 54 | 505072498 | Black, LH Lower Arm |
| 65 | 505071999 | Spacer |
| 68 | 506133300 | Spacer |
| 71 | 505072143 | Sleeve |
| 73 | 505072208 | Bushing |
| 75 | 505072250 | Bushing |
| 76 | 505073636 | Ball Joint This part replaces 505072682. |
| 82 | 505072392 | Washer |
| 86 | 860201044 | Carbide Runner Kit (Square Runner) This part replaces 860200141. |
| 88 | 505072448 | O-Ring |
| 93 | 505072634 | Wear Plate |
| 94 | 505072690 | Leg Bushing |
| 96 | 505072913 | Upper Ball Joint |
| 104 | 505073468 | LH Upper Arm 39" This part replaces 505073074. |
| 104 | 505073469 | RH Upper Arm 39" This part replaces 505073076. |
| 119 | 706200785 | Cap |
| 121 | 503192496 | Washer |
