Home / BRP / EVINRUDE / 2000 / 225 / RE225FLSSH FFI, Elec Start, TNT, 20 IN shaft 2000 / 01- Engine

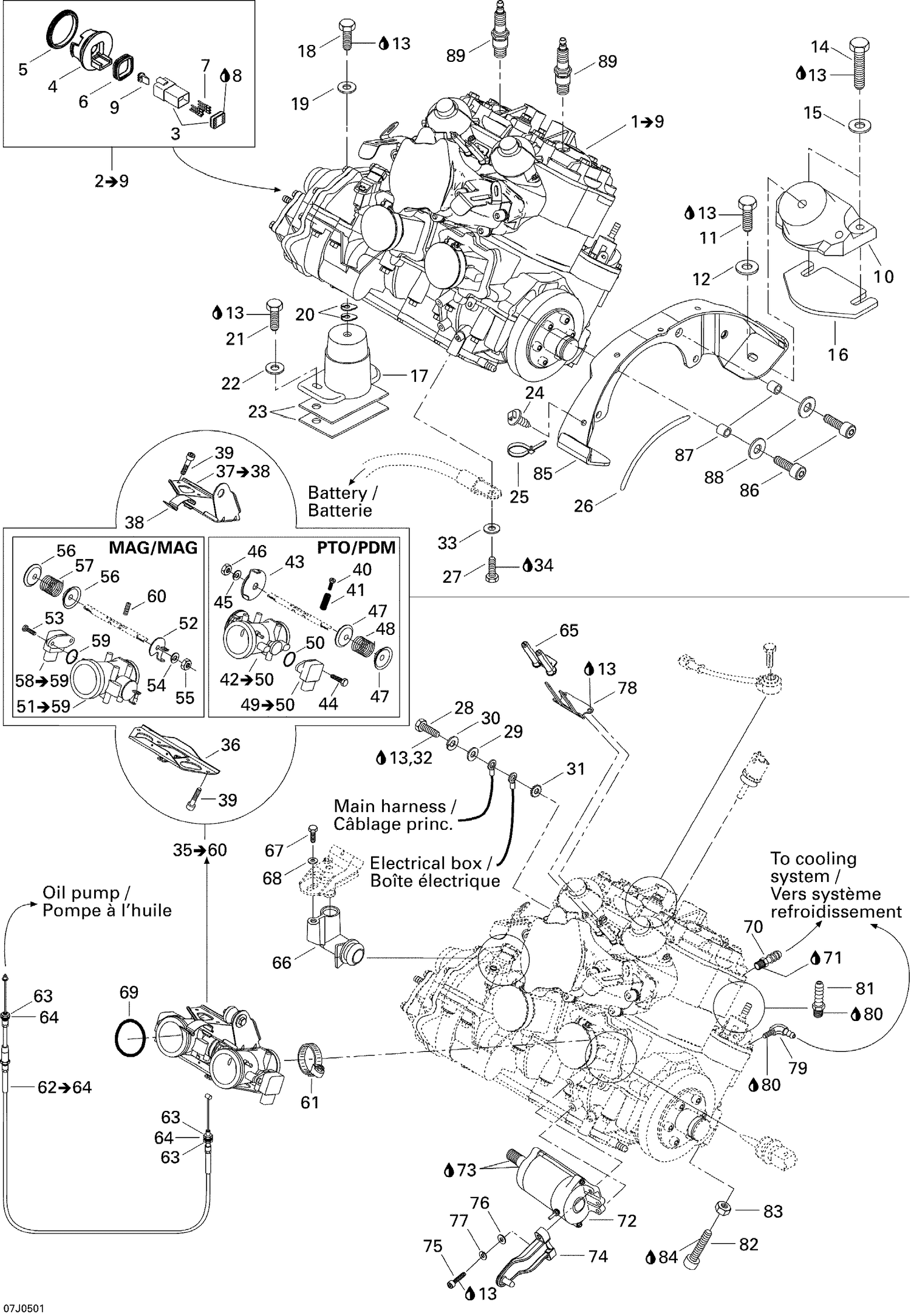

01- Engine

01- Engine

Parts (84)

RefPart NumberDescription
3 710001539 Male Terminal Housing, 6 Circuits This part replaces 270000137.
4 Not Available As Spare Part - Adaptor
5 293300033 Gasket
6 293200055` Gasket
7 278000631 Male Terminal
8 219704453 Was 293550004 Dielectric Grease, 150 g
9 278000735 Female Lock, 6 Circuits
10 270000421 Rubber Mount, Black
11 207181660 Hex. Screw M8 X 16
12 234082600 Flat Washer 8 mm, Stainless
13 293800060 Loctite 243, 10 ml
14 207184060 Hex. Screw M8 X 40
15 234081600 Stainless, Flat Washer 8 mm
16 270000122 Shim 0.3 mm
16 270000123 SHIM 1.3 MM - Call your local BRP dealership
17 270000422 Rubber Mount, Black
18 207182060 HEX. SCREW M8 X 20 - Call your local BRP dealership
19 234082600 Flat Washer 8 mm, Stainless
20 270000024 SHIM 0.4 MM - Call your local BRP dealership
20 270000025 SHIM 1.3 MM - Call your local BRP dealership
21 207184060 Hex. Screw M8 X 40
22 234081600 Stainless, Flat Washer 8 mm
23 0460868 NEEDS DESCRIPTION This part replaces 204250048.
23 204250049 SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.
23 270000122 Shim 0.3 mm
23 270000123 SHIM 1.3 MM - Call your local BRP dealership
24 293730040 Mount Dart This part replaces 293730018.
25 414115200 Tie-Rap 180 mm
26 219704353 Was 271000110 Protection Trim
27 207302060 Hex. Screw M10 X 20, Scotch Grip
28 207162560 Hex. Screw M6 X 25
29 234062600 Flat Washer M6, Stainless
30 234161601 Lock Washer Helical M6
31 234461608 External Serrated Lock Washer 6 mm
32 219700417 SYNTHETIC GREASE, 400 G - Call your local BRP dealership
33 234001600 Flat Washer 10 mm, Stainless
34 219704453 Was 293550004 Dielectric Grease, 150 g
36 270600069 LOWER SUPPORT - Call your local BRP dealership
38 270600073 LATCH BRACKET - Call your local BRP dealership
39 205051060 Socket Head Screw M5 X 10
40 270600074 ADJUSTER SCREW - Call your local BRP dealership
41 270600075 Spring
43 270600077 Throttle Lever Ass'y
44 270600078 POTENTIOMETER SCREW M4 - Call your local BRP dealership
45 234161601 Lock Washer Helical M6
46 232061600 Hex. Nut M6
47 270600079 GUIDE SPRING - Call your local BRP dealership
48 270600080 Spring
50 270000544 O-Ring
52 270600082 Pick-Up Lever
53 270600078 POTENTIOMETER SCREW M4 - Call your local BRP dealership
54 234161601 Lock Washer Helical M6
55 232061600 Hex. Nut M6
56 270600079 GUIDE SPRING - Call your local BRP dealership
57 270600083 Spring
59 270000544 O-Ring
60 270600084 IDLE SCREW - Call your local BRP dealership
61 293650079 Norma Clamp
63 232160600 Hex. Nut M6
64 234061600 Stainless Flat Washer M6
65 278001512 INSULATOR - Call your local BRP dealership
66 270600019 VALVE ADAPTOR - Call your local BRP dealership
67 243041660 HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
68 211200035 Flat Washer
69 293250065 O-Ring
70 293710066 MALE CONNECTOR - Call your local BRP dealership
71 219704454 Was 293800013 Loctite 56765
72 278001937 Starter Ass'y, Black
73 293550010 Synthetic Grease, 400 G
74 273000227 AIR SILENCER SUPPORT - Call your local BRP dealership
75 205063560 Socket Head Screw M6 X 35
76 234061600 Stainless Flat Washer M6
77 234161601 Lock Washer Helical M6
78 278001662 GROUND PLATE - Call your local BRP dealership
79 293700016 Elbow Fitting
80 219704454 Was 293800013 Loctite 56765
81 293710082 STRAIGHT FITTING - Call your local BRP dealership
82 205003060 Socket Screw M10 X 30
83 232001600 HEX. NUT M10 - Call your local BRP dealership
84 293800005 Loctite 271, 10 ml
85 270000515 Engine Support, Black
86 205582560 Socket Head Screw M8 X 25, Scotch Grip
87 270000453 BUSHING - Call your local BRP dealership
88 234081600 Stainless, Flat Washer 8 mm
