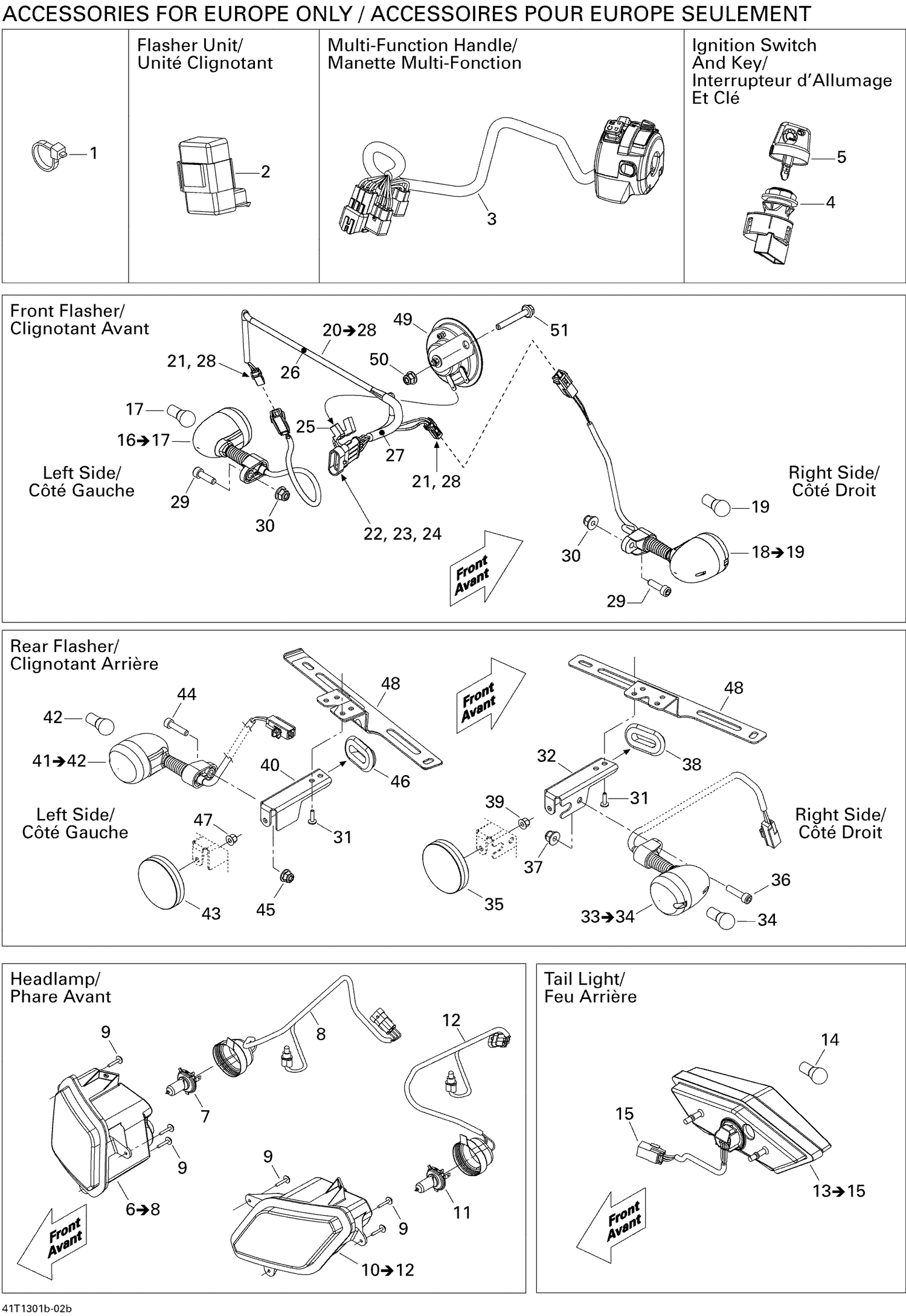

10- Electrical Accessories 2
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293750008 | Tie Wrap 368 mm |
| 2 | 710003239 | Flasher Unit This part replaces 710002393. |
| 3 | 710004040 | Multi-Function Handle This part replaces 710003037. |
| 4 | 710002324 | Ignition Switch |
| 5 | 710000817 | Black, Electronic Key |
| 7 | 710000871 | Bulb, 12V 35/35W |
| 8 | 710000923 | Headlamp Harness |
| 9 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 11 | 710000871 | Bulb, 12V 35/35W |
| 12 | 710000923 | Headlamp Harness |
| 14 | 520000758 | Bulb |
| 15 | 515175494 | Male Housing, 3 Circuits |
| 17 | 415129258 | BULB - Call your local BRP dealership |
| 19 | 415129258 | BULB - Call your local BRP dealership |
| 21 | 515175231 | Female Terminal |
| 22 | 409012900 | Male Terminal |
| 23 | 710000576 | HOUSING, 4CIRCUITS - Call your local BRP dealership |
| 24 | 278001013 | Wire Seal |
| 25 | 409010300 | Female Terminal |
| 26 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 27 | 219704399 | Was 409901700 Tubing (9 mm) |
| 28 | 515176296 | Female Terminal Housing, 2 Circuits |
| 29 | 205062544 | Socket Head Screw M6 X 25 |
| 30 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 31 | 390402400 | Pop Rivet 3/16" |
| 32 | 710001329 | BRACKET - Call your local BRP dealership |
| 34 | 415129258 | BULB - Call your local BRP dealership |
| 35 | 705011221 | Red Reflector This part replaces 705002408. |
| 36 | 205062044 | Socket Head Screw M6 X 20 |
| 37 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 38 | 705003668 | Oblong Grommet |
| 39 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 40 | 710001330 | BRACKET - Call your local BRP dealership |
| 42 | 415129258 | BULB - Call your local BRP dealership |
| 43 | 705011221 | Red Reflector This part replaces 705002408. |
| 44 | 205062044 | Socket Head Screw M6 X 20 |
| 45 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 46 | 705003668 | Oblong Grommet |
| 47 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 48 | 710001241 | BRACKET - Call your local BRP dealership |
| 49 | 710004791 | Horn This part replaces 710000983. |
| 50 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
