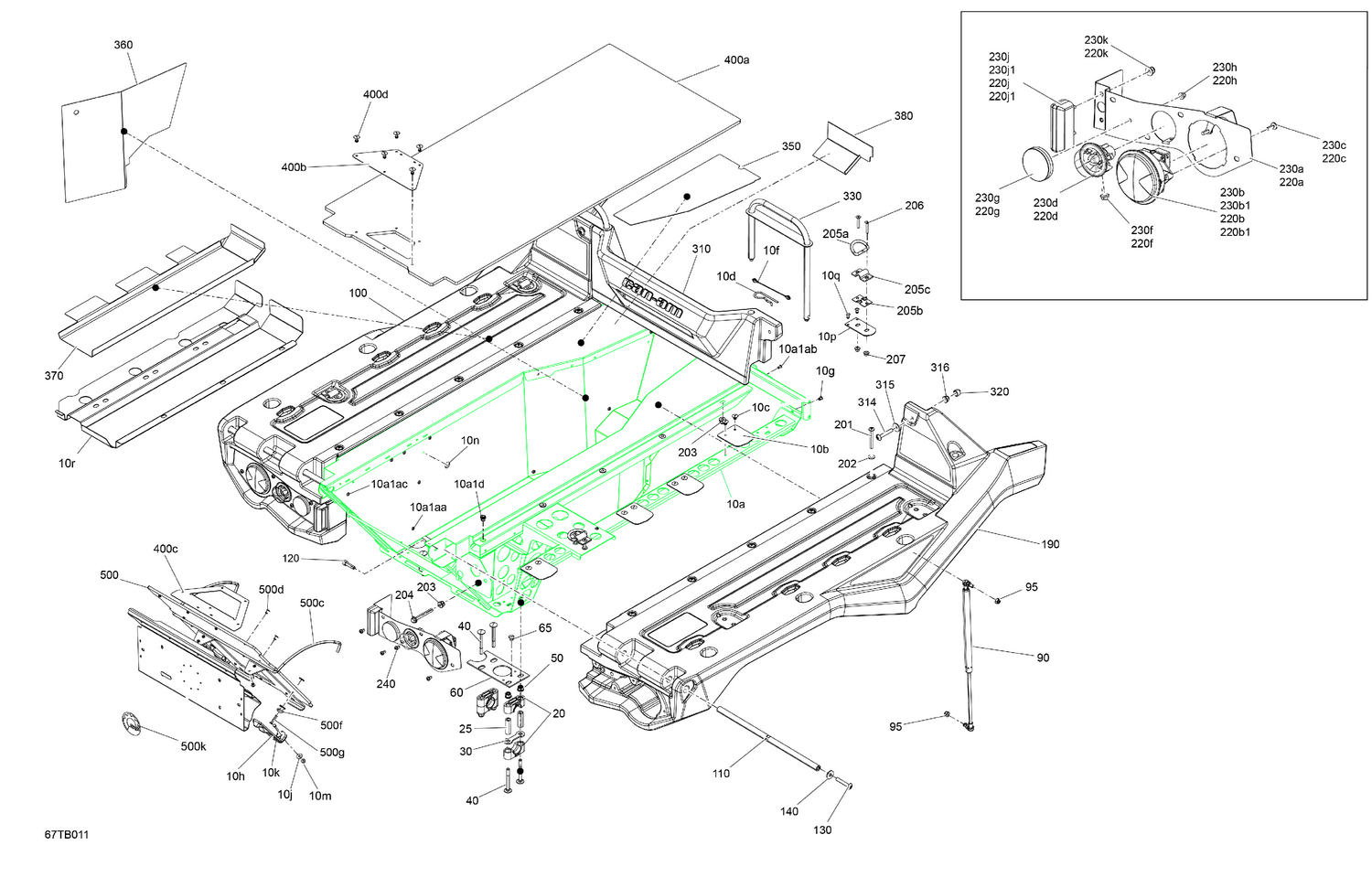

07- Body - Cargo Platform
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 10a1aa | 390909200 | Avex Rivet |
| 10a1ab | 390909100 | Avex Rivet |
| 10a1ac | 390909200 | Avex Rivet |
| 10a1d | 605636002 | Clinch Nut Hexsert M8 |
| 10b | 708301095 | Linq Hole Filler |
| 10c | 293150103 | Pop Rivet 3/16" |
| 10d | 505073670 | Cotter Spring |
| 10f | 293750069 | Retainer Cable |
| 10g | 293150144 | Stavex Rivet |
| 10h | 5342952 | Hood Latch |
| 10j | 234052450 | Flat Washer |
| 10k | 207652044 | Hex.Flange Screw M5 X 20 |
| 10m | 233251434 | Flange Elastic Nut M5 |
| 10n | 414644300 | Black, Dart |
| 10p | 705203824 | Lashing Rings Support |
| 10q | 390909100 | Avex Rivet |
| 10r | 707601725 | Upper Heat Shield Wide |
| 20 | 506150400 | Housing Half |
| 25 | 506150500 | Housing Bushing |
| 30 | 506150600 | Stopper Plate |
| 40 | 207787044 | Carriage Bolt M8 X 70 |
| 50 | 233281414 | Hex. Flange Elastic Nut M8 |
| 60 | 705203836 | Cargo Box Hinges Reinforcement Plate |
| 65 | 293150103 | Pop Rivet 3/16" |
| 90 | 708301058 | Cargo Box Gas Shock |
| 95 | 232581414 | Hex. Elastic Stop Nut M8 |
| 100 | 708303737 | Black, LH Side Platform |
| 110 | 708300935 | Hinge Axis |
| 120 | 205083044 | Socket Head Screw M8 X 30 |
| 130 | 250000761 | Torx Truss Screw M8 X 50 |
| 140 | 234082670 | Stainless Steel Flat Washer |
| 190 | 708303738 | Black, RH Side Platform |
| 201 | 205484056 | Torx Truss M/S M8 X 40 |
| 202 | 503192494 | Washer |
| 203 | 233281414 | Hex. Flange Elastic Nut M8 |
| 204 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 205a | 708302990 | D-Ring |
| 205b | 708302991 | Tie-Down Ring Spring |
| 205c | 708302992 | Tie-Down Ring Bracket |
| 206 | 250001078 | Socket Screw M6 X 35 |
| 207 | 233061414 | Hex. Flange Nut M6 |
| 220a | 605356527 | LH Tail Light Plate |
| 220b1 | 520000758 | Bulb |
| 220c | 250000720 | Torx Screw K50 X 16 |
| 220d | 710002964 | Flasher |
| 220f | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 220g | 705011221 | Red Reflector |
| 220h | 233251434 | Flange Elastic Nut M5 |
| 220j1 | 219800128 | Bulb |
| 220k | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 230a | 605356528 | RH Tail Light Plate |
| 230b1 | 520000758 | Bulb |
| 230c | 250000720 | Torx Screw K50 X 16 |
| 230d | 710002964 | Flasher |
| 230f | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 230g | 705011221 | Red Reflector |
| 230h | 233251434 | Flange Elastic Nut M5 |
| 230j1 | 219800128 | Bulb |
| 230k | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 240 | 250000767 | Torx Truss Screw M6 X 12 |
| 310 | 708303740 | Black, Front Panel |
| 314 | 250000761 | Torx Truss Screw M8 X 50 |
| 315 | 234082670 | Stainless Steel Flat Washer |
| 316 | 233281414 | Hex. Flange Elastic Nut M8 |
| 320 | 28056 | Cover |
| 330 | 708300939 | Locking Handle Weld |
| 350 | 708301336 | Bed Heat Shield On Top |
| 360 | 708301337 | Bed Heat Shield On Side |
| 370 | 708301338 | Side Heat Shield |
| 380 | 708302168 | Heat Shield |
| 400a | 708300959 | Middle Deck |
| 400b | 708301262 | Filler Plate |
| 400c | 708301263 | Handle Plate |
| 400d | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 500c | 708301213 | Limiter Rail |
| 500d | 390909100 | Avex Rivet |
| 500f | 605449087 | Counter Roller |
| 500g | 293150212 | Rivet |
