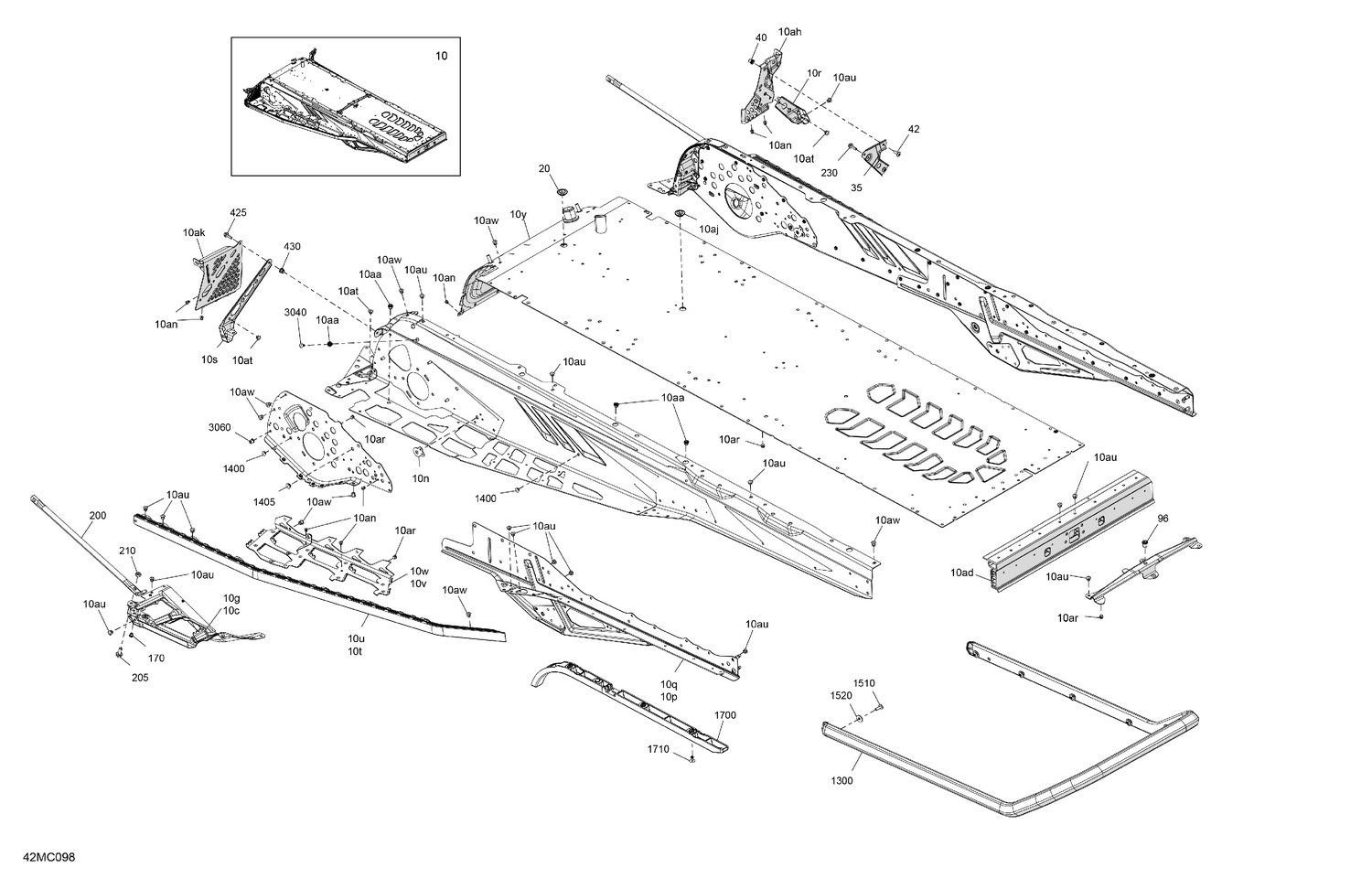

06- Frame - System - Rear Section
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 10ad | 518332315 | Rear Cap |
| 10ah | 518331822 | RH Footrest |
| 10aj | 293730052 | Black, Plug |
| 10ak | 518332978 | LH Footrest |
| 10an | 293150203 | Rivet Avibulb 3/16 |
| 10ar | 293150245 | Henrob Rivet |
| 10at | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 10au | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10aw | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10c | 518332803 | Deep Black, RH Footrest Reinforcement |
| 10g | 518332802 | Deep Black, LH Footrest Reinforcement |
| 10n | 518335959 | Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10p | 518333792 | RH Rear Suspension Support |
| 10q | 518333791 | LH Rear Suspension Support |
| 10r | 518329789 | RH Footrest Reinforcement |
| 10s | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10t | 518329648 | RH Roller |
| 10u | 518328452 | LH Roller |
| 10v | 518329646 | RH Tunnel Liner |
| 10w | 518329647 | LH Tunnel Liner |
| 10y | 518332622 | Radiator Tunnel Ass'y 154 |
| 20 | 293730052 | Black, Plug |
| 35 | 518331727 | RH Stirrup Reinforcement |
| 40 | 293450275 | Insert |
| 42 | 250000717 | Torx Head Screw M6 X 16 |
| 96 | 293450275 | Insert |
| 170 | 293450267 | Insert M5 - 0.8 |
| 200 | 518332541 | Lateral Reinforcement |
| 205 | 207682044 | Hex. Flange Screw M8 X 20 |
| 210 | 232081414 | Hex. Nut M8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300 | 518331043 | Rear Bumper |
| 1400 | 293730041 | Full Moon Dart 8 mm |
| 1405 | 293730059 | Full Moon Dart 10 mm |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
| 1700 | 518329982 | Front Protector |
| 1710 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3040 | 293730079 | Dart |
