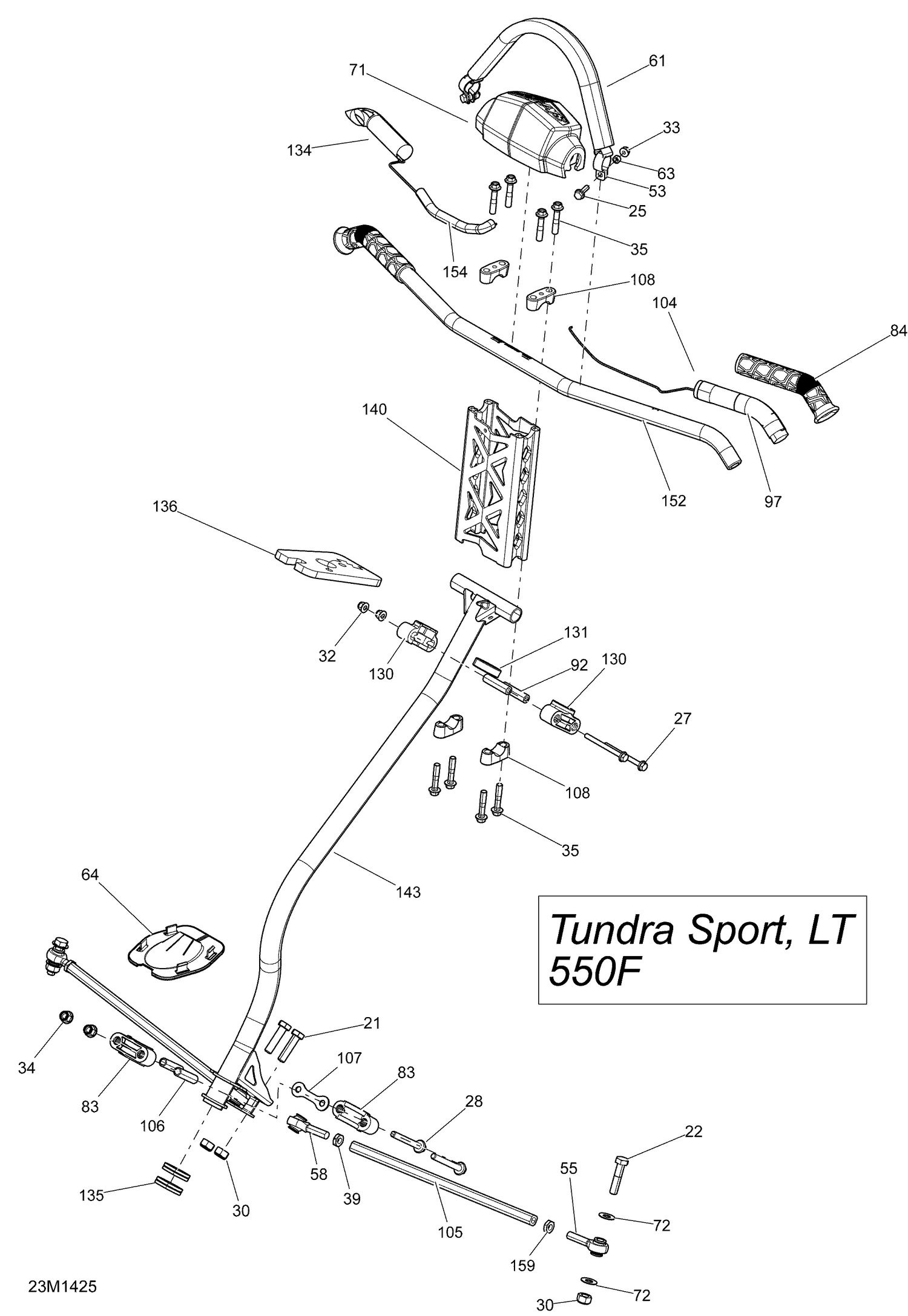

07- Steering
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 22 | 207004544 | Hex. Screw M10 X 45 |
| 25 | 207662084 | Hex. Flange Screw M6 X 20 |
| 27 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 28 | 207686534 | Hex. Flange Screw M8 x 65 |
| 30 | 233601466 | Elastic Locking Nut M10 |
| 32 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 33 | 233261494 | Hex. Flange Elastic Nut M6 |
| 34 | 233281414 | Hex. Flange Elastic Nut M8 |
| 35 | 250000352 | Hex. Flange Screw M8 X 40 |
| 39 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 53 | 506152536 | Black Support Plate |
| 55 | 506152019 | RH Threaded Ball Joint |
| 58 | 506152081 | LH Thread Ball Joint |
| 61 | 506152115 | Strap Ass'y |
| 63 | 506152156 | Bushing |
| 64 | XXX | Not Available As Spare Parts |
| 71 | 506152192 | Steering Pad |
| 72 | 506152582 | Washer |
| 83 | 506152217 | Lower Half-Housing |
| 84 | 506152486 | Grip |
| 92 | 506152297 | Housing Bushing |
| 97 | 506152611 | Isolant |
| 104 | 506152578 | Heating Element 20 WATT |
| 105 | 506152377 | ROD_LINK - Call your local BRP dealership |
| 106 | 506152388 | Lower Housing Bushing |
| 107 | 506152389 | Stopper Plate |
| 108 | 506152751 | Steering Support This part replaces 506152395. |
| 130 | 506152508 | Upper Half-Housing |
| 131 | 506152509 | Upper Anti-Vibration Gasket |
| 134 | 506152579 | HEATING ELEMENT 20 WATT - Call your local BRP dealership |
| 135 | 506152518 | Lower Vibration Ring |
| 136 | 506152521 | Bushing |
| 140 | 860200821 | Extension Kit ( 205mm ) |
| 143 | 506152963 | Steering Column This part replaces 506152586. |
| 152 | 506152710 | BLACK HANDLE BAR - Call your local BRP dealership |
| 154 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
