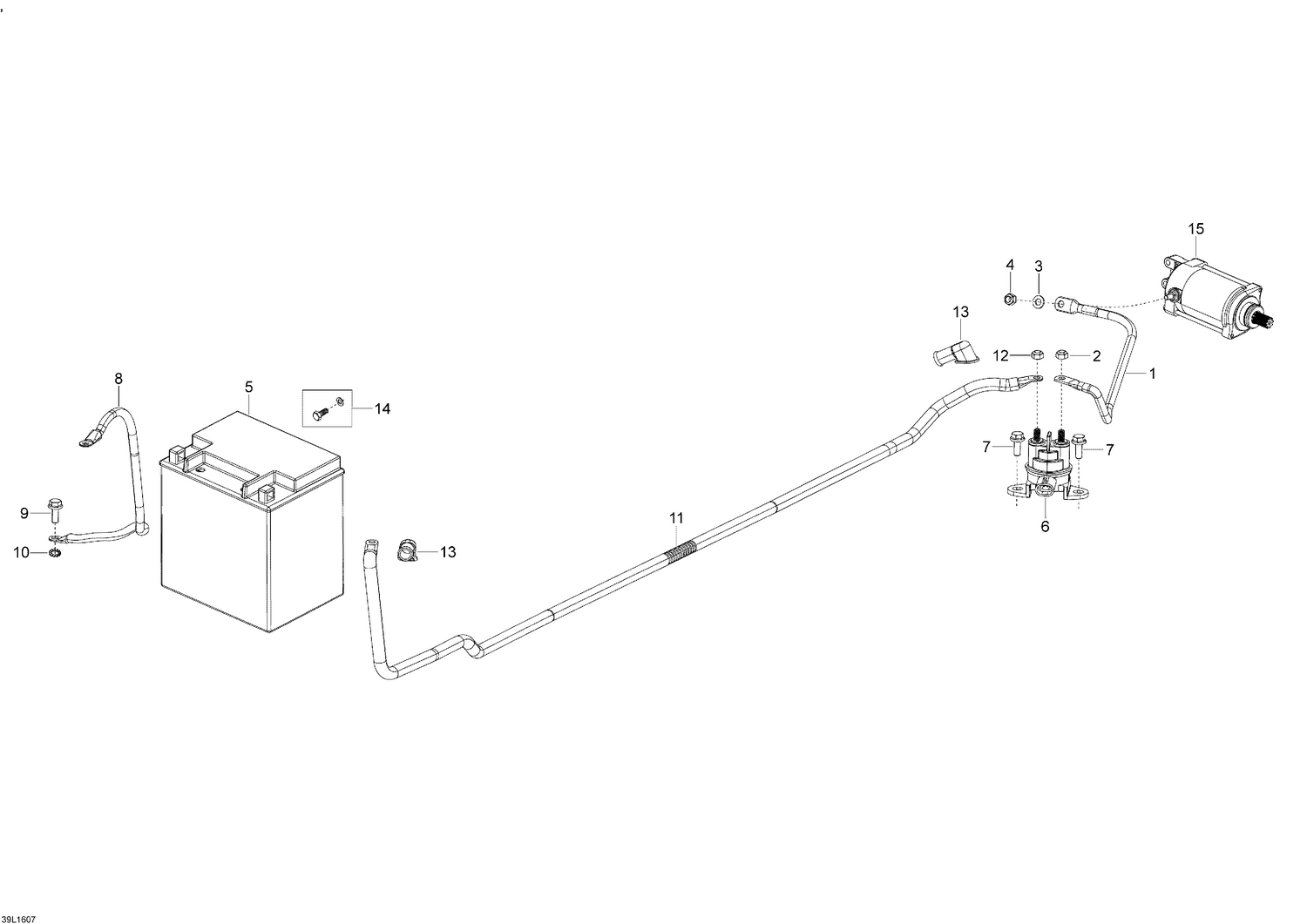

10- Battery And Electric Starter
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176779 | Start Cable |
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 515176151 | Battery YUASA YIX30L |
| 6 | 278003012 | Starter Relay |
| 7 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 8 | 515176777 | Ground Cable |
| 9 | 207661644 | Hex. Flange Screw M6 X 16 |
| 10 | 250200041 | Serrated Lock Washer |
| 11 | 515176778 | BATTERY WIRE - Call your local BRP dealership |
| 12 | 232561434 | Elastic Stop Nut M6 |
| 13 | 710000495 | Protector Cap |
| 14 | 250000282 | Battery Bolt Kit |
