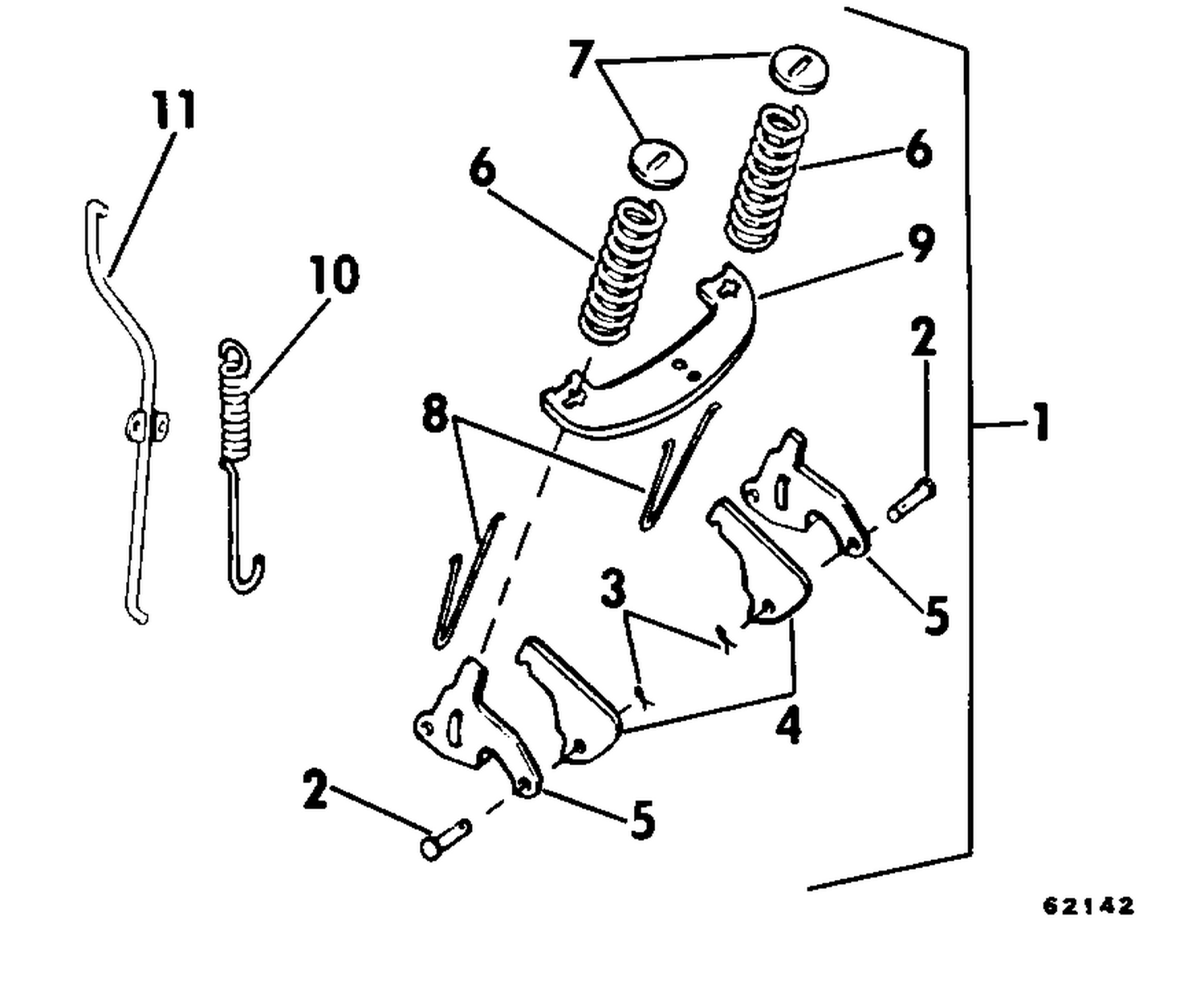

TILT AID KIT 55 (SPRING)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0172912 | PLATE ASSY |
| 2 | 0315962 | GOUPILLE, tringlerie vers levier |
| 3 | 0302858 | GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 4 | 0333871 | LEVER, Locking This part replaces 0315963. |
| 5 | 0315964 | LINK, Reverse lock |
| 6 | 0313817 | RESSORT, verrouillage de marche arrière |
| 7 | 0314007 | CUP, Reverse lock spring |
| 8 | 0315965 | DISPOSITIF DE RETENUE, ressort |
| 9 | 0321234 | PLAQUE, verrouillage de marche arrière |
| 10 | 0321426 | SPRING, Reverse lock |
| 0172909 | 0172909 | TILT AID KIT |
